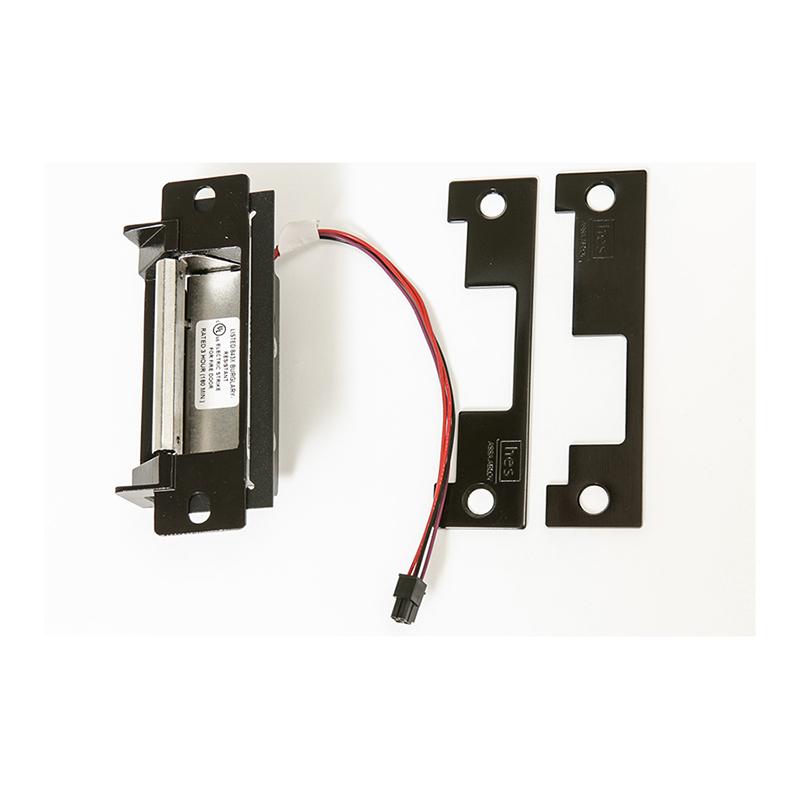

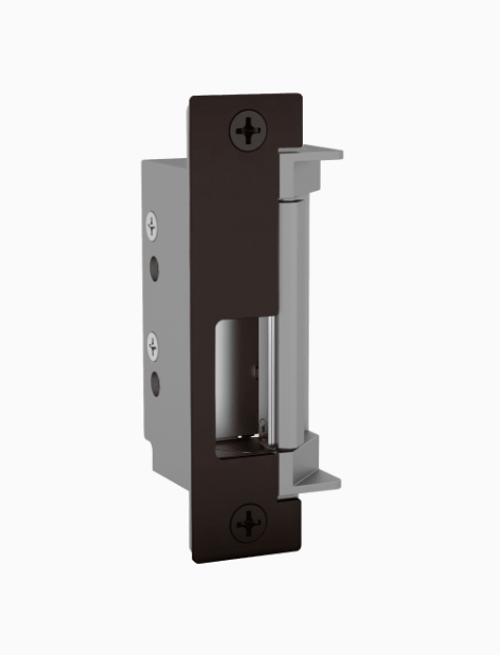

HES 4500C-613E Series Electric Strike Complete Pac

Product Description

The HES 4500C-613E series electric strike is a reliable choice for installations in two inch UL 10C fire rated frames. It has a maximum drywall penetration of half an inch and a low profile depth of one and three eighths inches. The construction uses heavy-duty stainless steel, providing durability and strength. The unique keeper pin locking design enhances the strike's security. This model can accommodate both cylindrical and mortise locksets with latchbolts up to three fourths of an inch.

• Stainless steel construction for durability
• Tamper resistant for added security
• Static strength of 1,500 lbs and dynamic strength of 100 ft-lbs

Product Highlights

This electric strike is built to withstand heavy use with an endurance rating of one million cycles.

Product Information

Standard Information

• Voltage: 12/24
• Lock Type: Cylindrical Lock, Mortise Lock

Technical Specifications

• Adjustability: Horizontal
• Monitoring Installation: Factory Configured
• Monitoring Options: Latchbolt Monitoring, Latchbolt Strike Monitor
• Latchbolt Accommodation: Up to 3/4 inches
• Fire Rated: Yes
• Outdoor Rated: No
• Operating Voltage: 12/24 VDC
• AMP Draw: 0.24 at 12V, 0.12 at 24V
• Faceplate Size: 4-7/8 inches x 1-1/4 inches
• Frame Application: Suitable for metal or wood frames
• Finish: 613/US10B Dark Oxidized Satin Bronze Oil Rubbed
• Pack Quantity: 1
