HES 1600CS-630 Complete Pac for Latchbolt & Deadbolt Locks 12/24 VDC

Product Description

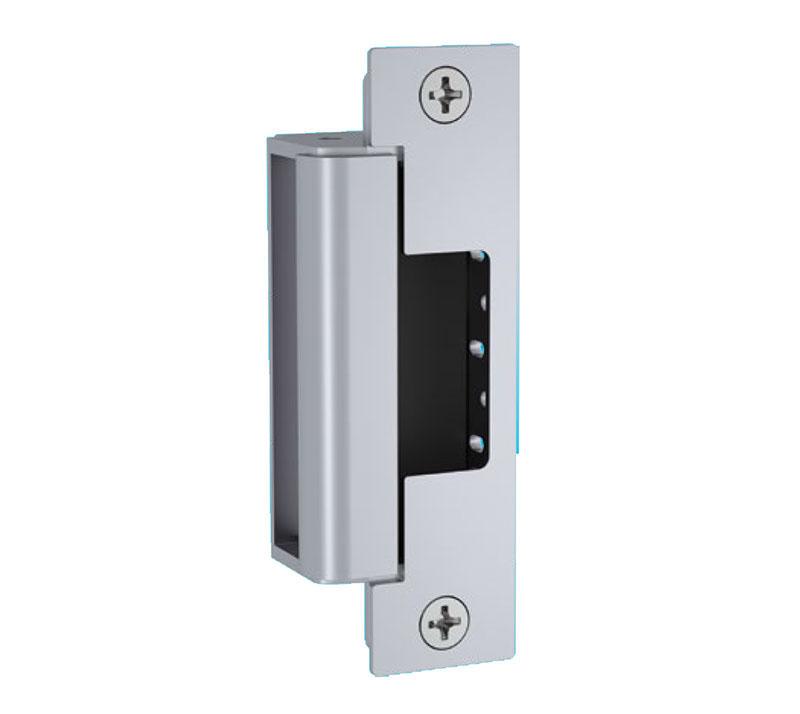

The HES 1600CS Complete Pac Electric Strike, MPN 1600CS-630, is designed for latchbolt and deadbolt locks. It is compatible with both cylindrical and mortise locks. The device can accommodate a one inch deadbolt and provides enhanced vertical cavity spacing. This unit is also Power over Ethernet friendly.

• Compatible with any cylindrical or mortise lock.
• Accommodates up to a one inch deadbolt with enhanced vertical cavity spacing.
• Includes eight faceplates for latchbolts and deadbolts.

Product Highlights

The HES 1600CS-630 offers flexibility with its field-configurable options and multiple faceplate styles suitable for various installations.

Product Information

Standard Information

• Brand: HES Hardware - Assa Abloy
• Part Number: HES 1600CS-12/24D-630

Technical Specifications

• Finish: Satin
• Material: Metal, Stainless Steel
• Shape: Rectangular
• Item Package Quantity: 1
• Number Of Pieces: 8
• Special Features: Keyless
• Depth: 1-5/8 inches (41.3 mm)
• Width: 1-1/4 inches (31.8 mm)
• Height: 4-7/8 inches (123.4 mm)
• Shim Height: 3-3/8 inches (85.7 mm)
• Lip Extension: 1/2 inches (12.7 mm)
• Distance between Mounting Holes: 4-1/8 inches (105 mm)
• Static Strength: 1,500 lbs
• Dynamic Strength: 70 ft-lbs
• Handing: Non-handed
• Frame Application: For hollow metal, concrete-filled metal, aluminum, and wood doors
• Operating Mode: Fail Secure and Fail Safe options available.
• Electrical (DC Continuous Duty): Dual voltage 12/24 VDC/VAC
• Certification: Surpasses BHMA/ANSI Grade 1 requirements.
