HES 1006CLB-630-LBM Complete Pac for Latchbolt Locks Dual Voltage (12/24 VDC)

Product Description

The HES 1006CLB-630-LBM is designed for latchbolt locks. This electric strike works with cylindrical and mortise locksets. It fits ANSI four and seven-eighths inch strike plates and supports a three-quarter inch latchbolt. It features a dual interlocking plunger and is built from stainless steel.

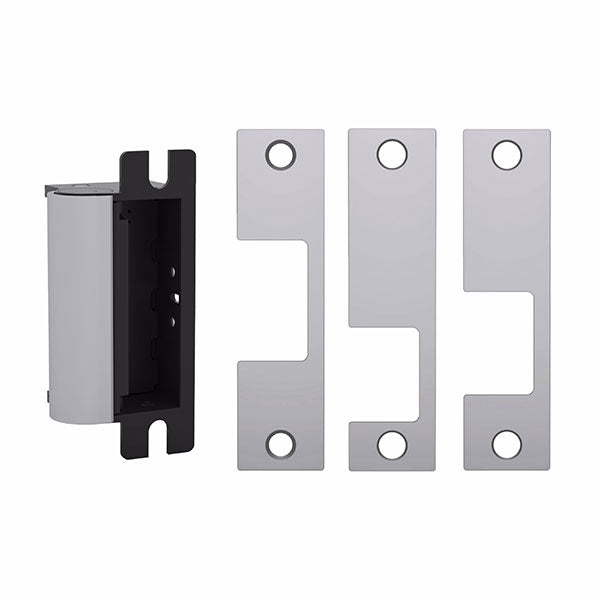

• Includes strike body, faceplates, and mounting hardware
• Designed for heavy-duty use
• Complies with ANSI/BHMA standards

Product Highlights

The electric strike maintains tamper resistance and can be used in various locking systems, making it ideal for securing doors effectively.

Product Information

Standard Information

• Weight: 1.87 lbs
• Dimensions: 10 x 3.5 x 2 inches

Technical Specifications

• Static Strength: 2,500 lbs
• Dynamic Strength: 350 ft-lbs (fail secure)
• Endurance: 1 million cycles
• Voltage: Dual voltage 240 mA at 12 VDC, 120 mA at 24 VDC
• ANSI/BHMA Standard: ANSI/BHMA A156.31, Grade 1
• Usage: Heavy Duty
• Fire Rating: UL 10C, 3 hour fire-rated
• Lock Type Compatibility: Cylindrical Lock, Mortise Lock, Mortise Lock with Deadbolt
• Buy American Act Compliance: Meets BAA
