HES 1006CDB-630 Electric Strike for Deadbolt Locks

Product Description

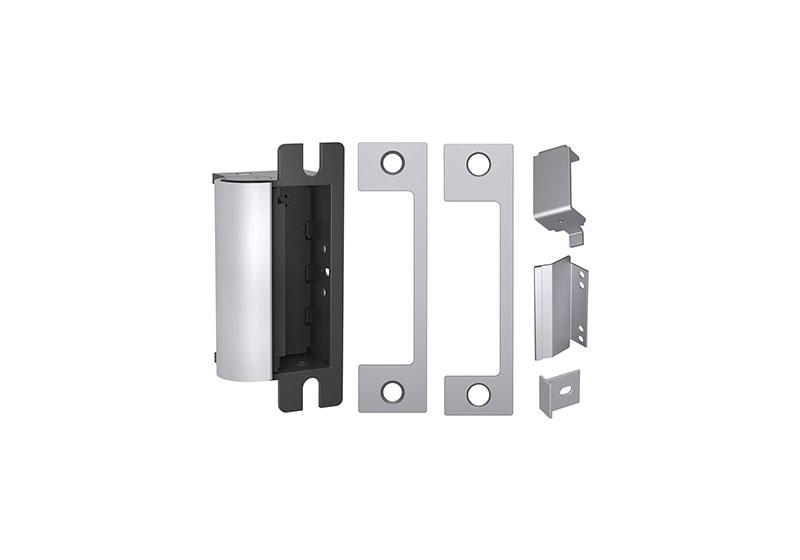

The HES 1006CDB-630 is an electric strike designed for deadbolt locksets. It is suitable for both cylindrical and mortise locks with ANSI four and seven eighths inches strike plates accommodating a deadbolt up to one inch. This product features a dual interlocking plunger design made from heavy duty stainless steel, ensuring durability and reliability.

• Accommodates multiple lock types and sizes.
• Exceeds all industry standards for electric strikes.
• Includes necessary mounting hardware for easy installation.

Product Highlights

This electric strike is built with functionality in mind. It offers the ability to be fail secure or fail safe depending on your needs, providing versatility in various security applications.

Product Information

Standard Information

• Finish: 630 Satin Stainless Steel
• Frame Application: Metal or Wood

Technical Specifications

• Electrical Requirements: .45 Amps at 12VDC; .25 Amps at 24VDC continuous duty
• Static Strength: 3070 lbs (fail secure)
• Dynamic Strength: 350 ft-lbs (fail secure)
• Endurance: 1,000,000 cycles
• Voltage Options: 12 or 24VDC continuous duty
• Material: Heavy duty stainless steel
• Dimensions: Depth one and eleven sixteenths inches; Width one and one fourth inches; Height four and seven eighths inches
• Shim Height: three and three eighths inches
• Mounting Hole Distance: four and one eighth inches
• Handing: Non-handed
• Operating Modes: Fail Secure and Fail Safe
• Electrical Duty: Dual voltage 12/24 VDC/VAC
• Certification: Surpasses BHMA/ANSI Grade 1 standards
