HES 1006CAS-630 Complete Electric Strike for Deadbolt Locks

Product Description

The HES 1006CAS-630 is an electric strike designed for the continuous recapture of a one-inch deadbolt. It fits ANSI four to seven-eighths inch strike plates. The unit allows for configurations as fail-secure or fail-safe. It operates on dual voltage supporting twelve or twenty-four volts DC for continuous duty. This product comes complete with the 1006 strike body, N, ND, and NM faceplates, alongside all necessary mounting hardware.

• Complete electric strike for continuous recapture of a one-inch deadbolt

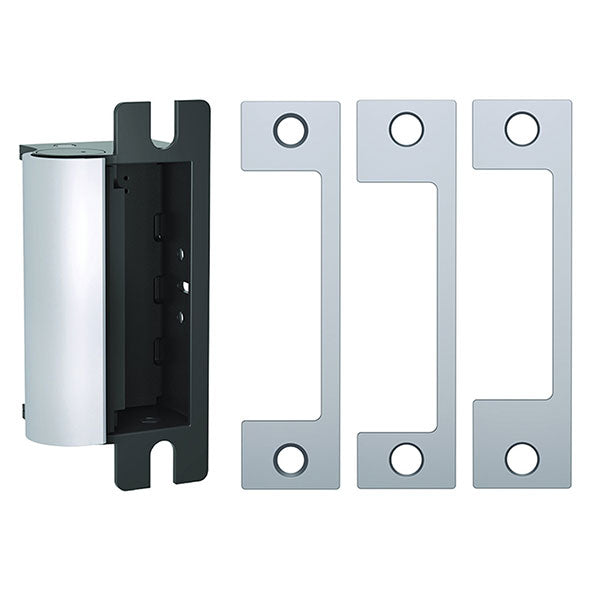

• Includes the 1006 strike body and three faceplates (ND, NM, N)
• Supports dual voltage options of 12 or 24VDC

Product Highlights

The HES 1006CAS-630 is suitable for heavy-duty applications and complies with strict fire safety regulations.

Product Information

Standard Information

• Brand: HES
• Finish: 630 Satin Stainless Steel

Technical Specifications

• ANSI/BHMA Standard: ANSI/BHMA A156.31, Grade 1
• Usage: Heavy Duty
• Fire Rating: UL 10C, 3 hour fire-rated
• Voltage: Dual voltage 12 or 24 VAC/VDC
• Lock Type Compatibility: Mortise Lock with Deadbolt
• Buy American Act Compliance: Meets BAA compliance
