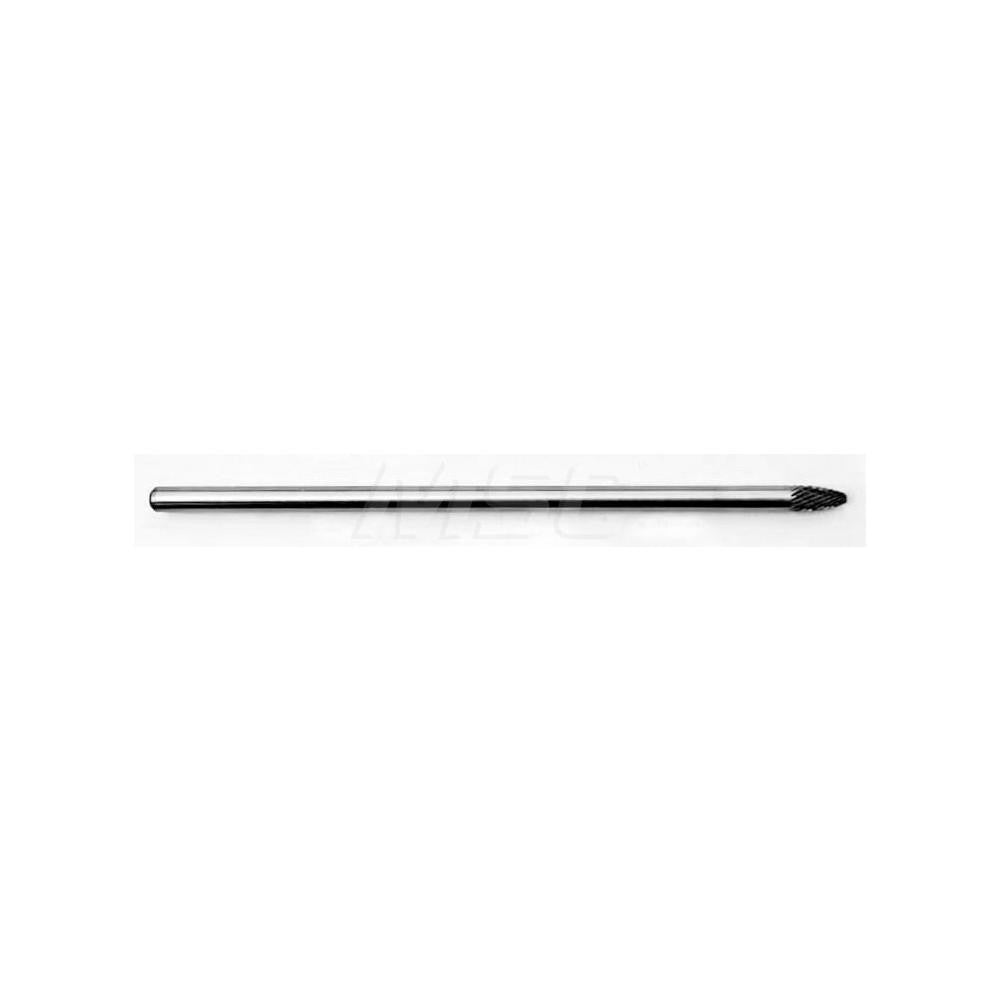

Hertel SZ2035TB Abrasive Bur Taper Double Cut 1/4 in

Product Description

The HERTEL SZ2035TB is a solid carbide abrasive bur with a taper and radius end geometry, built for precision material removal in metalworking, tool and die, and fabrication applications. Conforming to industry specification SL-1L6, it features a double cut tooth style that delivers fast stock removal while producing a smoother surface finish than single cut. The 1/4 inch shank mounts directly into standard die grinders and rotary tools. The uncoated solid carbide head provides rigidity and heat resistance suited to ferrous and non-ferrous materials. Overall length is 6 inches, keeping the tool manageable in confined areas without sacrificing reach.

This bur is used by machinists, tool and die makers, welders, and maintenance technicians for deburring, chamfering, porting, and shaping on ferrous metals, non-ferrous metals, and hard plastics. The taper with radius end profile is well suited to contoured surfaces, grooves, and angled entry points where a straight or ball profile would not achieve full contact. The 5/8 inch length of cut concentrates material removal in a controlled zone, making it effective for detail work in mold cavities, weld cleanup, and precision fitting tasks.

Key Features

• Double cut tooth style for fast stock removal and a finer finish than single cut
• Solid carbide head construction for rigidity and wear resistance
• Taper with radius end geometry for contoured and angled surface access
• 1/4 inch shank diameter fits standard die grinders and rotary tool chucks
• 5/8 inch length of cut provides controlled, detail-focused material removal
• Uncoated head — compatible with ferrous and non-ferrous workpiece materials
• Meets industry specification SL-1L6

Compatibility

Designed for use in standard 1/4 inch collet die grinders and rotary tools. Conforms to industry specification SL-1L6 for interchangeability with other SL-1L6-spec carbide burs.

Installation Notes

Installation and use should be performed by qualified machinists or trades personnel familiar with rotary cutting tools. Always ensure the die grinder is powered off and the collet is fully secured before mounting or removing the bur. Use appropriate RPM settings for the workpiece material and bur diameter — exceeding rated spindle speed can cause tool breakage and injury. Eye protection and gloves are required during operation.
