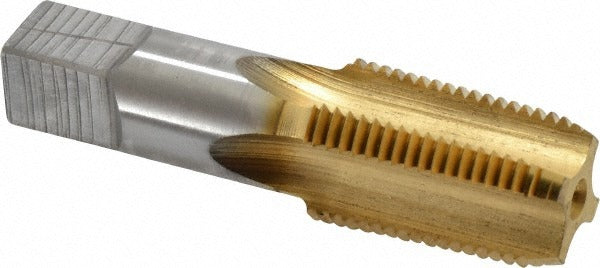

Hertel R837574T-S Pipe Tap 1/2-14 Nptf 4 Flute Tin Hss

Product Description

The HERTEL R837574T-S is a standard pipe tap ground to NPTF thread standards in a 1/2-14 size, designed for cutting tapered pipe threads in ferrous and non-ferrous materials. Built from high speed steel with a titanium nitride (TiN) coating, the tap delivers extended tool life and reduced friction during cutting. The short projection design and 4-flute geometry provide stable chip evacuation in through and blind-hole applications. Machinists, pipefitters, and maintenance technicians use this tap when threading ports, fittings, and pipe connections that require a pressure-tight NPTF seal.

This tap is suited for threading 1/2-14 NPTF pipe thread connections in production and maintenance environments alike. Common applications include creating leak-free threaded ports in hydraulic manifolds, pneumatic housings, plumbing fixtures, and fluid-system components. The NPTF thread form produces a dry-seal thread that does not rely on a sealant to hold pressure, making it a standard choice for compressed air, fuel, and hydraulic plumbing work. The short projection style fits into tight clearances where a longer shank would interfere with fixturing or workpiece geometry.

Key Features

• NPTF thread standard for dry-seal, pressure-tight pipe thread connections
• High speed steel construction provides toughness across a wide range of materials
• TiN coating reduces friction and extends cutting edge life compared to uncoated taps
• 4-flute design promotes stable chip flow and consistent thread form
• Short projection geometry fits restricted-clearance setups
• 1-3/8 inch thread length accommodates standard pipe wall thicknesses

Compatibility

Designed as a standard replacement or production pipe tap for any application requiring a 1/2-14 NPTF thread in compatible materials; fits standard tap holders and machines accepting a 0.6875-inch shank diameter with a 0.5150-inch square drive.

Installation Notes

Installation should be performed by a machinist or qualified maintenance technician using an appropriate tap wrench, drill press, or CNC tapping head. The workpiece hole must be drilled to the correct tap drill size for 1/2-14 NPTF prior to threading. Use a suitable cutting fluid for the material being tapped to protect the cutting edges and improve thread finish. Inspect the tap for wear or chipping regularly, and never force a tap that has bottomed out or encountered unexpected resistance.
