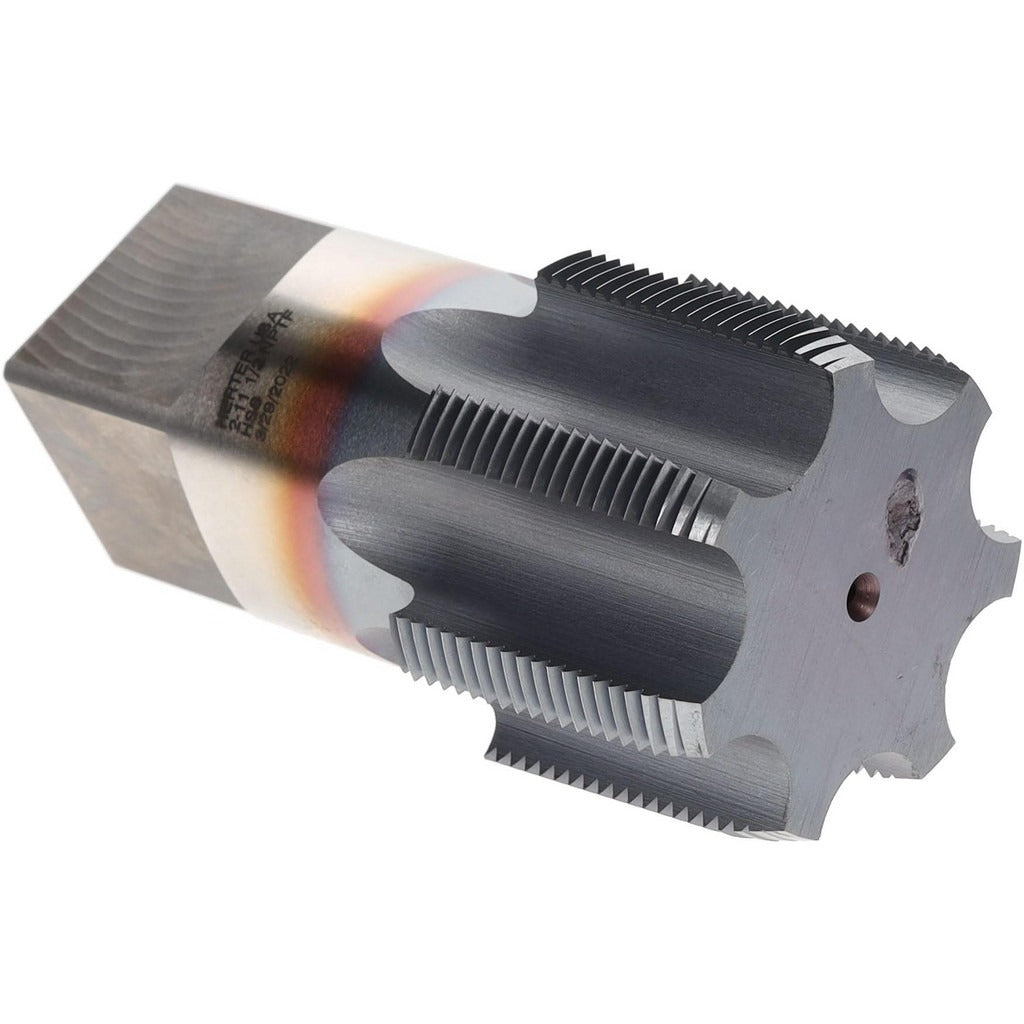

Hertel R128016C Pipe Tap 2-11/2 Nptf 7 Flutes Hss Ticn

Product Description

The HERTEL R128016C is a standard pipe tap designed for cutting National Pipe Taper Fuel (NPTF) threads in metal workpieces. It features 7 flutes and a TiCN (Titanium Carbonitride) coating over a High Speed Steel body. The TiCN finish improves surface hardness and wear resistance, extending tool life in production tapping applications. With a thread size of 2 - 11-1/2 and a thread length of 1.75 inches, this tap produces a tapered pipe thread that creates a pressure-tight seal without requiring additional sealant. It is used by machinists, pipefitters, and maintenance technicians working on hydraulic, pneumatic, or fluid-transfer assemblies.

This tap is suited for threading large-diameter pipe connections in industrial, commercial, and heavy mechanical applications. The 2 - 11-1/2 NPTF thread size is commonly found in high-pressure fluid systems, manifolds, and large-bore pipe fittings. The regular hook geometry and 7-flute design provide stable cutting action in ferrous and non-ferrous materials. A shank diameter of 1.875 inches fits corresponding tap holders and machine spindles used in drill press, CNC, or turret lathe setups.

Key Features

• NPTF thread form produces a pressure-tight, dry-seal pipe thread
• 7-flute design distributes cutting load and improves chip evacuation
• TiCN coating increases surface hardness and reduces tool wear
• High Speed Steel construction handles a wide range of workpiece materials
• 1.875-inch shank diameter fits standard large-bore tap holders
• Regular hook geometry provides controlled cutting action

Compatibility

Designed for use in any machine or hand tapping setup that accepts a 1.875-inch shank tap and requires 2 - 11-1/2 NPTF thread form.

Installation Notes

This tap should be installed and operated by a qualified machinist or pipefitter familiar with pipe thread tapping procedures. Always secure the workpiece fully and use a properly sized tap holder or machine spindle before beginning the tapping operation. Apply appropriate cutting fluid throughout the operation to reduce heat buildup and extend tool life. Inspect the tap for wear or chipping before each use and replace if cutting edges are degraded.
