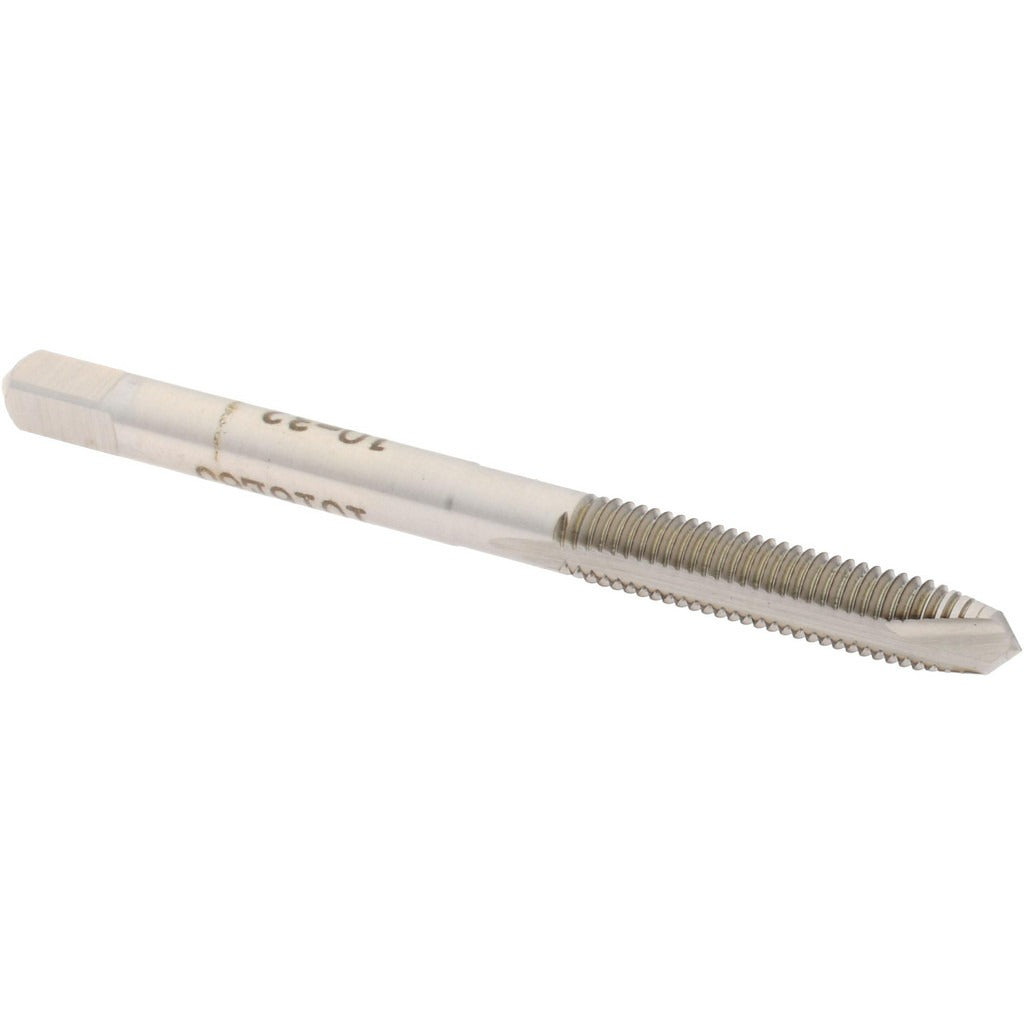

Hertel K011060AS Spiral Point Tap 10-32 Unf Hss

Product Description

The HERTEL K011060AS is a spiral point tap designed for cutting internal threads in through-hole applications. Built from high speed steel with a bright finish, this tap handles 10-32 UNF threads with a plug chamfer that guides the tap into the hole and gradually engages the cutting edges. The spiral point geometry pushes chips forward ahead of the tap, reducing clogging in through-hole work. With a thread length of 0.875 inches and a 2-flute design, it delivers consistent thread form in a compact cutting profile. The H8 thread limit provides a close-tolerance fit appropriate for standard fastener assemblies.

This tap is suited for threading 10-32 UNF through-holes in metalworking, maintenance, and production environments. The plug chamfer makes it a common choice for general-purpose tapping where the tap can pass completely through the workpiece. Right-hand cut orientation matches standard right-hand fastener threads. Typical applications include sheet metal fabrication, machine component assembly, and repair work on threaded fastener holes in ferrous and non-ferrous materials.

Key Features

• Spiral point geometry pushes chips forward, reducing chip packing in through-hole tapping
• High speed steel construction provides durability across a range of common metals
• Plug chamfer with gradual lead-in for standard through-hole threading operations
• H8 thread limit for close-tolerance 10-32 UNF thread production
• Bright finish with no coating, suitable for use with cutting fluids
• Right-hand thread direction for standard fastener compatibility

Compatibility

Designed as a direct-fit spiral point tap for producing 10-32 UNF internal threads in through-hole applications across general machining and maintenance work.

Installation Notes

Installation of this tap requires a properly sized drill press, tapping head, or hand tap wrench rated for the tap size. The workpiece should be securely fixtured before tapping begins. Use an appropriate cutting fluid or tapping compound to extend tool life and improve thread finish. Follow applicable shop safety practices and ensure the tap is aligned perpendicular to the workpiece surface to prevent tap breakage.
