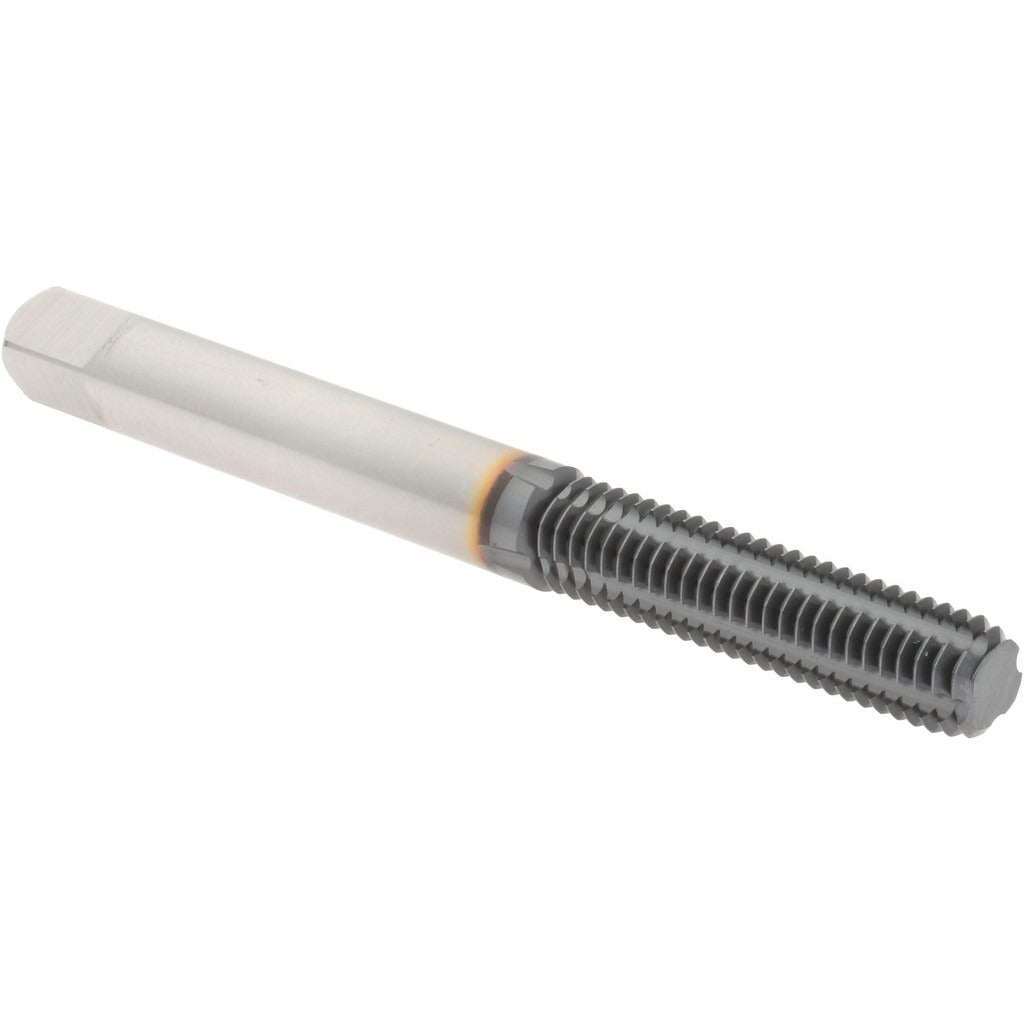

Hertel K010457AS85 Thread Forming Tap M6x1 Bottoming Ticn

Product Description

The HERTEL K010457AS85 is a metric bottoming thread forming tap manufactured from high-speed steel with a TiCN (titanium carbonitride) coating. Thread forming taps displace material rather than cutting it, producing stronger threads with no chips to clear — a key advantage in blind hole applications. This tap is sized for M6x1 threads and carries a D8 thread limit for close-tolerance work. With an overall length of 2.5 inches and a thread length of 1 inch, it is well suited for production and maintenance threading in metal components. Installation is performed by machinists and toolroom technicians using standard tapping equipment.

This tap is intended for blind hole threading in ductile metals where chip evacuation is a concern and thread strength is a priority. The bottoming chamfer — with 1 to 2 chamfered threads — allows threading to the bottom of a blind hole with minimal run-out. The right-hand thread direction is standard for conventional tapping equipment and manual tap handles. The TiCN coating reduces friction and extends tool life in ferrous and non-ferrous materials. Typical applications include threading tapped inserts, machine frames, fixtures, and close-tolerance assemblies in manufacturing and repair environments.

Key Features

• Bottoming chamfer with 1-2 chamfered threads for threading to the bottom of blind holes
• TiCN coating reduces friction and improves wear resistance compared to uncoated HSS
• High-speed steel construction suitable for a wide range of ductile metals
• D8 thread limit for close-tolerance metric thread production
• Right-hand thread direction compatible with standard tapping equipment
• No coolant-through requirement — compatible with surface-applied cutting fluid

Compatibility

Designed for use in standard tapping chucks and tap handles accepting a 0.255-inch shank diameter, producing M6x1 right-hand internal threads in blind hole applications.

Installation Notes

This tap is installed by machinists or toolroom technicians using a tapping machine, CNC machining center, or hand tap handle. Ensure the workpiece is securely fixtured and the tap is properly aligned with the drilled pilot hole before engaging. Apply a suitable cutting fluid or tapping compound to the tap before use to reduce friction and heat buildup. Do not force the tap if resistance increases unexpectedly — back off to clear any built-up material and re-engage carefully.
