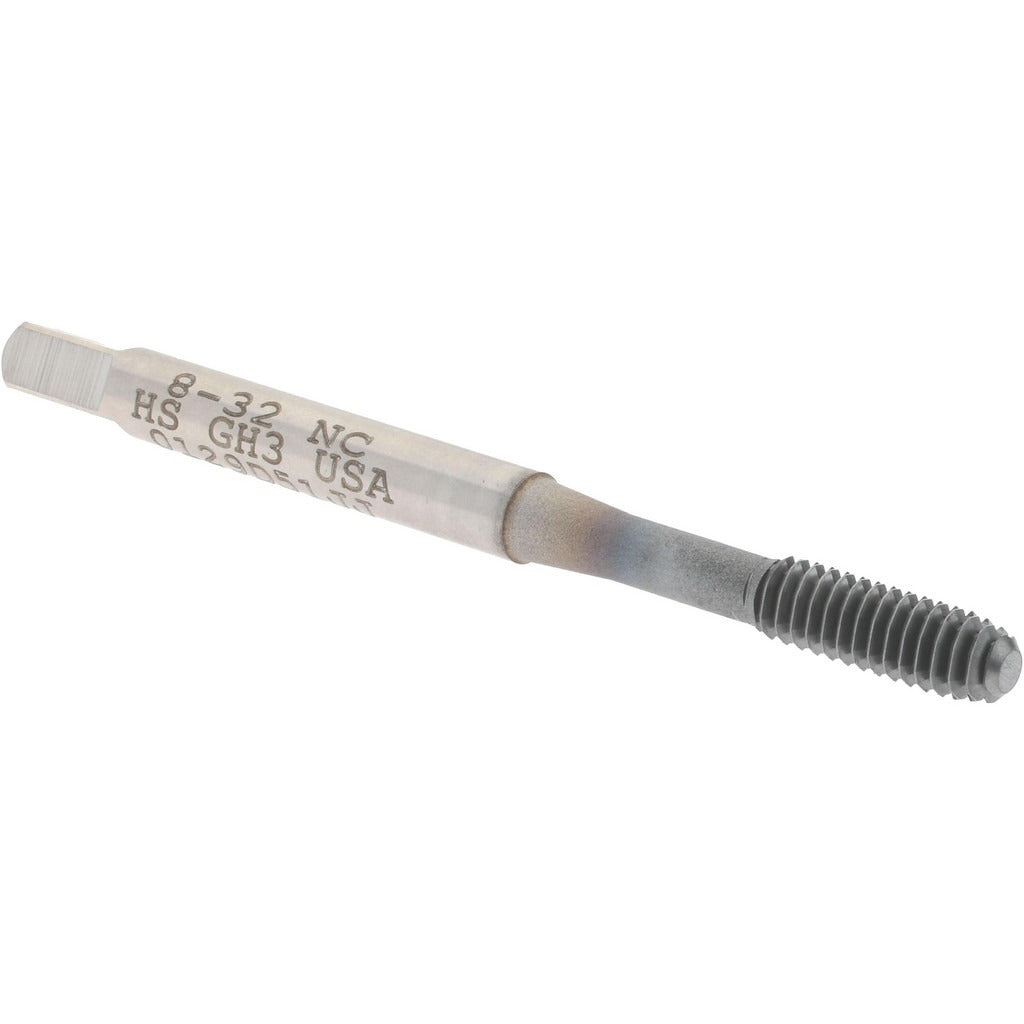

Hertel K010341AS85 Thread Forming Tap 8-32 Unc Ticn

Product Description

The HERTEL K010341AS85 is a bottoming-chamfer thread forming tap designed for 8-32 UNC threads with a 2B class of fit. Unlike cutting taps, thread forming taps displace material rather than cut chips, producing stronger threads with a burnished finish in ductile metals. Manufactured from high-speed steel and finished with a TiCN (titanium carbonitride) coating, this tap offers improved hardness and wear resistance compared to uncoated HSS tooling. The H3 thread limit maintains consistent tolerance control across production runs. Overall length is 2.125 inches with a 0.75-inch thread length, making it suited for shallow-to-moderate blind hole applications.

This tap is used in blind hole threading operations where chip evacuation is a concern and the workpiece material is ductile enough for cold-forming — typically aluminum, brass, copper, mild steel, and similar materials. The bottoming chamfer, with 1-2 thread lead, allows threading close to the bottom of a blind hole. It is commonly used in precision machining, MRO, and production environments across HVAC component fabrication, electrical enclosure manufacturing, and general mechanical assembly.

Key Features

• Thread forming (chipless) design produces stronger, work-hardened threads in ductile materials
• Bottoming chamfer (1-2P lead) allows threading to near the bottom of blind holes
• TiCN coating increases surface hardness and extends tool life versus uncoated HSS
• H3 thread limit provides consistent 2B fit tolerance control
• Right-hand thread direction; no coolant-through required
• 0.168-inch shank diameter with 0.131-inch square drive for standard tap wrenches and holders

Compatibility

Designed for 8-32 UNC blind hole threading in ductile materials. Fits standard tap holders and wrenches accepting a 0.168-inch shank with a 0.131-inch square drive.

Installation Notes

Thread forming taps require a properly sized forming tap drill — the recommended hole diameter differs from standard cut tap drill sizes and must be confirmed for the specific material and fit class before use. Secure the tap in a rigid holder or use a tapping head with appropriate torque control to avoid overloading the shank. Apply cutting oil or tapping fluid appropriate for the workpiece material. Ensure the workpiece is fixtured securely; thread forming generates higher torque than cutting taps and can shift unsecured parts.
