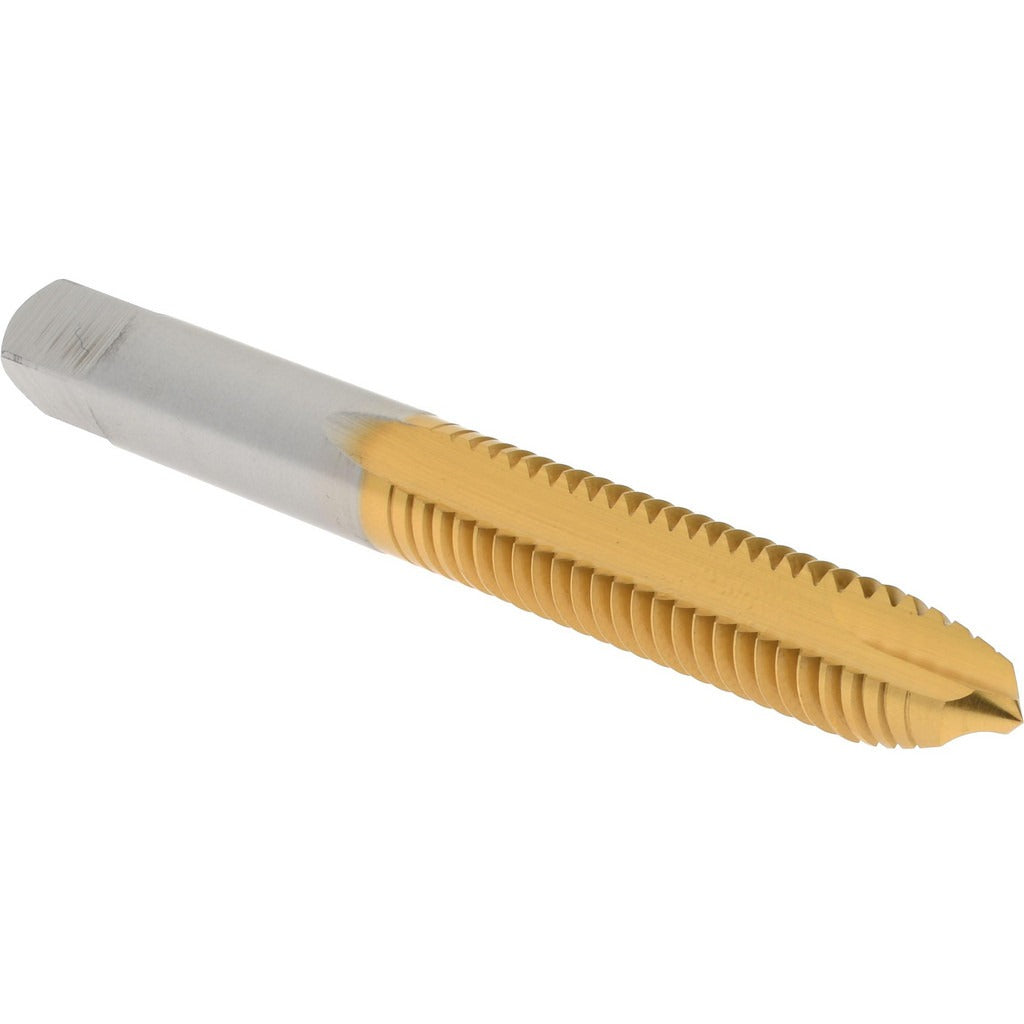

Hertel K008390AS25 Spiral Point Tap 5/16-18 Unc Tin

Product Description

The HERTEL K008390AS25 is a spiral point tap designed for threading through-holes in metalworking applications. It features a 5/16-18 UNC thread form with a plug chamfer, making it well suited for starting threads in pre-drilled holes and cutting full threads through the material. Manufactured from high-speed steel with a titanium nitride (TiN) coating, this tap offers improved wear resistance and longer tool life compared to uncoated HSS alternatives. The two-flute spiral point design pushes chips forward ahead of the tap, keeping the flutes clear during cutting. Thread limit is H2, suitable for general-purpose tolerance requirements.

This tap is used in machine shop, production, and maintenance environments for cutting 5/16-18 UNC internal threads in through-hole applications. It is appropriate for use in ferrous and non-ferrous metals where a right-hand thread is required. The plug chamfer style makes it a standard choice for CNC tapping, drill press tapping, and manual tapping operations where the tool can pass completely through the workpiece. Coolant-through capability is not included in this design.

Key Features

• 5/16-18 UNC thread form with right-hand thread direction
• Plug chamfer for general-purpose through-hole tapping
• High-speed steel construction for durability across a range of materials
• TiN coating increases surface hardness and reduces friction for extended tool life
• Two-flute spiral point geometry pushes chips forward to prevent clogging
• H2 thread limit for standard tolerance fits

Compatibility

Designed as a standard replacement or production spiral point tap for through-hole tapping operations requiring 5/16-18 UNC right-hand threads.

Installation Notes

This tap is installed by machinists and maintenance technicians using a tapping machine, CNC machining center, drill press with tapping attachment, or a hand tap wrench. Always ensure the pre-drilled hole diameter matches the recommended tap drill size for 5/16-18 UNC before beginning. Power down and secure the workpiece before tapping operations. Use an appropriate cutting fluid for the workpiece material to reduce heat and extend tap life.
