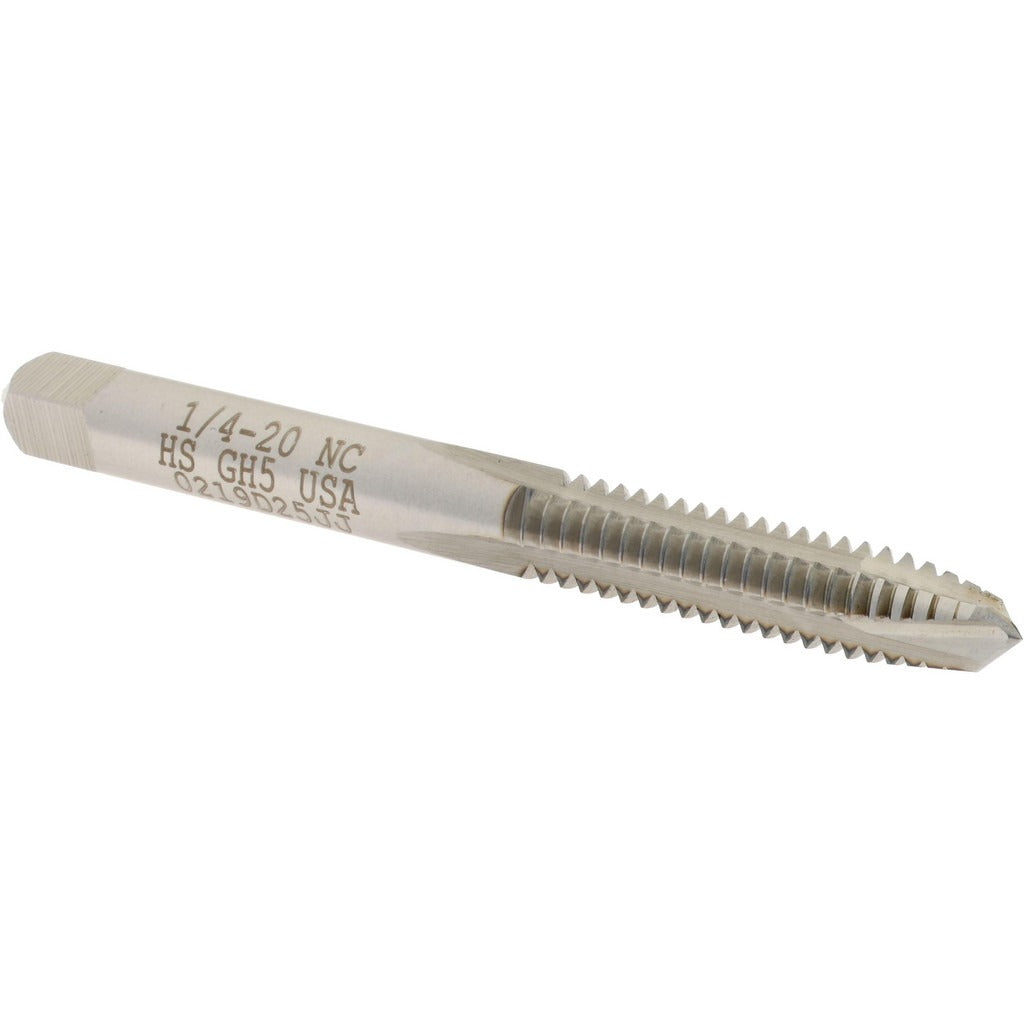

Hertel K008335AS Spiral Point Tap 1/4-20 Unc 3 Flute

Product Description

The HERTEL K008335AS is a spiral point tap designed for cutting 1/4-20 UNC internal threads in through-hole applications. Built from high-speed steel (HSS) with a bright uncoated finish, this tap uses a three-flute spiral point geometry that pushes chips ahead of the cut rather than packing them into the flute. This keeps the cutting zone clear and reduces the risk of chip-related breakage during production tapping. The plug chamfer provides a gradual thread lead-in, making it suitable for most standard through-hole work. Thread limit is H5, and the class of fit is 2B, conforming to standard UNC tolerances for general-purpose fastener applications. This tap is right-hand cut.

The K008335AS is suited for machine tapping in CNC machining centers, drill presses, and tapping machines where through-hole threading is required. The spiral point design is most effective in through-holes where chips can exit from the bottom of the bore. Typical materials include mild steel, aluminum, brass, and similar machinable metals. It is not designed for coolant-through delivery. This tap is packaged and sold individually.

Key Features

• 1/4-20 UNC thread form, right-hand cut, 2B class of fit
• Three-flute spiral point geometry pushes chips forward for clean through-hole tapping
• High-speed steel construction provides durability across a wide range of machinable materials
• Plug chamfer for standard lead-in in through-hole applications
• H5 thread limit for consistent 2B tolerance compliance
• Bright uncoated finish — no coating variables to account for in speed and feed calculations

Compatibility

Designed as an OEM-style replacement or direct-use spiral point tap for standard 1/4-20 UNC through-hole threading operations on compatible machine tapping equipment.

Installation Notes

Spiral point taps are installed by machinists and tooling technicians in machine tapping applications. Always ensure the spindle is properly aligned and that the tap holder provides adequate float to prevent thread distortion. Use appropriate cutting fluid or tapping compound for the workpiece material to extend tool life. Never reverse a broken tap manually — consult standard tap extraction procedures to avoid workpiece damage.
