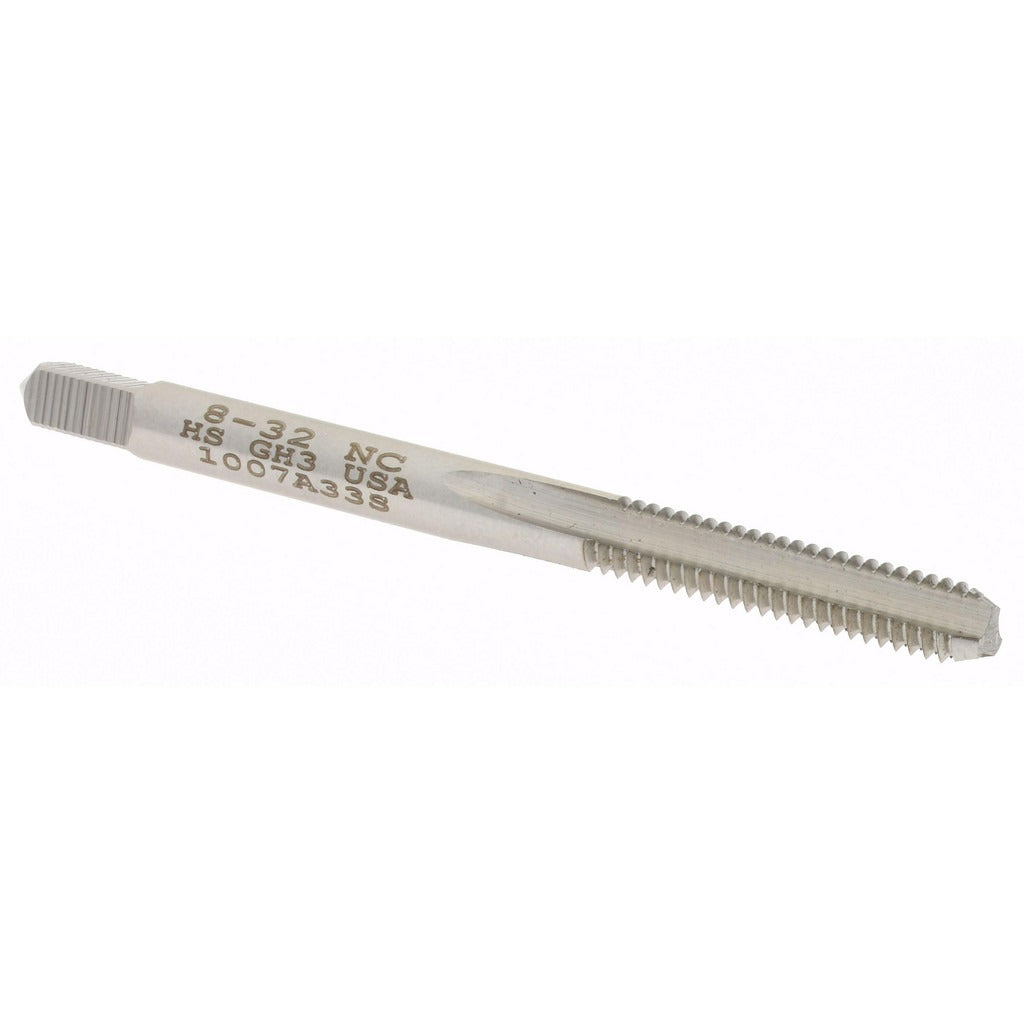

Hertel K008195AS Straight Flute Tap 8-32 Unc Bottoming Hss

Product Description

The HERTEL K008195AS is a straight flute bottoming tap designed to cut internal 8-32 UNC threads in through-holes and blind holes where full thread depth near the bottom is required. Manufactured from high-speed steel (HSS) with a bright, uncoated finish, this tap offers reliable performance across a range of common work materials. It features 3 straight flutes, an H3 thread limit for a 2B class of fit, a 0.75 inch thread length, and a 2.125 inch overall length (OAL). The bottoming chamfer - with only 1 to 2 lead threads - allows threading to within a few threads of the bottom of a blind hole. Machinists, toolroom technicians, and maintenance trades use this tap in both manual and machine tapping applications.

This tap is suited for production and repair work requiring 8-32 UNC internal threads. The straight flute geometry is best applied to short-chipping materials such as cast iron, brass, bronze, and certain plastics. The bottoming style makes it a common third tap in a set, following a taper and plug tap to complete thread depth in blind holes. It is appropriate for use in light manufacturing, toolroom, and MRO (maintenance, repair, and operations) environments where controlled thread fit and consistent results are expected.

Key Features

• Bottoming chamfer for threading to near full depth in blind holes
• 3 straight flutes optimized for short-chipping materials
• H3 thread limit providing 2B class of fit for standard tolerance assemblies
• High-speed steel construction for durability in manual and machine tapping
• Bright, uncoated finish suitable for use with standard cutting fluids
• Right-hand thread direction, 8-32 UNC specification

Compatibility

Designed as an OEM-style replacement or direct-use tap for any application requiring an 8-32 UNC straight flute bottoming tap with an H3 thread limit and 2B class of fit.

Installation Notes

This tap is installed by machinists and toolroom technicians using a tap wrench, tapping head, or compatible machine spindle. Ensure the workpiece is securely clamped and the tap is started straight and aligned to the pilot hole axis before applying torque. Always apply an appropriate cutting fluid for the work material to reduce friction and extend tap life. Follow standard shop practice for clearing chips when tapping blind holes to prevent tap breakage.
