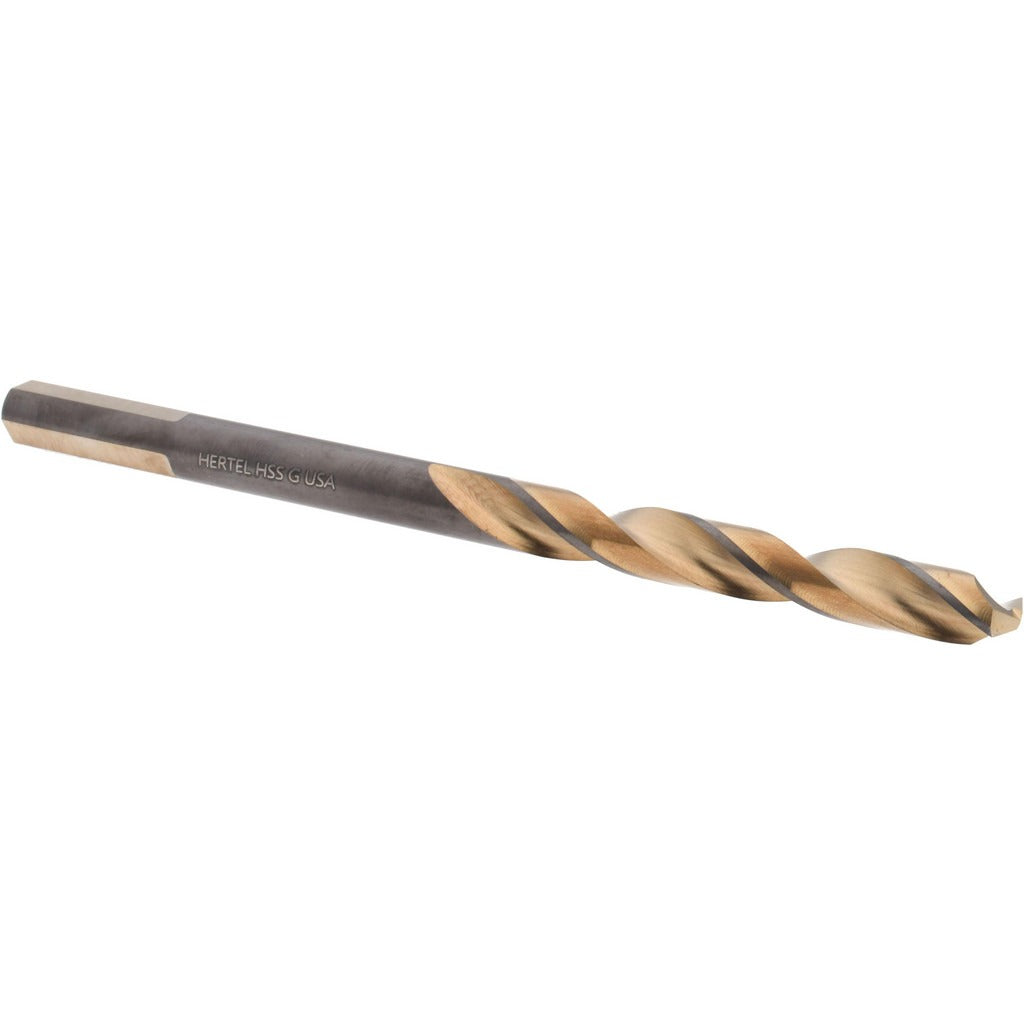

Hertel H95006206 Jobber Drill Bit Letter G Hss

Product Description

The HERTEL H95006206 is a Letter G jobber-length drill bit designed for general-purpose holemaking in metal, wood, and composite materials. Built from high speed steel with an oxide finish, this bit measures 0.2610 inches in decimal diameter and features a 137-degree split point that reduces walking on entry and lowers thrust requirements. The 2-flute spiral flute design clears chips efficiently during through-hole drilling. At 4.125 inches overall length with a 2.25-inch flute length, it fits standard drill chucks and drill press setups common in trade and production environments. The heavy-duty grade construction makes it suitable for repetitive use in shop and field applications.

This drill bit is suited for machinists, pipefitters, electricians, and general trade professionals who need reliable letter-size drilling in ferrous and non-ferrous metals. Letter G sizing is commonly used when drilling to exact tolerances for tapping or reaming operations. The right-hand cutting direction is compatible with standard drill presses, handheld power drills, and CNC drilling equipment. It conforms to ANSI specification designations and falls within the 0.2500 to 0.3000 inch drill bit size range for jobber-series tooling.

Key Features

• Letter G diameter (0.2610 inches) for precise tolerance-sensitive drilling
• 137-degree split point reduces entry walking and decreases feed pressure
• High speed steel construction with oxide finish for wear resistance
• 2-flute regular spiral design promotes chip evacuation in through-hole applications
• Heavy-duty grade rated for repetitive production and field use
• Right-hand cut, ANSI-spec jobber series with 3 flats on the shank

Compatibility

Designed as a standard jobber-series drill bit conforming to ANSI specifications, compatible with any drill press, handheld power drill, or CNC drilling machine accepting a straight-shank Letter G drill bit.

Installation Notes

Installation and use of this drill bit should be performed by qualified machinists or trade professionals familiar with proper drilling speeds and feeds for the material being worked. Always secure the workpiece before drilling and ensure the chuck is tightened fully before operation. Wear appropriate eye protection and follow applicable OSHA and shop safety guidelines. Do not exceed the rated RPM for the bit diameter and material combination.
