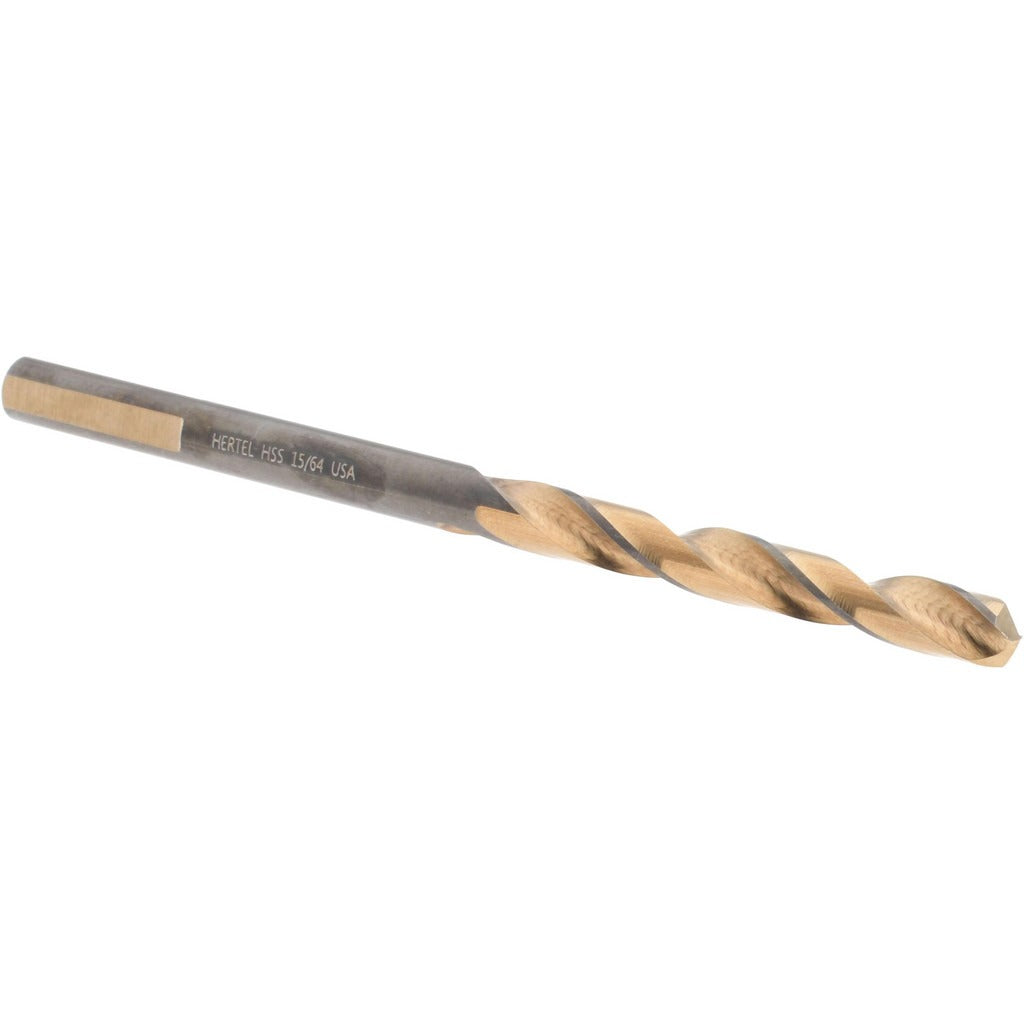

Hertel H95006011 Jobber Drill Bit 15/64 in Hss

Product Description

The HERTEL H95006011 is a heavy-duty jobber-length drill bit designed for holemaking in metal and general-purpose materials. It measures 15/64 inch (0.2344 inch decimal) in diameter with a 3-7/8 inch overall length and a 2-inch flute length. The 137-degree split point reduces walking at startup and requires less thrust force when entering the workpiece. The high speed steel construction carries an oxide and TiN coating for increased surface hardness and heat resistance during extended drilling cycles. This bit is sold individually and suits both shop and field use by machinists, maintenance technicians, and trade professionals who need a reliable fractional drill for production or repair work.

This jobber drill bit is suited for right-hand rotation in standard drill presses, hand drills, and CNC drilling applications. Its regular spiral and two-flute design efficiently evacuates chips from the cut zone, making it effective in mild steel, aluminum, plastics, and similar materials. The ANSI-specification construction ensures dimensional consistency for applications requiring repeatable hole sizing within the 0.2000 to 0.2500 inch drill size range. It is a common choice for maintenance and repair operations as well as light production drilling in shop environments.

Key Features

• 15/64 inch diameter (0.2344 inch decimal) meets ANSI specification standards
• 137-degree split point reduces walking and lowers required feed force
• High speed steel construction with oxide and TiN coating for heat and wear resistance
• Heavy-duty grade with 2-inch spiral flute length for efficient chip evacuation
• Right-hand cutting direction compatible with standard drill equipment
• 3-flats shank design for improved chuck grip and reduced slippage

Compatibility

Designed as an OEM-style jobber drill bit for use in standard drill chucks accepting fractional shank sizes in the 0.2000 to 0.2500 inch range, conforming to ANSI jobber-series dimensional specifications.

Installation Notes

Installation is performed by qualified machinists or trade professionals using standard drill press or hand-drill equipment. Secure the bit firmly in the chuck before operation and verify the spindle speed is appropriate for the material being drilled. Always wear appropriate eye protection and secure the workpiece before beginning the cut. Inspect the cutting edges for wear or chipping before each use and replace the bit if the point shows visible damage.
