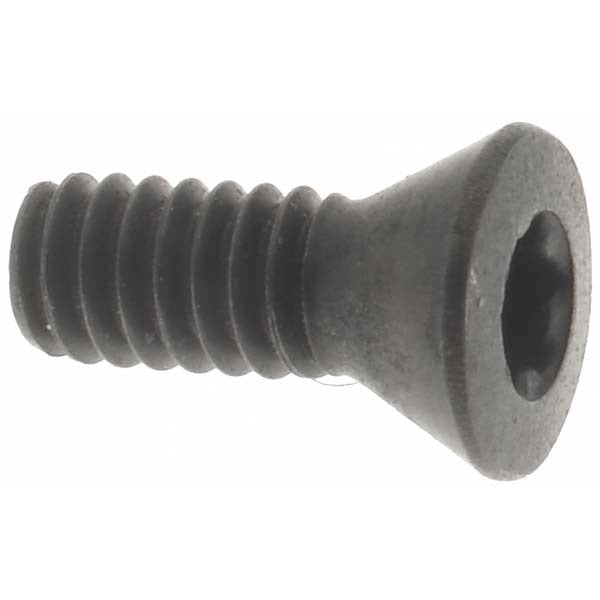

Hertel H08716516 Indexable Insert Clamping Screw

Product Description

The HERTEL H08716516 is a clamping screw designed for indexable tooling systems. It secures cutting inserts in place on threading tool holders, maintaining consistent insert positioning during machining operations. This type of screw is a consumable hardware component that experiences wear and thread fatigue over time and requires periodic replacement to keep indexable tooling performing reliably. Machinists and tool crib technicians working with CNC lathes, turret lathes, and manual threading setups will encounter this fastener as a standard service item.

This screw is specified for use with threading inserts in indexable tool systems. It is a small-format fastener sized and threaded to match the clamping pocket of compatible threading tool holders. It is sold individually and is typically ordered in multiples of 5 to maintain adequate shop stock. Applications include threading operations on both ferrous and non-ferrous workpieces in production and job-shop environments.

Key Features

• Designed specifically for indexable threading tool insert clamping
• OEM-style replacement screw for maintaining insert seat integrity
• Compact, lightweight design at 0.017 pounds per unit
• Sold individually with a minimum order quantity of 5 units
• Direct HERTEL replacement hardware for field servicing of tool holders

Compatibility

Designed for use with threading inserts in HERTEL indexable tooling systems. No additional compatible model numbers or system families were specified in the available product data.

Installation Notes

Installation is performed by machinists or toolroom technicians during insert indexing or replacement. The tool holder should be removed from the machine spindle or turret before servicing the insert clamp screw. Use the correct Torx or hex key driver as specified by the tool holder manufacturer to avoid stripping the screw head. Do not over-tighten, as insert clamping screws are designed for specific seating force and are not general-purpose fasteners.
