Hertel H08699993 Anvil for Indexables 0.5 Inch

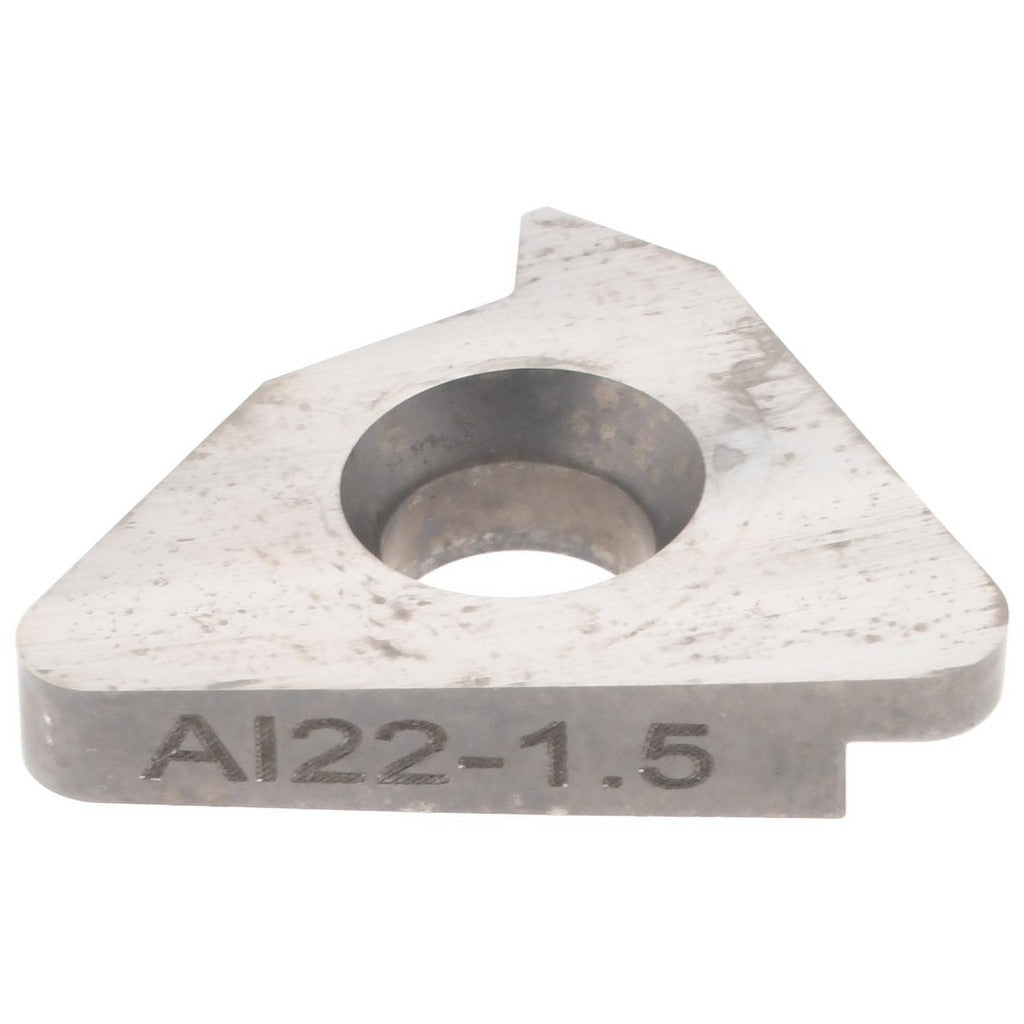

Product Description

The HERTEL H08699993 is an anvil designed for indexable toolholders, providing a precision seat for indexable inserts in turning and boring operations. With a 0.5-inch insert inscribed circle, this anvil supports both external left-hand and internal right-hand orientations. The helix angle is -1.5 degrees, and the toolholder insert size code is 22. This component is installed by machinists and toolroom technicians as part of a replaceable-insert cutting tool assembly, restoring the seating surface when worn or damaged without replacing the entire toolholder body.

This anvil is suited for use in CNC turning centers, manual lathes, and boring applications where indexable insert toolholders are employed. It is applicable to external left-hand and internal right-hand cutting configurations, making it a versatile replacement component for shops running both OD turning and ID boring operations with compatible toolholder bodies.

Key Features

• 0.5-inch insert inscribed circle for precise insert seating
• Compatible with external left-hand and internal right-hand orientations
• Helix angle of -1.5 degrees
• Toolholder insert size code 22
• Lightweight at 0.12 pounds for easy handling during tool changes

Compatibility

Designed as a replacement anvil for indexable toolholders accepting a 0.5-inch inscribed circle insert with toolholder insert size code 22, in external left-hand and internal right-hand configurations.

Installation Notes

Installation is performed by machining technicians during toolholder maintenance or insert seat replacement. Power down and lock out the machine before removing the toolholder from the turret or spindle. Use manufacturer-specified torque procedures for the anvil retention screw to avoid seating surface damage. Inspect the pocket and clamping components for wear before installing the new anvil.
