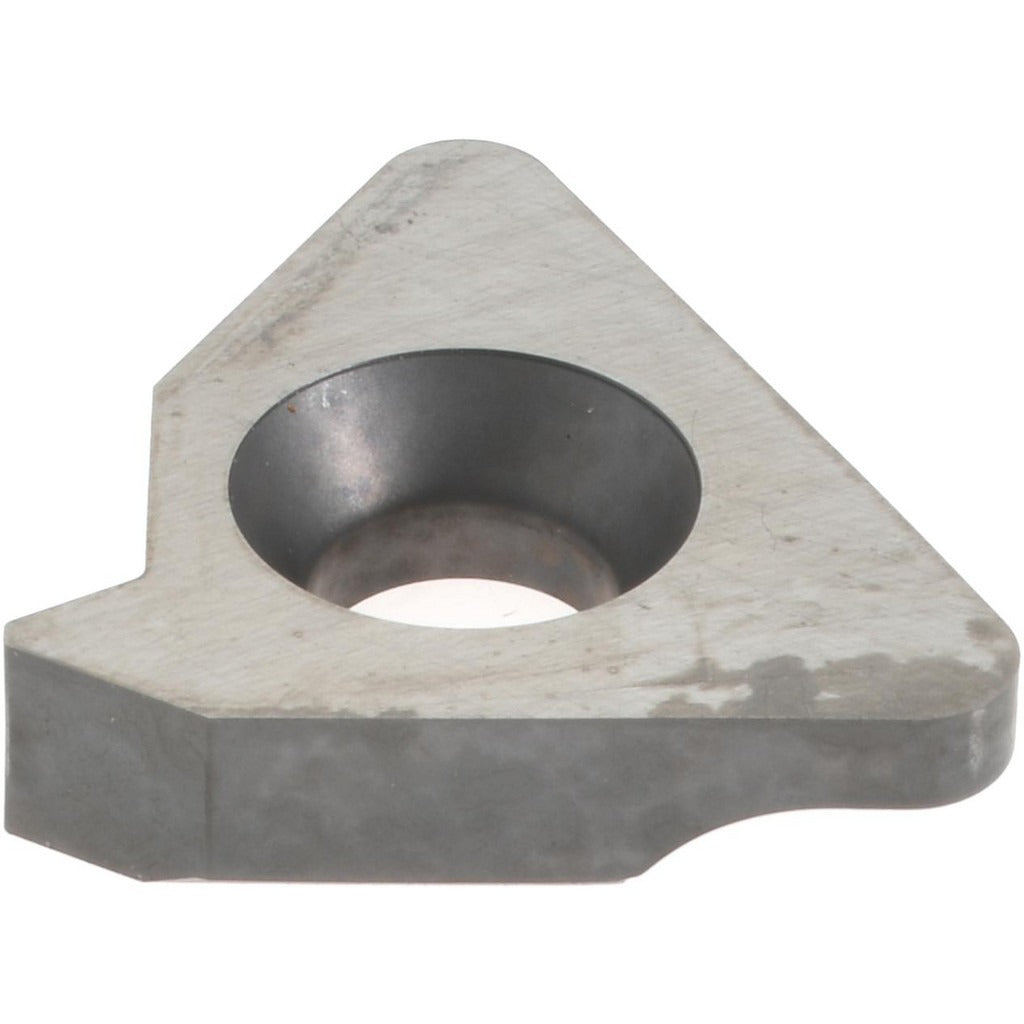

Hertel H08699811 Anvil for Indexables 0.5 Inch

Product Description

The HERTEL H08699811 is an anvil designed for indexable cutting tools, providing a precision seat that supports and protects the insert pocket in the toolholder body. This component sits beneath the cutting insert and absorbs cutting forces, distributing load away from the toolholder body to extend tool life. It is suited for both external right hand and internal left hand orientations, giving toolroom technicians and machinists flexibility across turning and boring applications. The insert inscribed circle measures 0.5 inches, corresponding to a toolholder insert size code of 22, and the part carries a 1.5-degree helix angle for proper insert alignment.

This anvil is used in metalcutting operations where indexable inserts are seated in precision toolholders. It applies to turning centers, CNC lathes, and manual lathes running indexable insert tooling in external turning or internal boring configurations. The dual orientation designation, external right hand and internal left hand, makes it applicable across a range of toolholder styles that require an anvil of this insert size. It is typically sourced by toolroom personnel, machining centers, or maintenance teams managing indexable toolholder inventory.

Key Features

• 0.5 inch insert inscribed circle for precise insert seating and load distribution
• Compatible with external right hand and internal left hand toolholder orientations
• 1.5-degree helix angle for accurate insert positioning and alignment
• Toolholder insert size code 22 for straightforward cross-referencing
• Compact form factor at 22 millimeters in length and 0.12 pounds

Compatibility

Designed as an OEM-style replacement anvil for indexable toolholders requiring a 0.5 inch inscribed circle insert seat with a size code 22 designation.

Installation Notes

Installation is performed by toolroom technicians or machinists during indexable toolholder maintenance or insert changeover. Power down and lock out any machine spindle before accessing the toolholder. Use the appropriate torx or hex key specified by the toolholder manufacturer when securing the insert screw and anvil assembly. Inspect the anvil seat and toolholder pocket for debris or damage before installing a new anvil.
