Hertel H00481630 Anvil for Indexables 0.375 Inch

Product Description

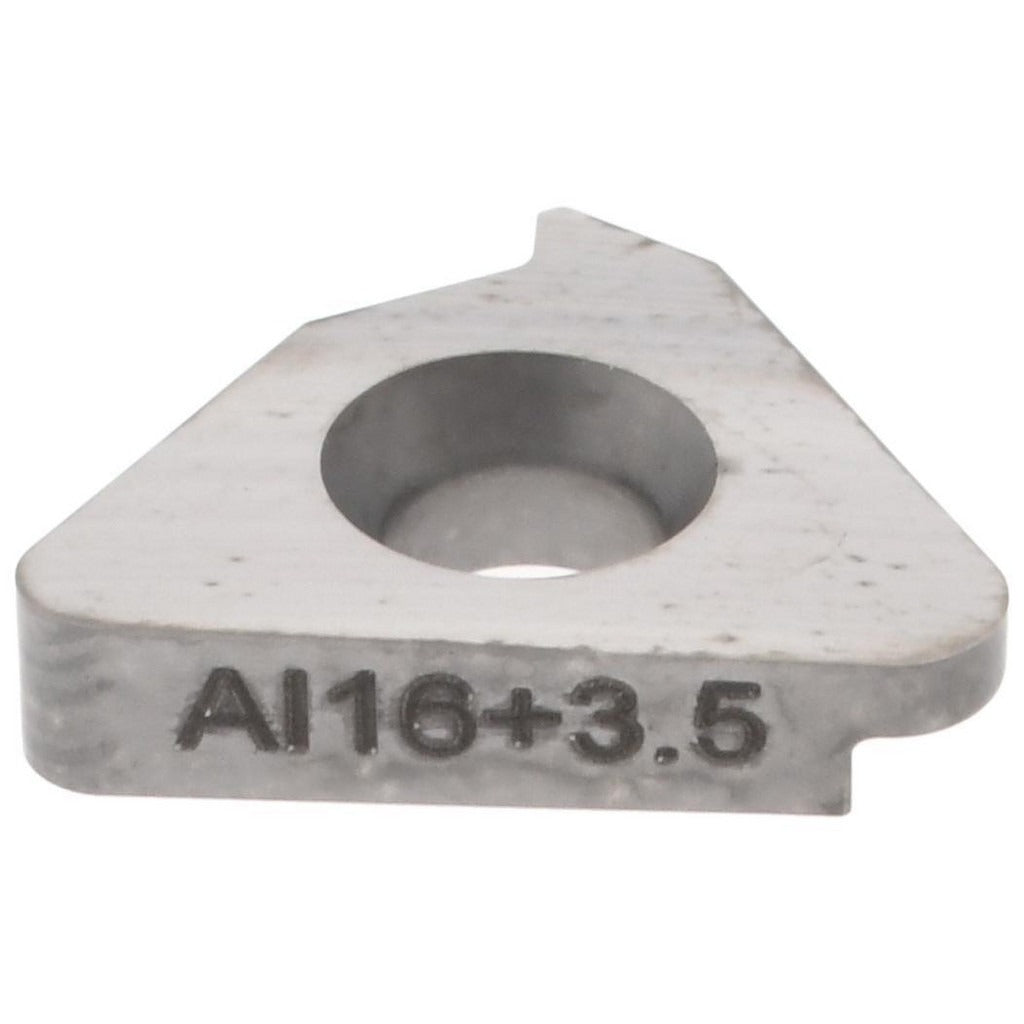

The HERTEL H00481630 is an anvil designed for indexable toolholders used in precision turning and boring operations. The anvil provides a hardened seating surface that supports and positions the indexable insert within the toolholder pocket, absorbing cutting forces and protecting the pocket from wear. This unit is configured for External Left Hand and Internal Right Hand orientations, making it suitable for both OD and ID machining setups. It carries a 0.375 inch insert inscribed circle (IC) size and a 3.5 degree helix angle. Installation and replacement are handled by machinists and tool crib technicians maintaining indexable tooling assemblies.

This anvil fits toolholders accepting a 0.375 inch IC indexable insert with a Toolholder Insert Size Code of 16. It is used in CNC turning centers, lathes, and boring applications where External Left Hand or Internal Right Hand cutting configurations are required. The part suits both light-production and job-shop environments where indexable tooling is the standard for external profiling and internal bore work. Package quantity is 1 piece.

Key Features

• 0.375 inch insert inscribed circle (IC) sizing for precise insert seating
• 3.5 degree helix angle geometry to match corresponding insert and pocket design
• Dual-orientation compatibility: External Left Hand and Internal Right Hand
• Toolholder Insert Size Code 16 for correct pocket fit
• Hardened anvil construction protects toolholder pocket from cutting load damage

Compatibility

Designed for indexable toolholders with a 0.375 inch IC insert size and Toolholder Insert Size Code 16, configured for External Left Hand and Internal Right Hand orientations with a 3.5 degree helix angle.

Installation Notes

Anvil replacement is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and the toolholder is secured or removed from the turret before servicing. Verify the anvil seating surface and pocket are free of chips and debris before placing the new anvil. Use the correct torque driver and insert screw per the toolholder manufacturer's assembly guidelines to avoid pocket damage.
