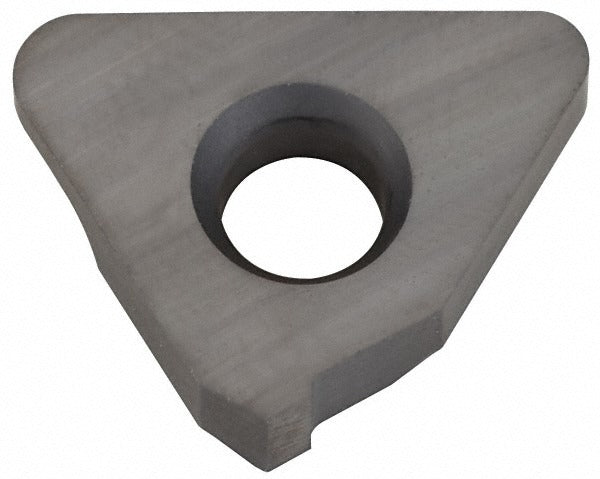

Hertel H00481572 Anvil for Indexables 0.625 in

Product Description

The HERTEL H00481572 is an indexable tooling anvil designed to seat and support indexable inserts in turning and boring toolholders. It provides a precision seating surface that protects the toolholder pocket and ensures consistent insert positioning during metal cutting operations. This anvil features a 0.625 inch insert inscribed circle and a 1.5 degree helix angle. It is rated for both external left hand and internal right hand orientations, offering flexibility across common turning setups. The part weighs 0.12 pounds and carries a toolholder insert size code of 27. It is installed and replaced by machinists and tool-crib technicians in production and job-shop environments.

This anvil is suited for use in indexable turning toolholders that accept a 0.625 inch inscribed circle insert. The dual-orientation design supports external left hand and internal right hand cutting configurations, making it applicable across a range of turning center setups. It is typically used in CNC lathe and manual lathe toolholders where insert anvils are replaceable components. The 27 insert size code and 1.5 degree helix angle are key selection criteria when matching this anvil to the correct toolholder pocket.

Key Features

• 0.625 inch insert inscribed circle for precise insert seating
• 1.5 degree helix angle for proper insert orientation within the pocket
• Compatible with external left hand and internal right hand cutting orientations
• Toolholder insert size code 27 for straightforward toolholder matching
• Lightweight at 0.12 pounds for minimal toolholder mass impact

Compatibility

Designed as an OEM-style replacement anvil for indexable turning and boring toolholders accepting a 0.625 inch inscribed circle insert with a size code 27 designation.

Installation Notes

Anvil replacement is performed by machinists or tool-crib personnel with the machine powered down and all axes at rest. The toolholder pocket should be cleaned of chips and debris before seating the new anvil. Use the toolholder manufacturer's specified torque procedure for the clamp screw to avoid pocket damage. Inspect the seating surface of the new anvil for burrs or damage before installing the insert.
