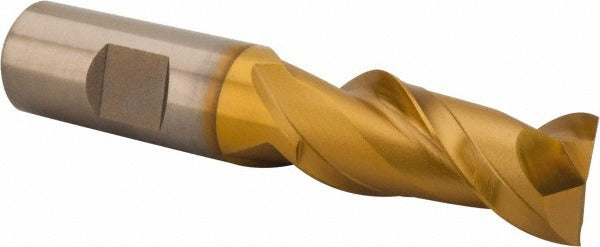

Hertel GH070048 Square End Mill 0.75in 2 Flute Hss Tin

Product Description

The HERTEL GH070048 is a square end mill designed for general-purpose milling operations in ferrous and non-ferrous materials. Machined from M7 high speed steel and finished with a TiN (titanium nitride) coating, it offers improved wear resistance and tool life compared to uncoated HSS tooling. The mill measures 0.75 inches in diameter with a 1.625-inch length of cut, a 0.75-inch shank diameter, and a 3.875-inch overall length. It features two spiral flutes at a 42-degree helix angle for efficient chip evacuation. The centercutting design allows plunge cuts as well as conventional peripheral and slot milling. Installation and use is performed by machinists and CNC operators in job shop, production, and maintenance environments.

This end mill is suited for face milling, profiling, slotting, and plunge operations on milling machines and CNC machining centers. The right-hand cut and right-hand spiral flute geometry is the standard configuration for conventional vertical and horizontal milling setups. The regular-length body keeps the tool stiff enough for general-purpose work where extended reach is not required. It is a single-end tool, meaning it is replaced rather than reversed when worn.

Key Features

• M7 high speed steel construction for toughness in interrupted cuts
• TiN coating increases surface hardness and reduces friction at the cutting edge
• 42-degree helix angle promotes smooth cutting action and effective chip removal
• Centercutting geometry enables direct plunge entry without a pilot hole
• Right-hand cut and right-hand flute — standard configuration for most milling setups
• Two-flute design allows larger chip loads per tooth in softer materials and slotting applications

Compatibility

Designed as a standard 0.75-inch shank square end mill compatible with ER, CAT, BT, and straight-bore tool holders accepting a 0.75-inch shank diameter on manual and CNC milling machines.

Installation Notes

Installation is performed by a machinist or CNC operator. Always power down and lock out the spindle before changing tooling. Secure the shank fully within the tool holder to the recommended engagement depth and torque the retention mechanism according to the tool holder manufacturer specifications. Inspect the cutting edges and TiN coating for chips or wear before each use; a damaged edge should not be run.
