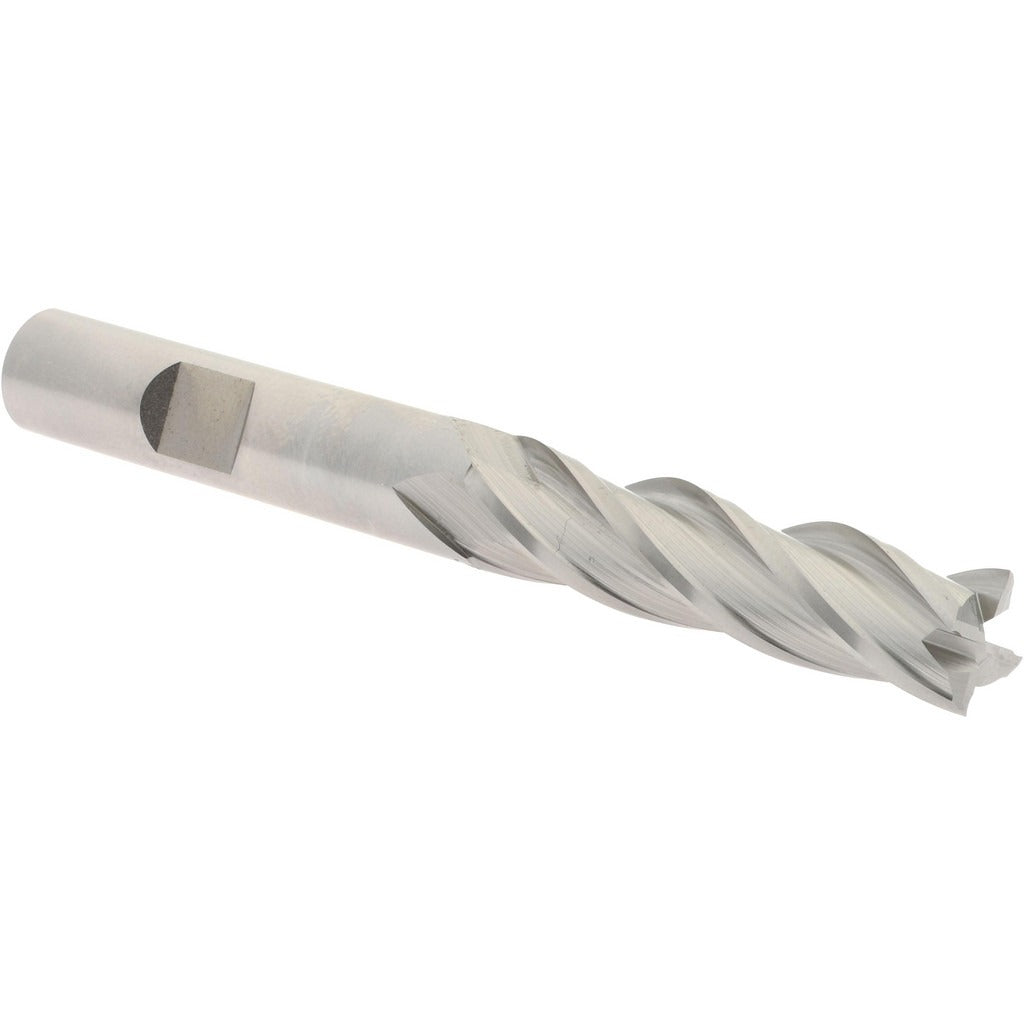

Hertel GG040024 Square End Mill 3/8 in 4 Flute Hss

Product Description

The HERTEL GG040024 is a 4-flute square end mill designed for general-purpose milling operations in a wide range of metalworking applications. Manufactured from M7 high speed steel with no coating, it features a 3/8 inch cutting diameter, a 1-1/2 inch length of cut, and a 3-1/4 inch overall length. The spiral flute geometry with a 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. Center-cutting capability allows for direct plunge entry into workpiece material. This tool is intended for use by machinists, toolmakers, and CNC operators working on milling machines and machining centers.

This end mill suits residential shop, job shop, and production environments where steel, aluminum, brass, and similar machinable materials are processed. The regular length classification and 3/8 inch shank diameter make it compatible with standard ER and side-lock toolholders found on vertical milling machines and machining centers. Its right-hand cut, right-hand flute configuration is the standard orientation for conventional and climb milling passes on most setups.

Key Features

• M7 high speed steel construction for toughness in interrupted cuts and general-purpose milling
• 30-degree helix spiral flute promotes chip flow and reduces cutting heat
• Center-cutting design allows direct plunge milling without pre-drilling
• Right-hand cut and right-hand flute geometry — standard orientation for most milling setups
• Uncoated finish — suitable for regrinding and re-use cycles common in tool room environments
• Regular length classification provides rigidity for slotting, profiling, and peripheral milling

Compatibility

Designed as a standard 3/8 inch shank square end mill compatible with ER collet chucks, side-lock holders, and milling chucks rated for 3/8 inch shank tooling on vertical or horizontal milling machines and machining centers.

Installation Notes

Installation is performed by a machinist or CNC operator. Ensure the spindle is fully stopped and locked out before loading or changing tooling. Seat the shank fully into the toolholder to the recommended engagement depth and torque the retention mechanism per the toolholder specification. Verify runout with a dial indicator after tool change before beginning a cut.
