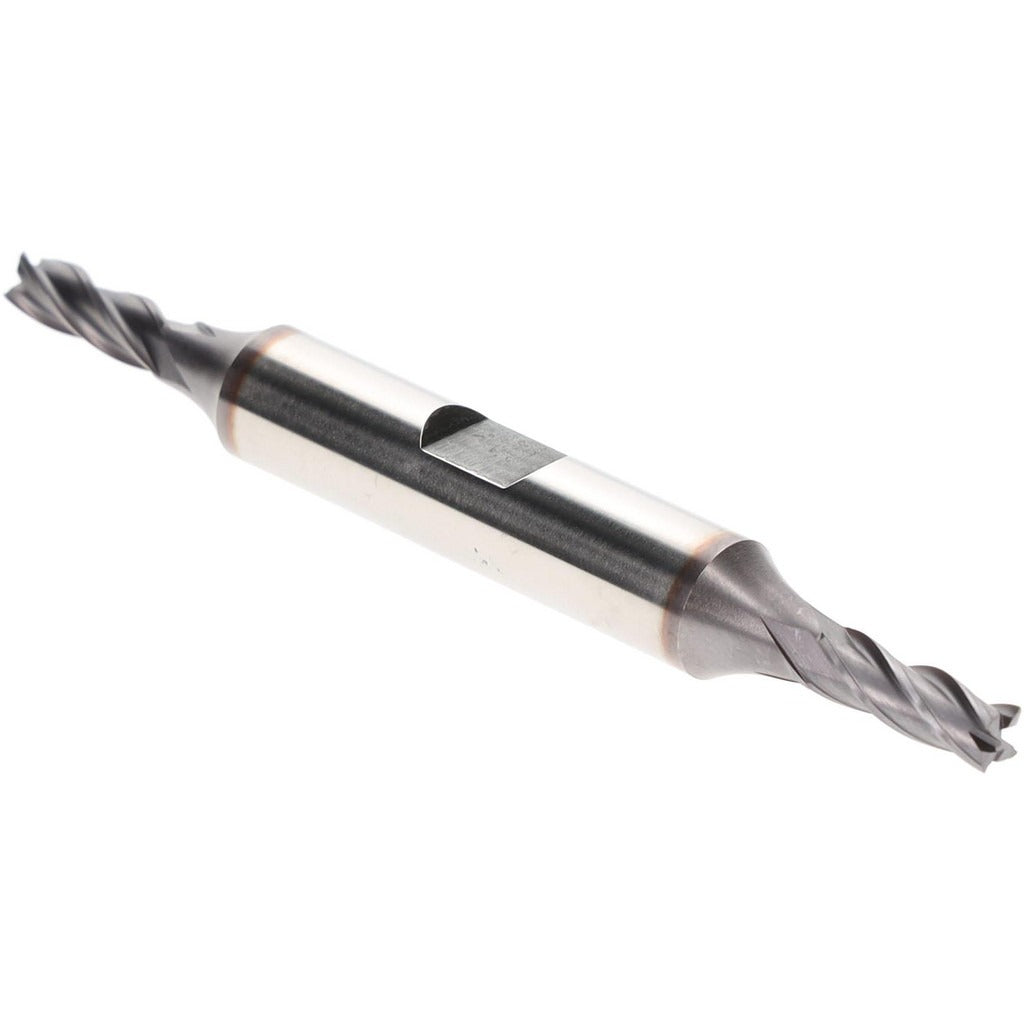

Hertel EF053012 Square End Mill 3/16 in 4 Flute Hss Ticn

Product Description

The HERTEL EF053012 is a 4-flute square end mill designed for milling operations in ferrous and non-ferrous metals. It is manufactured from high speed steel with a TiCN coating that increases surface hardness and extends tool life in abrasive cutting environments. The 3/16 inch cutting diameter and 1/2 inch length of cut make it well suited for slotting, profiling, and peripheral milling in tighter work envelopes. A 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces. Right-hand cut and right-hand flute geometry are standard for conventional milling machine and CNC machining center spindles.

This end mill fits applications in job shops, production machining, toolrooms, and maintenance environments where a small-diameter, general-purpose cutter is needed. The centercutting geometry allows the tool to plunge directly into a workpiece, enabling ramping and helical interpolation entry moves without a pre-drilled hole. The 3/8 inch shank diameter is compatible with standard ER collets and end mill holders found on vertical machining centers, knee mills, and manual milling machines.

Key Features

• High speed steel construction with TiCN coating for improved wear resistance
• 4-flute spiral design balances material removal rate with surface finish quality
• 30-degree helix angle promotes efficient chip evacuation
• Centercutting capable — supports plunge, ramp, and helical entry cuts
• Right-hand cut and right-hand flute geometry for standard spindle rotation
• 3/8 inch shank fits common ER collet and end mill holder tooling

Compatibility

Designed as an OEM-style replacement or direct-use cutting tool for vertical machining centers, CNC milling machines, and manual knee mills equipped with standard 3/8 inch collet or end mill holder tooling.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the spindle is fully stopped and the machine is in an energy-isolated state before changing tooling. Seat the shank fully into the collet or holder to the recommended engagement depth and torque the retention nut according to the tooling manufacturer specifications. Inspect the cutting edges and coating for chips or damage before each use.
