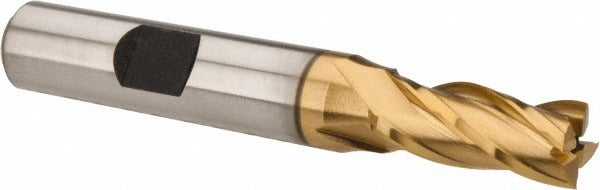

Hertel E8031020 Square End Mill 5/16 in 4 Flute Hss Tin

Product Description

The HERTEL E8031020 is a 4-flute square end mill designed for general-purpose milling operations in ferrous and non-ferrous metals. Built from M7 high speed steel with a titanium nitride (TiN) coating, it delivers extended tool life and improved wear resistance compared to uncoated HSS tooling. The cutter measures 5/16 inch in diameter with a 3/4 inch length of cut and a 3/8 inch shank diameter. Overall length is 2-1/2 inches. The 30-degree spiral helix promotes efficient chip evacuation and smooth cutting action. This tool is installed and operated by machinists and tool-and-die professionals on manual mills and CNC machining centers.

This end mill is suited for slotting, profiling, and peripheral milling in a regular-length reach configuration. The right-hand cut and right-hand flute geometry are standard for conventional milling setups. The non-centercutting design means it is not intended for direct plunge operations and should be used for side milling or entry through a pre-drilled hole. It is a single-end tool, so the cutter is on one end of the shank only.

Key Features

• M7 high speed steel construction for toughness in interrupted cuts
• TiN coating increases surface hardness and reduces friction at the cutting edge
• 30-degree helix angle promotes chip flow and reduces cutting pressure
• 4-flute configuration for improved finish on ferrous materials
• Right-hand cut and right-hand spiral flute geometry for standard mill setups
• Regular-length reach keeps the tool rigid and minimizes deflection

Compatibility

Designed as a standard shank end mill for use in ER and straight-bore collets, end mill holders, or shrink-fit holders accepting a 3/8 inch shank diameter on manual knee mills and CNC vertical machining centers.

Installation Notes

A licensed machinist or toolroom professional should install this end mill. Ensure the machine spindle is fully stopped and locked before changing tooling. Verify the holder bore and collet are clean and free of chips before seating the shank. Set appropriate spindle speed and feed rate for the workpiece material and depth of cut — do not exceed the tool manufacturer's recommended parameters for M7 HSS tooling.
