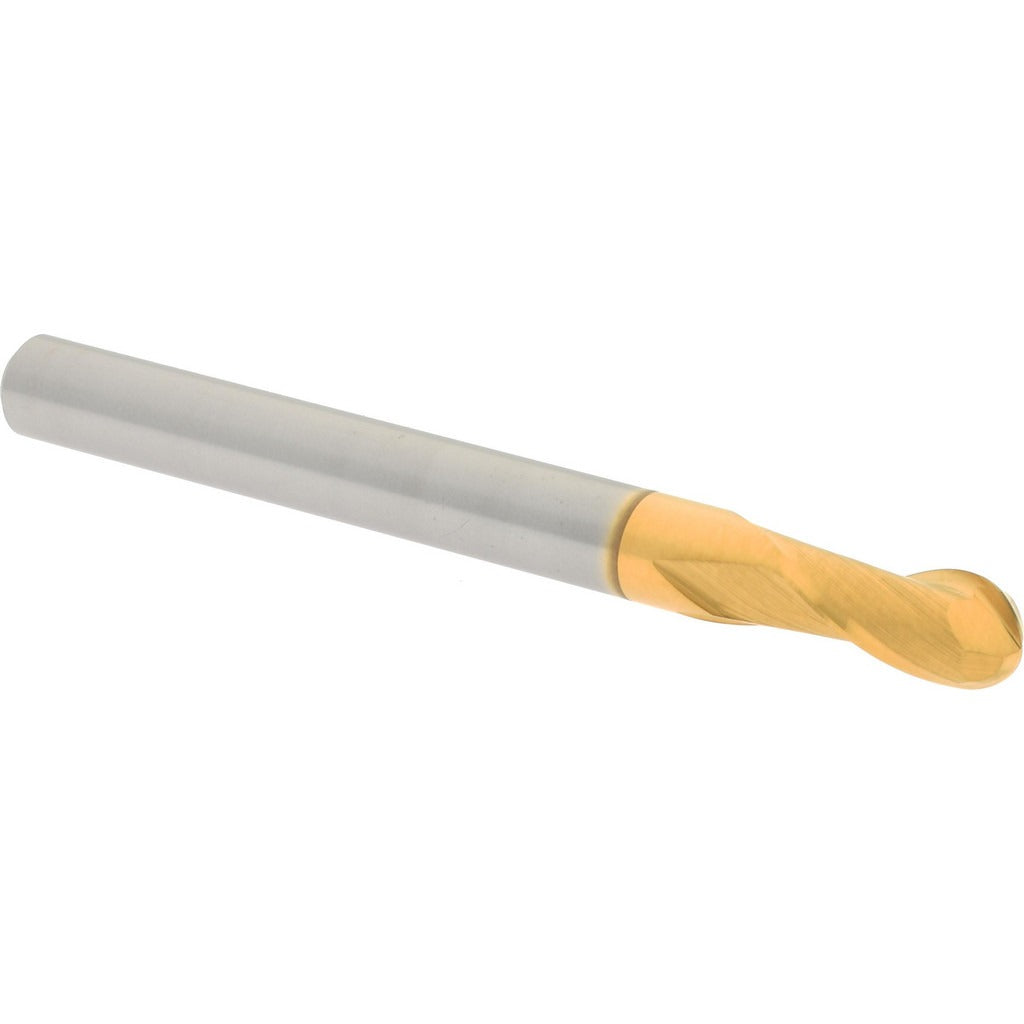

Hertel E699924481 Ball End Mill 0.1875 in 2 Flute Carbide

Product Description

The HERTEL E699924481 is a solid carbide ball end mill designed for precision milling operations in ferrous and non-ferrous materials. With a 0.1875-inch (3/16-inch) mill diameter and a 0.375-inch length of cut, this single-end tool delivers consistent ball-nose geometry for contour milling, profiling, and 3D surface work. The TiN (titanium nitride) coating increases surface hardness and reduces friction, extending tool life in production environments. It is sized for CNC machining centers and manual mills requiring a compact, high-performance carbide end mill.

This ball end mill suits job shops, tool rooms, and production machining operations working on molds, dies, and complex contoured components. The 2-inch overall length and 3/16-inch shank diameter make it compatible with standard collet chucks and end mill holders found on vertical machining centers and knee mills. It is well suited to finish-pass work where accurate ball-nose profiles are required at smaller diameters. Machinists and CNC operators in metalworking and manufacturing environments are the primary installers and users.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• TiN coating reduces friction and increases coating hardness for longer tool life
• Ball-nose geometry enables contour milling, profiling, and 3D surface finishing
• Right-hand cut and right-hand flute direction for standard CNC and manual mill spindles
• 2-flute design promotes chip evacuation in slot and profile milling applications
• Single-end configuration allows full use of overall length before regrind or replacement

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide ball end mill for standard 3/16-inch collet chucks and end mill holders on CNC machining centers and manual vertical mills.

Installation Notes

Installation is performed by machinists or CNC operators. Power down and lock out the spindle before changing tooling. Seat the shank fully and securely in a clean, properly sized collet or end mill holder to prevent runout. Verify spindle speed and feed rate settings against the material being cut before initiating the program cycle.
