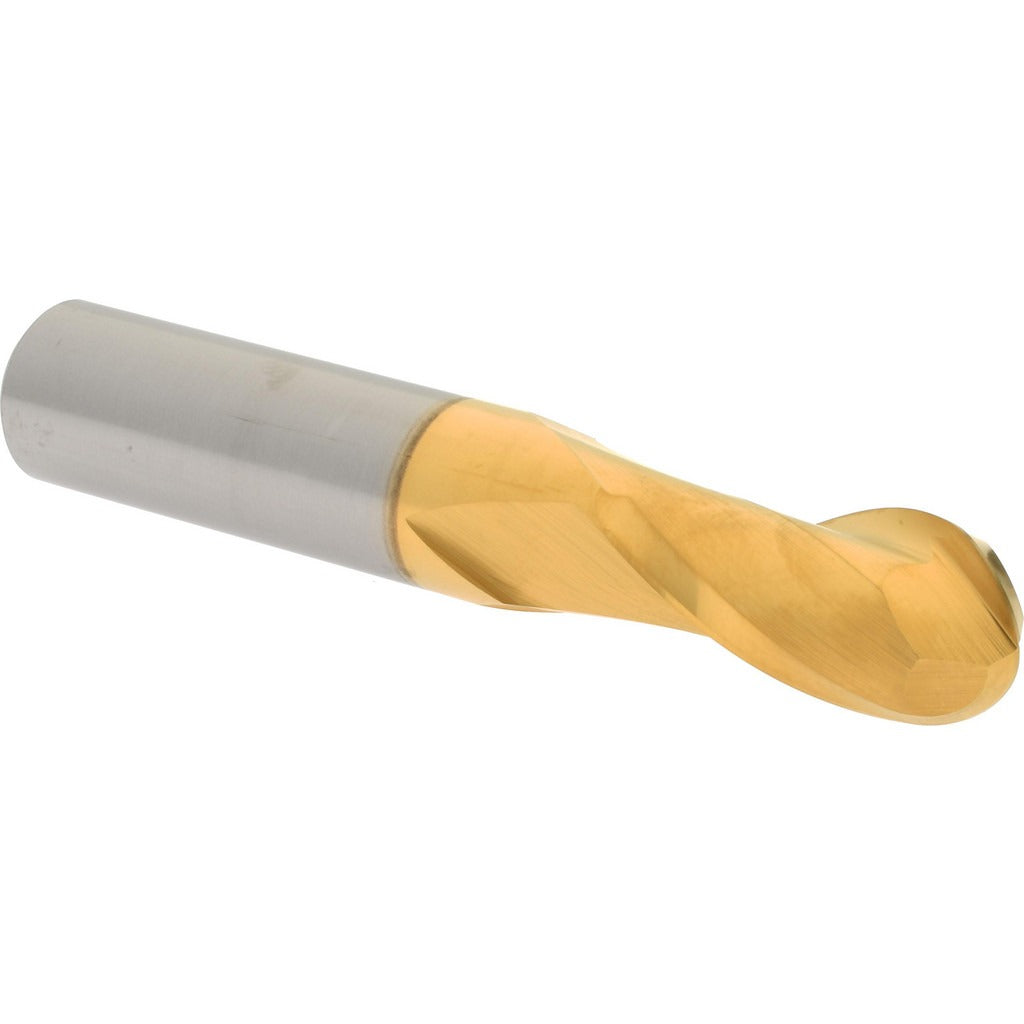

Hertel E6249032 Ball End Mill 0.5 in 2 Flute Solid Carbide

Product Description

The HERTEL E6249032 is a solid carbide ball end mill designed for precision milling operations in metal, alloy, and hard material applications. With a 0.5 inch mill diameter and a 1 inch length of cut, it delivers controlled material removal in profiling, contouring, and slotting operations. The single-end tool features a TiN (titanium nitride) coating that extends tool life by reducing friction and improving wear resistance at the cutting edge. Machinists and tool-and-die professionals rely on this geometry for consistent surface finishes in both conventional and CNC milling setups.

This end mill is suited for use in vertical machining centers and manual knee mills where a ball-nose profile is required for 3D contouring, radius milling, or blending operations. The 0.5 inch shank diameter provides rigid tool holding in standard ER and set-screw style collet chucks. The right-hand cutting direction and right-hand flute spiral are compatible with standard spindle rotation on most vertical mill configurations. With a 3 inch overall length, it offers adequate reach for moderate-depth workpiece features without excessive overhang.

Key Features

• 0.5 inch ball nose diameter for contour and radius milling
• Solid carbide construction for rigidity and heat resistance
• TiN coating reduces tool wear and extends cutting life
• 2-flute design promotes chip evacuation in ferrous and non-ferrous materials
• Right-hand cut and right-hand helix for standard CNC and manual mill spindles
• Single-end configuration with 1 inch length of cut and 3 inch overall length

Compatibility

Designed as an OEM-style replacement and standard tooling option for CNC vertical machining centers and manual mills accepting a 0.5 inch shank diameter end mill holder or collet chuck.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer guidelines for tool holding and runout specifications. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank to the recommended engagement depth in the collet or tool holder to minimize runout and prevent pull-out during cutting. Do not exceed the recommended depth of cut or feed rate for the workpiece material and coating type.
