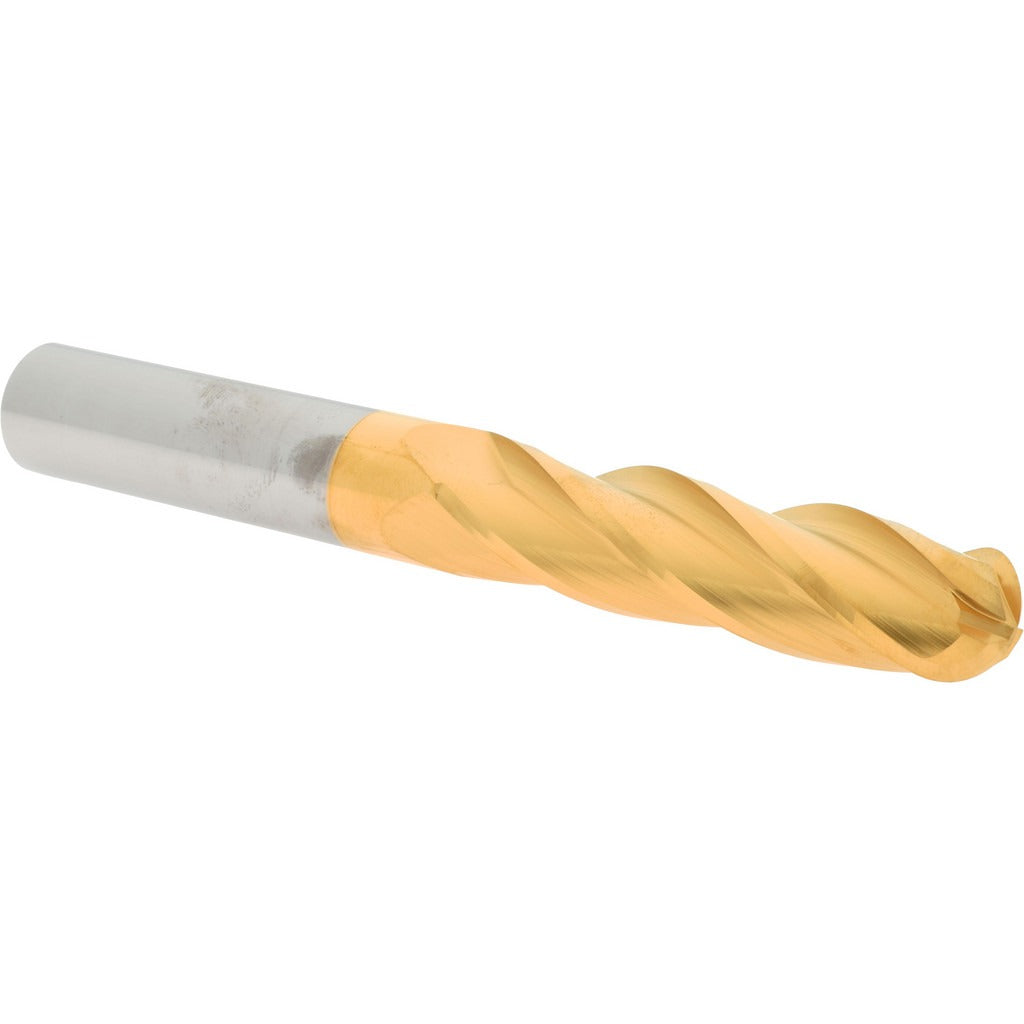

Hertel E6062048 Ball End Mill 0.75 in 4 Flute Carbide Tin

Product Description

The HERTEL E6062048 is a solid carbide ball end mill designed for high-performance milling operations in metal, composite, and hard material applications. Built as a single-end tool, it features a 0.75 inch mill diameter with a 3 inch length of cut and a 6 inch overall length. The four-flute, right-hand cutting geometry delivers efficient chip evacuation and smooth surface finishes. A TiN (Titanium Nitride) coating improves wear resistance and extends tool life in ferrous and non-ferrous materials. This end mill is suited for machinists and toolroom professionals running CNC mills and machining centers requiring precise contour and profile work.

This end mill is well-suited for 3D contouring, profiling, and slotting operations in job shops, tool and die environments, and production machining settings. The ball nose geometry allows for smooth curved surface generation and is commonly used in mold making, die sinking, and contour finishing passes. The 3/4 inch shank diameter provides rigid tool holding compatibility with standard collet chucks and end mill holders used on vertical and horizontal machining centers.

Key Features

• 0.75 inch mill diameter with ball nose geometry for contour and profile milling
• 3 inch length of cut supports reach into deep pockets and cavities
• 4-flute design for improved surface finish and material removal rate
• Solid carbide construction for rigidity and heat resistance
• TiN coating for enhanced wear resistance and extended tool life
• Right-hand cut and right-hand flute direction for standard CNC spindle compatibility
• Single-end design with 3/4 inch shank for secure tool holding

Compatibility

Designed for use in standard CNC machining centers and milling machines accepting a 3/4 inch shank diameter via collet chuck, end mill holder, or hydraulic tool holder.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before mounting or removing tooling. Verify shank runout and holder cleanliness before securing the tool to maintain concentricity. Follow machine manufacturer torque recommendations for the tool holding system in use.
