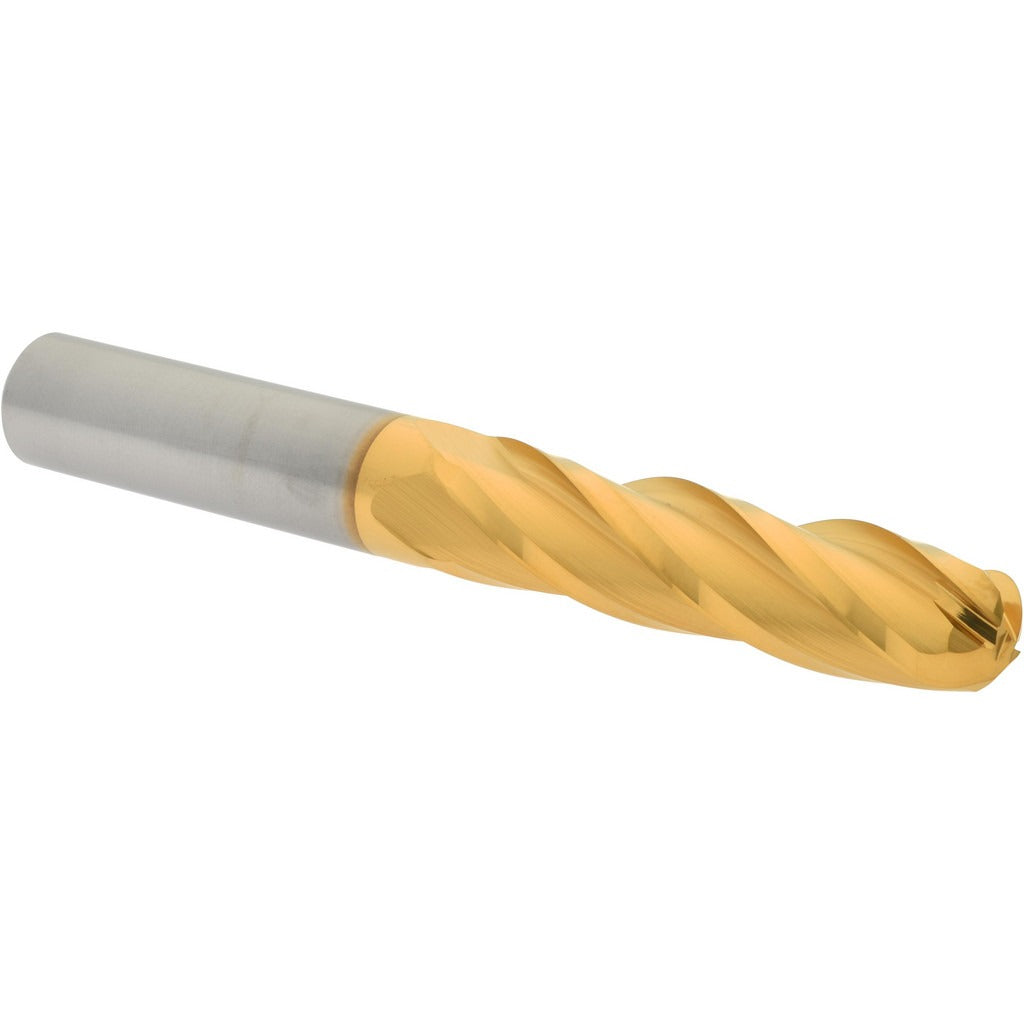

Hertel E6060032 Ball End Mill 0.5 in 4 Flute Solid Carbide

Product Description

The HERTEL E6060032 is a single-end ball end mill designed for contour milling, profiling, and 3D surface work in ferrous and non-ferrous materials. Built from solid carbide and coated with titanium nitride (TiN), it offers improved hardness and heat resistance compared to uncoated high-speed steel tooling. The 0.5 inch cutting diameter and 2 inch length of cut make it well suited for medium-depth pocket milling and slotting operations. With 4 right-hand flutes and a right-hand cutting direction, it delivers a smooth finish and efficient chip evacuation at standard CNC feeds and speeds.

This end mill is used in CNC machining centers, vertical mills, and manual knee mills for production and repair work in shop environments. It is a common choice for die and mold work, fixture fabrication, and general-purpose contouring. The 0.5 inch shank diameter fits standard collets and end mill holders found in most machine shops. The 4 inch overall length provides adequate reach for most medium-depth applications without sacrificing rigidity.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• TiN coating increases surface hardness and reduces friction at the cutting edge
• 4 right-hand flutes with right-hand cut for efficient chip removal and smooth finish
• 2 inch length of cut supports medium-depth slotting and profiling passes
• Single-end design with 0.5 inch shank diameter for standard collet and holder compatibility

Compatibility

Designed as a standard-shank solid carbide ball end mill with a 0.5 inch diameter shank, compatible with ER collets, end mill holders, and shrink-fit toolholders sized for 0.5 inch shanks.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the machine spindle is fully stopped and the tool holder is clean and free of chips before inserting the end mill. Verify runout with a dial indicator after clamping to confirm proper seating. Set feeds and speeds according to the workpiece material and depth of cut to avoid premature edge wear or tool breakage.
