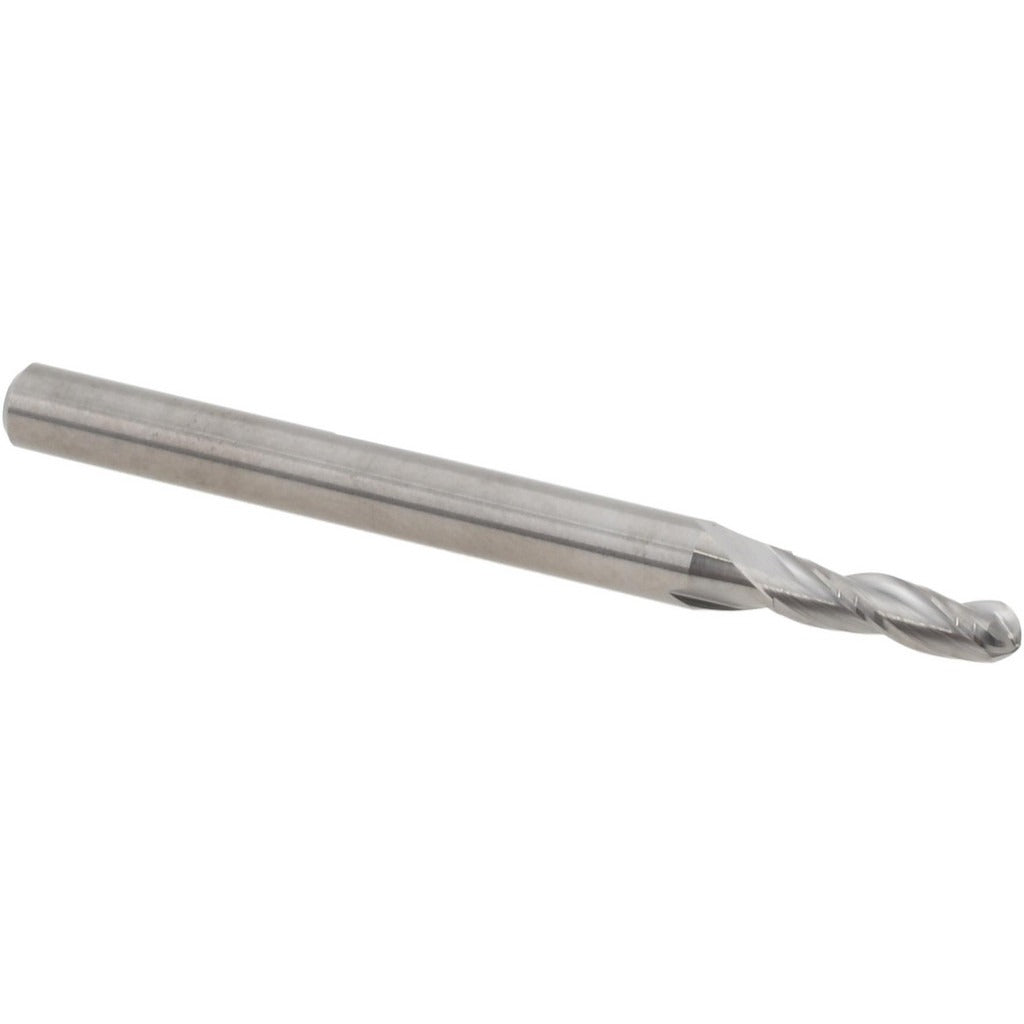

Hertel E599924729 Ball End Mill 3/32 in 3 Flute Carbide

Product Description

The HERTEL E599924729 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining applications. With a 3/32 inch (0.0938 inch decimal) ball nose diameter and a 3-flute geometry, this single-end tool delivers smooth cutting action and efficient chip evacuation in a compact form factor. The bright, uncoated finish makes it well suited for general-purpose milling where coating is not required. It is installed and operated by machinists and CNC tooling professionals working with mill centers and manual milling machines.

This end mill is suited for light to medium milling work including profiling, contouring, and slotting in ferrous and non-ferrous materials. The micrograin carbide construction supports higher speeds and feeds compared to HSS tooling and provides extended tool life in demanding cut conditions. The 5/16 inch length of cut and 1/8 inch shank diameter make this tool appropriate for close-tolerance work in confined areas or shallow cavity milling on CNC machining centers and manual knee mills.

Key Features

• 3/32 inch ball nose diameter for tight-radius profiling and contour milling
• 3-flute design supports balanced chip load and improved surface finish
• Solid micrograin carbide construction for rigidity and extended tool life
• Bright, uncoated finish suitable for general-purpose milling applications
• Right-hand cut and right-hand flute direction for standard spindle compatibility
• Single-end configuration with 1/8 inch shank for standard collet holders

Compatibility

Designed as an OEM-style replacement or direct-use ball end mill for CNC machining centers and manual milling machines accepting a 1/8 inch shank collet or end mill holder.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the collet or tool holder. Verify runout with a dial indicator after seating the shank to confirm proper concentricity before beginning a cut. Follow the tool manufacturer and machine builder guidelines for recommended speeds and feeds for the workpiece material.
