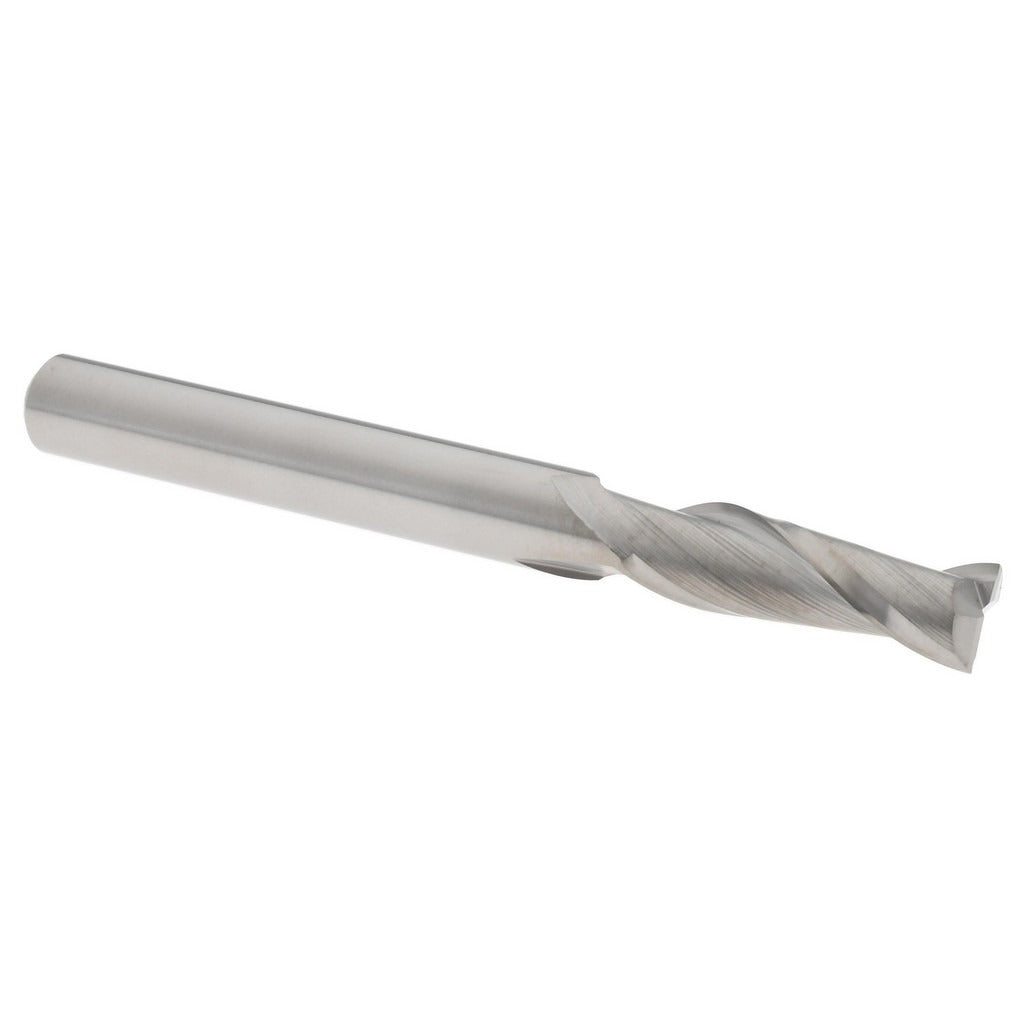

Hertel E599924683 Square End Mill 5mm 2 Flute Carbide

Product Description

The HERTEL E599924683 is a solid carbide square end mill designed for precision milling operations in metalworking and machining environments. With a 5 mm cutting diameter and a 16 mm length of cut, this tool handles slotting, profiling, and peripheral milling in a range of ferrous and non-ferrous materials. The 2-flute geometry and 30-degree right-hand helix promote efficient chip evacuation, reducing heat buildup and improving surface finish. The micrograin carbide substrate delivers hardness and wear resistance suited to demanding cutting conditions. This end mill is installed and operated by machinists and CNC tooling technicians.

This end mill is suited for light-to-medium material removal in precision machining applications. The regular length configuration and 5 mm shank diameter make it compatible with standard collet chucks and end mill holders found on CNC machining centers and manual mills. The bright, uncoated finish performs well in non-ferrous alloys, plastics, and softer steels where a coating is not required. Centercutting capability allows plunge entry directly into the workpiece.

Key Features

• 5 mm cutting diameter with 16 mm length of cut for controlled depth engagement
• 2-flute, right-hand cut and right-hand flute geometry for efficient chip clearance
• 30-degree helix angle reduces cutting forces and improves surface finish
• Micrograin solid carbide construction for hardness and tool longevity
• Centercutting design allows direct plunge entry into the workpiece
• Bright/uncoated finish suited for non-ferrous and softer material applications

Compatibility

Designed for use with standard 5 mm collet chucks and end mill holders on CNC machining centers and manual milling machines that accept regular-length square end mills.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Secure the shank fully into the collet or end mill holder and torque the retention system according to the machine manufacturer's specifications. Ensure the spindle is fully stopped and the machine is in a safe, de-energized state before changing tooling. Verify runout with a dial indicator after installation to confirm proper seating before beginning a cut.
