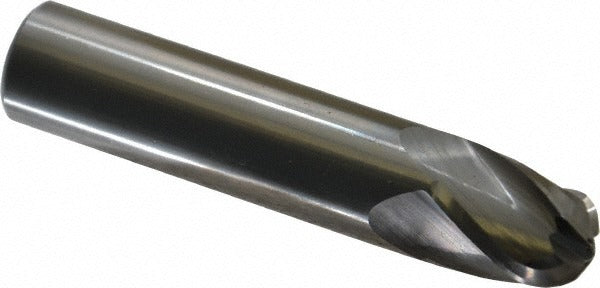

Hertel E599924536 Ball End Mill 0.625 in 4 Flute Carbide

Product Description

The HERTEL E599924536 is a solid carbide ball end mill designed for precision milling operations in metal cutting and machining applications. With a 0.625-inch mill diameter, a 0.75-inch length of cut, and a 4-flute configuration, this tool delivers efficient chip evacuation and smooth surface finishes in demanding cutting environments. The 30-degree helix angle promotes stable cutting action and reduced vibration. Right-hand cutting and right-hand flute direction make this a standard-orientation tool suited for conventional CNC milling setups. It is installed and operated by machinists and tool-and-die professionals working with vertical machining centers and CNC mills.

This ball end mill is suited for contouring, profiling, and 3D surface milling in ferrous and non-ferrous materials. The uncoated solid carbide construction performs well in applications where base carbide hardness is sufficient, including dry or minimally lubricated cuts in aluminum, steel, and similar materials. The single-end design means the tool is replaced rather than reversed when worn. Overall length is 3 inches, with a 0.625-inch shank diameter for direct collet or end mill holder mounting on standard tooling.

Key Features

• 0.625-inch mill diameter with matching 0.625-inch shank diameter for balanced rigidity
• 4-flute design supports high feed rates and improved finish quality
• 30-degree helix angle reduces cutting forces and promotes smooth chip flow
• Solid carbide construction provides hardness and wear resistance across a wide range of materials
• Uncoated finish suitable for applications not requiring thermal barrier or lubricity coatings
• Single-end, right-hand cut configuration for standard CNC milling setups

Compatibility

Designed as a standard single-end ball nose end mill compatible with CNC machining centers and manual mills using collet chucks or end mill holders with a 0.625-inch bore.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank fully within the collet or tool holder to the recommended engagement depth before tightening. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling. Follow machine manufacturer guidelines and applicable shop safety standards when setting tool offsets and runout tolerances.
