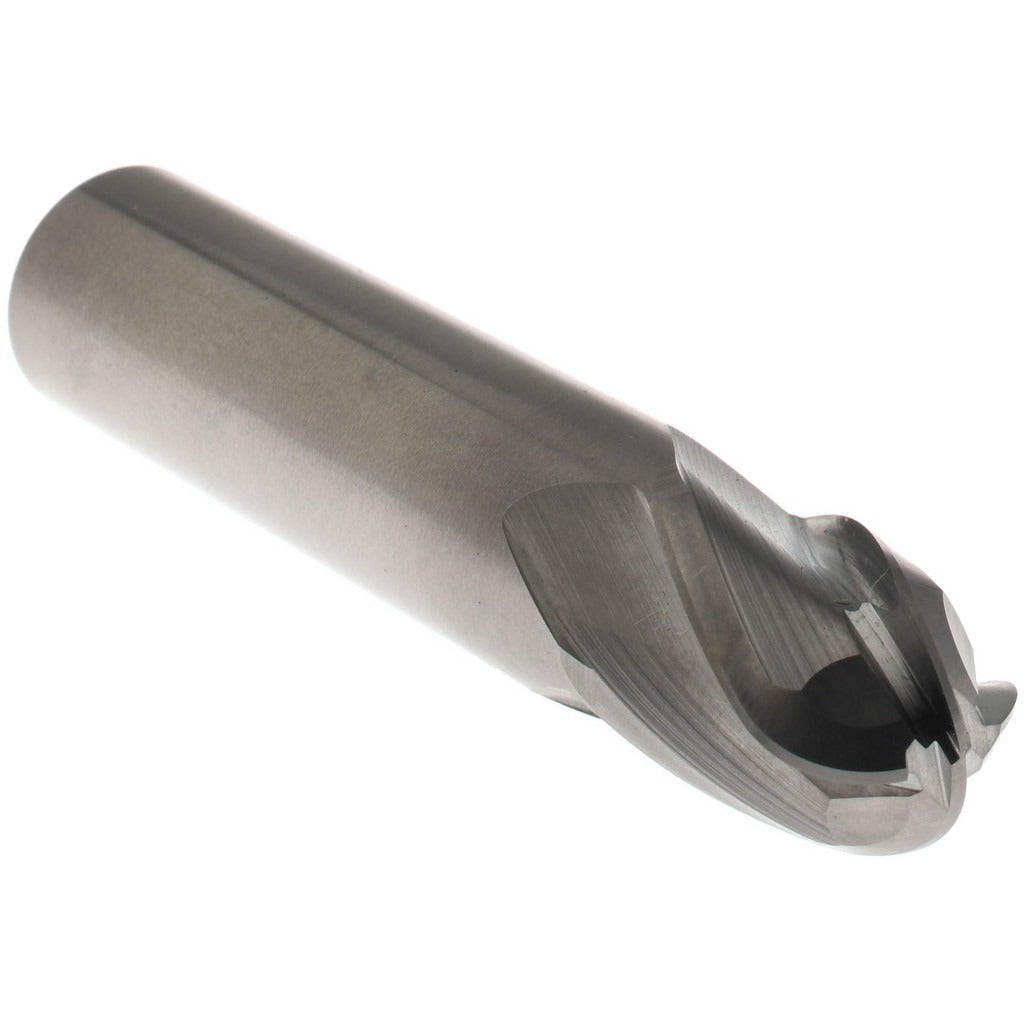

Hertel E599924533 Ball End Mill 0.5 in 4 Flute Carbide

Product Description

The HERTEL E599924533 is a solid carbide ball end mill designed for precision milling operations in metal, composite, and engineered materials. Built with 4 flutes and a 30-degree helix angle, it delivers efficient chip evacuation and a smooth surface finish in finishing and semi-finishing passes. The ball nose geometry allows contouring, profiling, and 3D surface work that flat-end tooling cannot perform. With a 0.5-inch cutting diameter and 0.625-inch length of cut, this tool is well suited for moderate-depth passes where rigidity and accuracy are priorities. Machinists and toolroom operators install this style of end mill in CNC machining centers and manual knee mills.

This end mill is intended for use in metalworking and machining applications including die and mold work, contoured surface milling, and cavity profiling. The uncoated bright finish makes it suitable for use with cutting fluids in ferrous and non-ferrous materials. It operates as a single-end tool with a right-hand cut and right-hand flute direction, which is standard for the majority of CNC and manual milling setups. The 0.5-inch shank diameter fits standard ER collet chucks, end mill holders, and Weldon-style tool holders commonly found in production and job shop environments.

Key Features

• Solid carbide construction for rigidity and wear resistance compared to HSS tooling
• Ball nose geometry enables 3D contouring, profiling, and ramp milling
• 4-flute design balances chip evacuation with surface finish quality
• 30-degree helix angle reduces cutting forces and improves finish on vertical walls
• Uncoated bright finish compatible with cutting fluid applications across a range of workpiece materials
• Single-end configuration with right-hand cut and right-hand flute direction

Compatibility

Designed as a standard single-end ball nose end mill with a 0.5-inch shank diameter, compatible with ER collet chucks, end mill holders, and Weldon-style tool holders that accept 0.5-inch shank tooling.

Installation Notes

Installation is performed by machinists or toolroom technicians on CNC machining centers or manual milling machines. Ensure the spindle is fully stopped and the machine is in a safe lockout state before changing tooling. Seat the shank fully into the holder and torque the retention screw or collet nut to the tool holder specification. Verify runout with a dial indicator before beginning a cut, as excessive runout will accelerate wear on solid carbide tooling.
