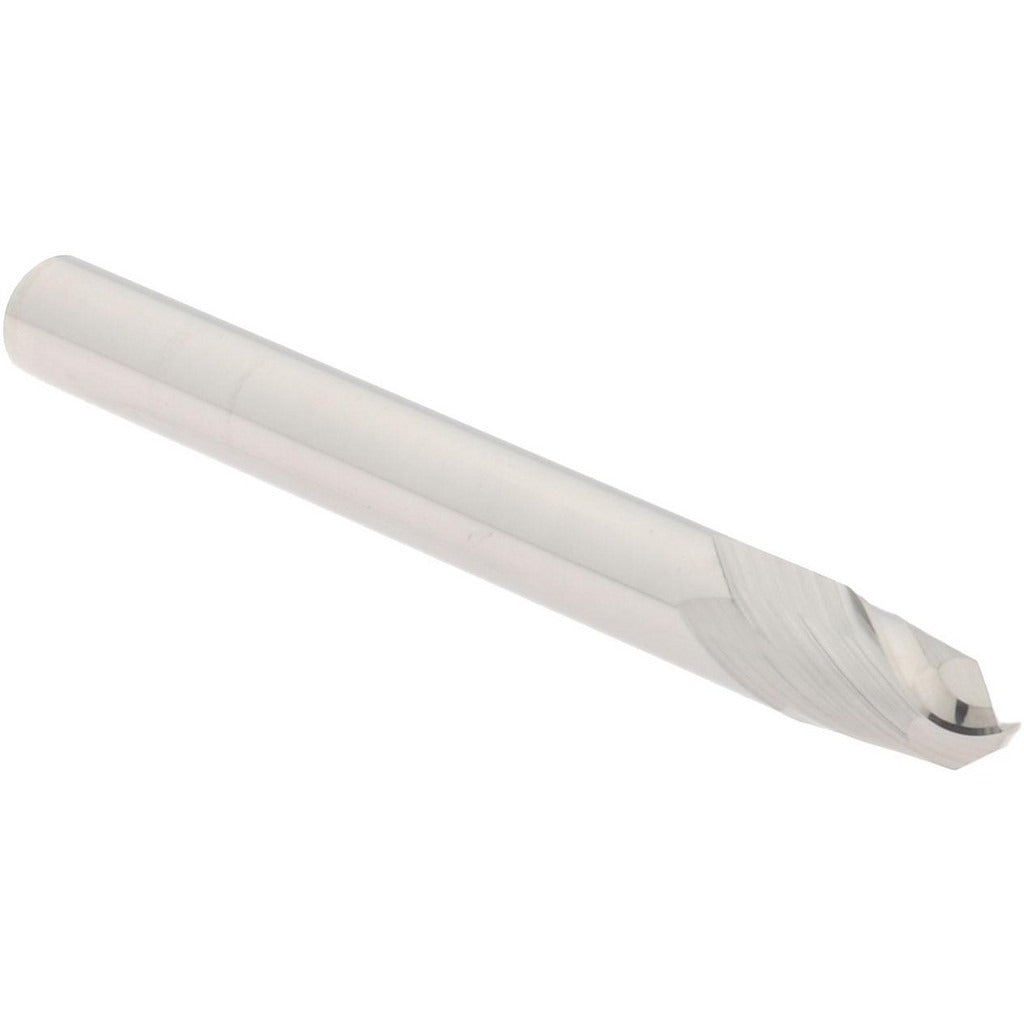

Hertel E599924487 Ball End Mill 0.1875 in 2 Flute Carbide

Product Description

The HERTEL E599924487 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining applications. With a 0.1875 inch (3/16 inch) mill diameter and a 0.3125 inch length of cut, this single-end tool is suited for profiling, contouring, and finishing passes on ferrous and non-ferrous materials. The micrograin solid carbide construction provides rigidity and wear resistance at elevated cutting speeds. A 30-degree right-hand helix promotes chip evacuation and reduces cutting forces. This tool is installed and operated by machinists, toolroom technicians, and CNC operators working with vertical mills and machining centers.

This ball end mill is appropriate for light to medium milling work in job shop, production, and toolroom environments. The uncoated micrograin carbide grade performs well on aluminum, brass, plastics, and softer steels where a base carbide edge is preferred over a coated alternative. The 0.1875 inch shank diameter matches the mill diameter, allowing direct chuck or collet holding in standard tooling setups. The 2.0 inch overall length provides adequate reach for shallow-to-medium cavity work without sacrificing rigidity.

Key Features

• Solid micrograin carbide construction for extended tool life and edge stability
• 0.1875 inch ball end diameter for profiling and contour milling
• 0.3125 inch length of cut suitable for shallow cavity and finishing passes
• 30-degree right-hand helix for efficient chip evacuation
• Uncoated finish — compatible with cutting fluids and suited for non-ferrous and softer ferrous materials
• Single-end design with right-hand cutting direction

Compatibility

Designed as a direct-chuck or collet-mounted replacement end mill for CNC machining centers, vertical mills, and toolroom mills accepting a 3/16 inch shank diameter collet or end mill holder.

Installation Notes

Installation and tool changes must be performed with the machine spindle fully stopped and the control in an e-stop or tool-change state. Secure the shank in a properly sized collet or end mill holder to the torque specified by the toolholder manufacturer. Inspect the cutting edge and shank for chips or runout before operation. Consult machine manufacturer guidelines and applicable shop safety standards before use.
