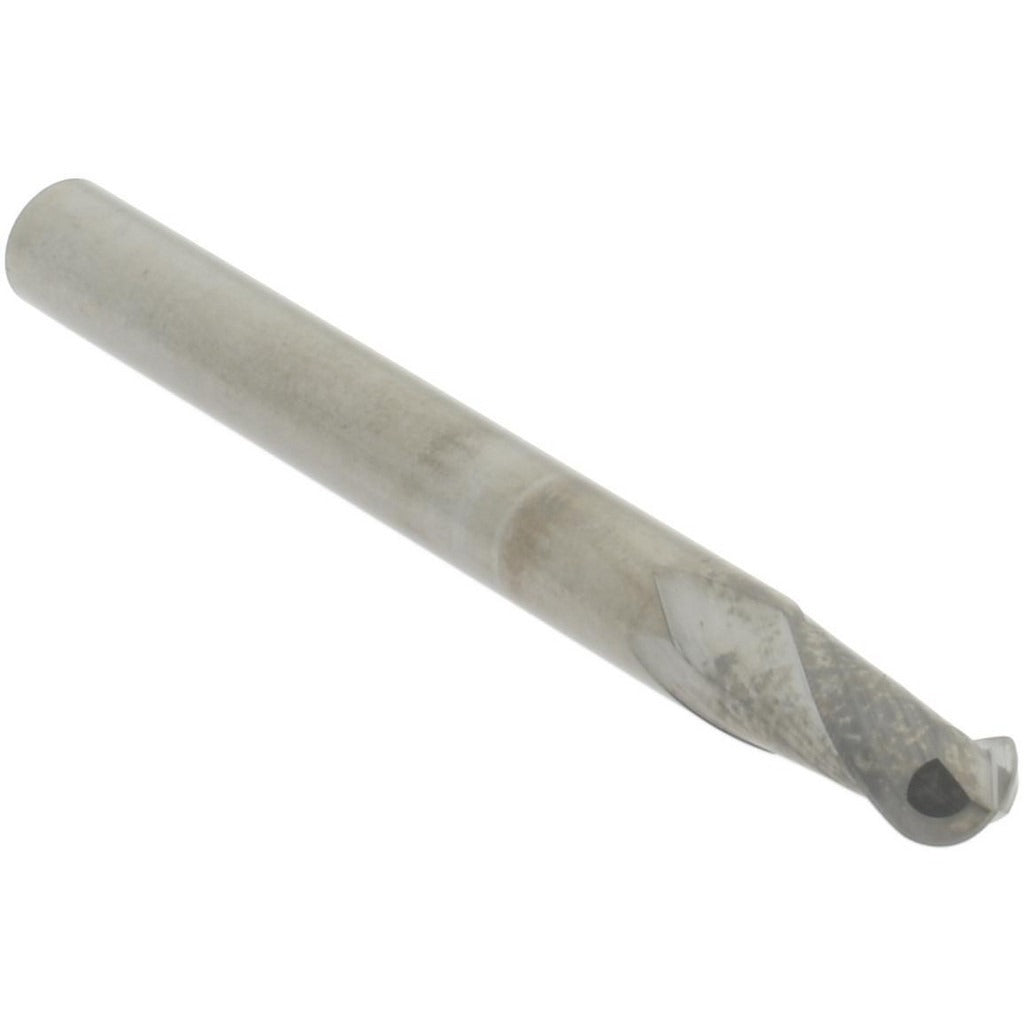

Hertel E599924481 Ball End Mill 3/16 in 2 Flute Carbide

Product Description

The HERTEL E599924481 is a solid carbide ball end mill designed for precision milling operations in metal, composite, and hardened material applications. With a 3/16-inch mill diameter and a 3/8-inch length of cut, this single-end tool delivers accurate profiling, contouring, and slotting in tight-tolerance work. The 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces. Solid carbide construction provides the rigidity and wear resistance required for demanding machining environments. This tool ships in a bright, uncoated finish, making it suitable for a range of base materials where coating is not required or preferred.

This end mill fits standard machining center and manual mill setups where a 3/16-inch shank diameter collet or toolholder is available. It is appropriate for finish milling, die work, mold work, and contour passes in both CNC and manual milling applications. The 2-inch overall length keeps the tool compact, minimizing deflection during light to moderate cuts. Machinists and tool-and-die professionals working on close-tolerance 3D profiles and radius features will find this geometry well suited to those tasks.

Key Features

• Solid carbide construction for rigidity and extended tool life in hard materials
• Ball end geometry enables 3D contouring, radius milling, and profiled surface work
• 30-degree right-hand spiral helix for efficient chip evacuation
• 2-flute design balances chip clearance with core strength at this diameter
• Center-cutting capable, allowing plunge entry into the workpiece
• Bright/uncoated finish suitable for a wide range of base material types

Compatibility

Designed as an OEM-style solid carbide ball end mill for use in standard 3/16-inch I.D. collets, shrink-fit holders, or equivalent toolholding systems on CNC machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before changing tooling. Seat the shank fully into the collet or toolholder to the recommended gauge line and torque the retention mechanism per the toolholder manufacturer specifications. Inspect the cutting edges for chips or damage before each use.
