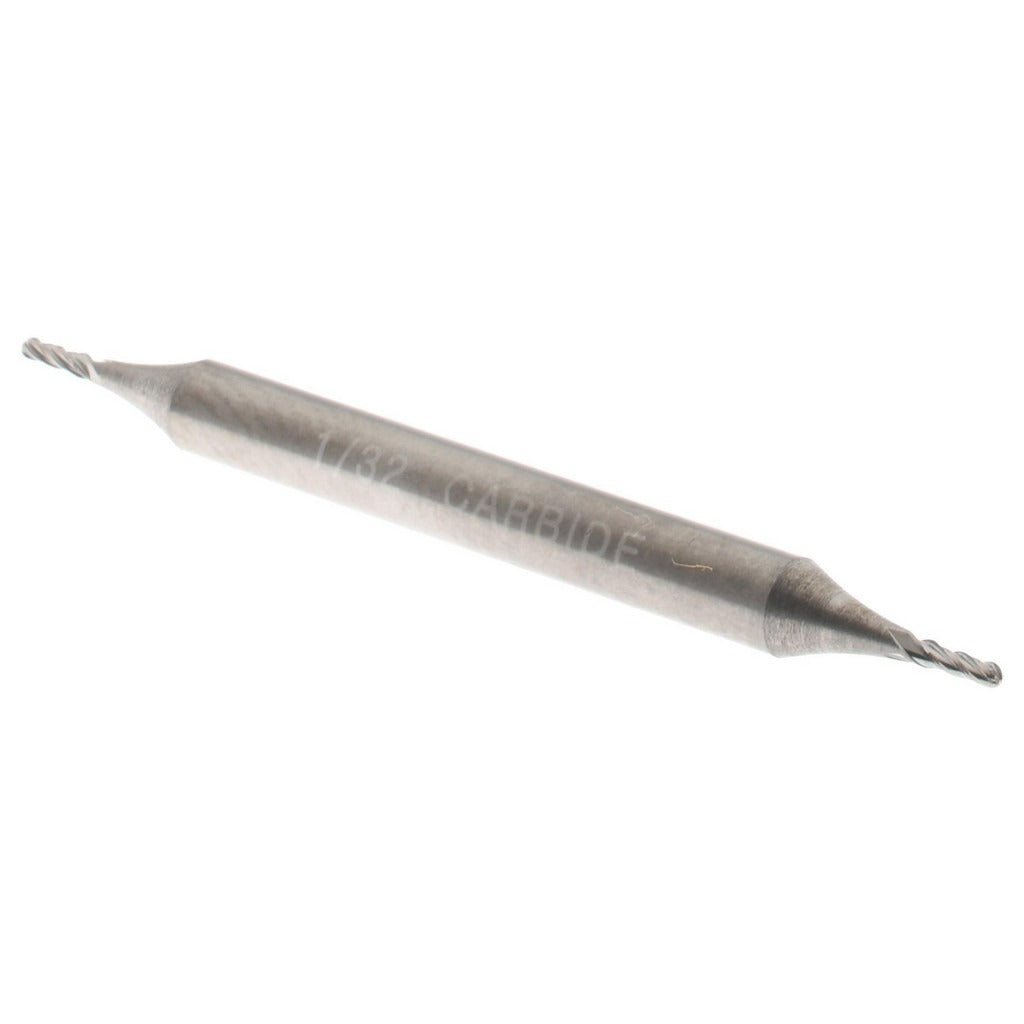

Hertel E599924404 Ball End Mill 0.0313 in 4 Flute Carbide

Product Description

The HERTEL E599924404 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining applications. With a 0.0313 inch (1/32 inch) mill diameter and a 0.0625 inch (1/16 inch) length of cut, this tool is built for fine detail work in tight geometries and small-feature profiling. The four-flute spiral configuration supports efficient chip evacuation while maintaining surface finish quality. The bright uncoated finish makes this tool suitable for a range of general-purpose cutting operations. Machinists and CNC operators working in job shops, tool rooms, and production environments are the primary users.

This ball end mill is suited for small-feature contouring, slotting, and profiling tasks on ferrous and non-ferrous materials. The double-end design provides two usable cutting ends, extending tool life and reducing per-part cost in production runs. With a 1/8 inch shank diameter and a 1-1/2 inch overall length, it mounts in standard collet chucks and end mill holders on CNC machining centers and manual mills. Its compact geometry makes it particularly effective in mold-making, die work, and precision component machining where tight radii and fine detail are required.

Key Features

• 0.0313 inch (1/32 inch) ball nose diameter for fine detail and small-radius profiling
• Four-flute spiral design for improved chip removal and surface finish
• Double-end configuration for extended usable tool life
• Solid carbide construction for rigidity and wear resistance
• Right-hand cutting and right-hand flute direction for standard CNC spindle compatibility
• Bright uncoated finish suitable for general-purpose milling applications

Compatibility

Designed as an OEM-style replacement or standard tooling addition for CNC machining centers and manual mills accepting a 1/8 inch shank diameter end mill holder or collet chuck.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down or in a safe state before changing tooling. Seat the shank fully in the collet or holder to the recommended gauge line and torque the retention mechanism per the machine tool manufacturer specifications. Verify runout with a dial indicator before beginning a cutting operation.
