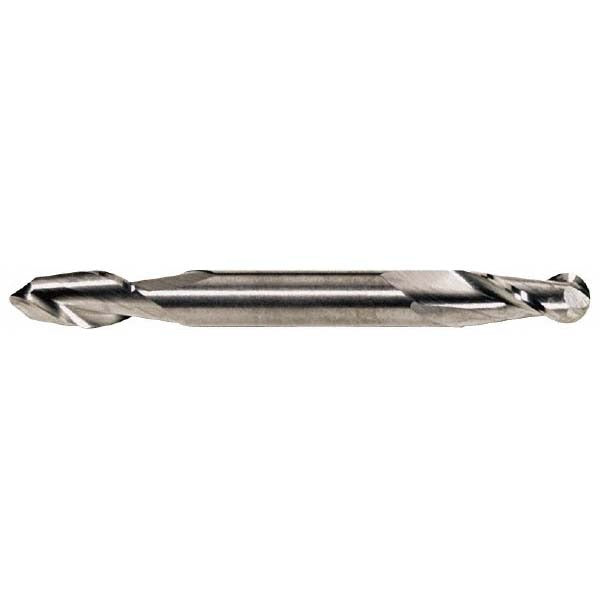

Hertel E599924402 Ball End Mill 0.5in 2 Flute Solid Carbide

Product Description

The HERTEL E599924402 is a solid carbide ball end mill designed for precision milling operations in metalworking and machining applications. This double-end tool features a 0.5-inch mill diameter, a 1-inch length of cut, and a 4-inch overall length, giving machinists flexibility across a range of contouring, profiling, and finishing passes. The solid carbide construction provides the rigidity and wear resistance needed for consistent performance in ferrous and non-ferrous materials. With 2 flutes and a right-hand cutting and flute direction, this end mill suits shops running standard CNC and manual milling setups where surface finish and dimensional accuracy are priorities.

This end mill is suited for use in production machining environments, tool rooms, and job shops handling contoured surfaces, die work, and complex 3D geometries. The ball nose profile is especially effective for finishing curved surfaces and blended transitions. The double-end configuration extends tool life by offering a second cutting end when the first shows wear, making it a practical choice for high-volume or cost-conscious operations. Machinists working in aerospace, mold-and-die, or general precision machining will find this geometry well matched to their finishing requirements.

Key Features

• Solid carbide construction for rigidity and extended tool life in demanding materials
• Ball nose geometry designed for contouring, 3D profiling, and curved-surface finishing
• Double-end design provides two usable cutting ends per tool
• 2-flute configuration supports chip evacuation in a range of milling applications
• Right-hand cutting and right-hand flute direction for standard CNC spindle compatibility
• 0.5-inch shank diameter matches common collet and end mill holder sizes

Compatibility

Designed as an OEM-style replacement or direct-fit tooling option for standard milling machines and CNC machining centers accepting a 0.5-inch shank diameter end mill holder or collet.

Installation Notes

Installation is performed by qualified machinists or tool crib personnel. Secure the shank fully into a properly sized collet or end mill holder, and verify runout before beginning a cut. Ensure the machine spindle is fully stopped and the control is in a safe state before loading or changing tooling. Follow shop-specific feeds, speeds, and depth-of-cut guidelines for the workpiece material being machined.
