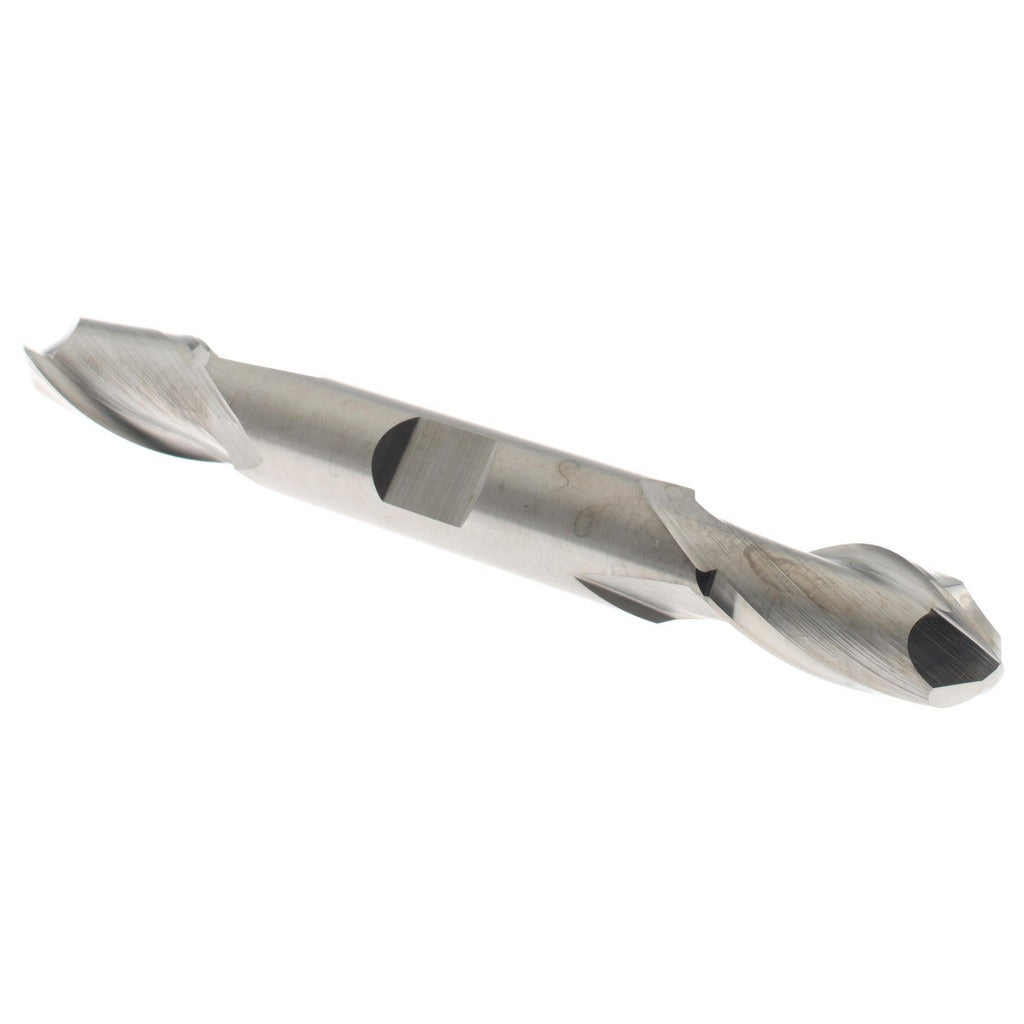

Hertel E599924399 Ball End Mill 0.375 in 2 Flute Carbide

Product Description

The HERTEL E599924399 is a solid carbide double-end ball end mill designed for precision milling operations in metalworking and machining applications. With a 0.375 inch mill diameter and a 0.75 inch length of cut, this tool delivers consistent performance in contouring, profiling, and slot milling. The double-end configuration provides two usable cutting ends, extending tool life and reducing per-cut cost. Two right-hand flutes with a right-hand cutting direction make this mill suitable for conventional milling setups on CNC machining centers and manual mills. Solid carbide construction provides rigidity and wear resistance compared to high-speed steel alternatives.

This end mill is suited for use on CNC machining centers and manual knee mills in job shop, production, and toolroom environments. It is commonly used by machinists and tool-and-die professionals for finish milling, profiling curved surfaces, and creating radius features in ferrous and non-ferrous materials. The 0.375 inch shank diameter fits standard ER and straight-bore toolholders. The 3.5 inch overall length accommodates moderate reach requirements without sacrificing rigidity.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding milling operations
• Double-end design provides two cutting ends per tool, extending usable tool life
• 0.375 inch mill diameter with 0.75 inch length of cut for precise profiling and contouring
• 2-flute geometry with right-hand cut and right-hand flute direction
• 3.5 inch overall length with 0.375 inch shank diameter for compatibility with standard toolholders

Compatibility

Designed as an OEM-style replacement or standard toolroom end mill compatible with standard straight-bore and collet-style toolholders accepting a 0.375 inch shank diameter.

Installation Notes

Installation and use of this end mill should be performed by qualified machinists familiar with CNC or manual milling equipment. Ensure the spindle is fully powered down and at rest before changing tooling. Secure the shank fully within the toolholder to the recommended gauge line and verify runout before beginning a cut. Follow machine manufacturer guidelines and applicable shop safety standards when selecting feeds, speeds, and depths of cut.
