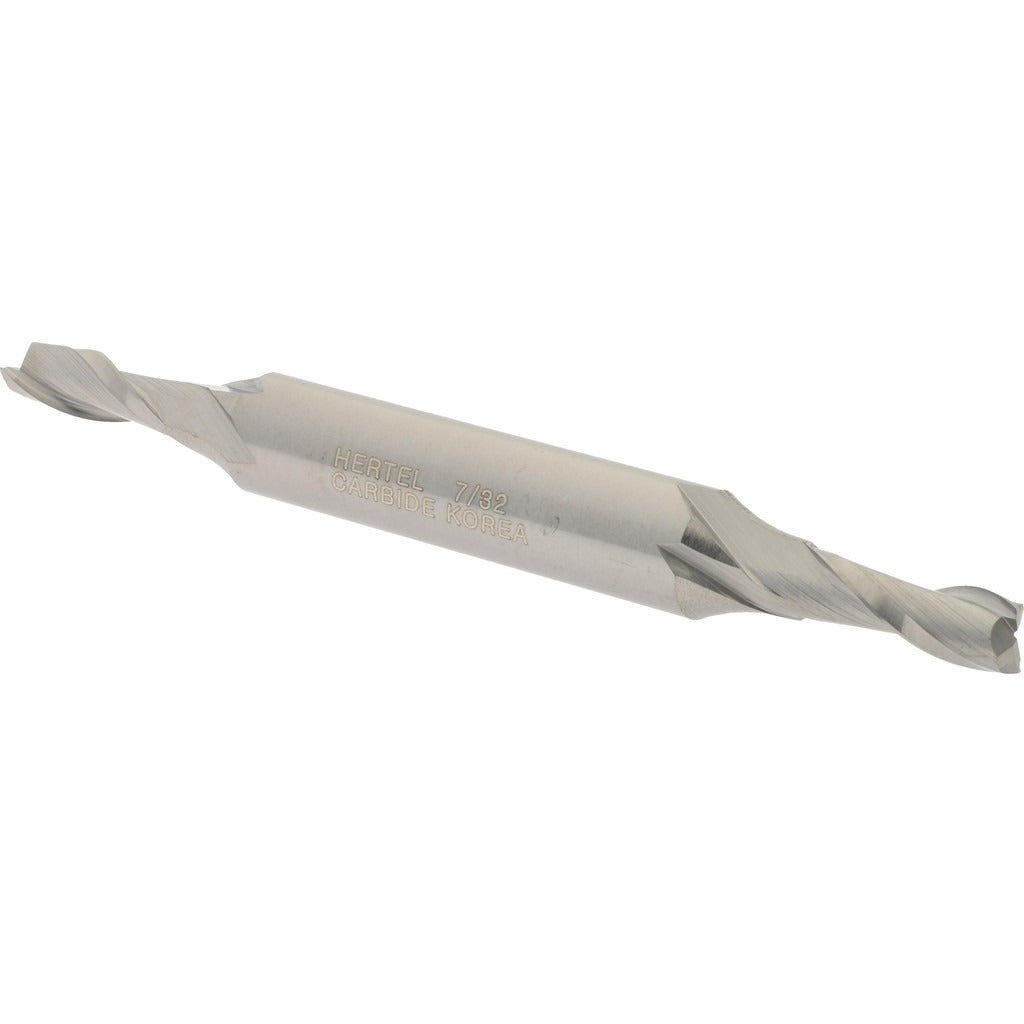

Hertel E599924309 Square End Mill 7/32 in 2 Flute Carbide

Product Description

The HERTEL E599924309 is a solid carbide square end mill designed for precision milling operations in metal, composites, and engineering plastics. With a 7/32 inch (0.2188 inch) cutting diameter and a 5/8 inch length of cut, this tool removes material efficiently at tight tolerances. The double-end configuration doubles tool life between regrinds. A 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces. This end mill is uncoated and suited for applications where coolant or cutting fluid is used, and it is typically installed by machinists and tool-and-die professionals in CNC or manual milling environments.

This end mill fits residential machine shops, production environments, and toolroom applications where small-diameter precision cutting is required. The centercutting geometry allows plunge milling in addition to conventional peripheral and slot milling. The right-hand spiral flute design is compatible with standard right-hand spindle mills. No specific system compatibility data was provided by the manufacturer for this SKU beyond the dimensional and geometry specifications listed.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• Double-end design extends usable tool life before replacement
• Centercutting capable — supports plunge entry without a pre-drilled hole
• 30-degree helix angle promotes efficient chip evacuation and smooth cutting action
• Spiral flute geometry reduces chatter and deflection on small-diameter cuts
• Right-hand cut direction compatible with standard CNC and manual mill spindles

Compatibility

Designed as an OEM-style solid carbide square end mill for use in standard 3/8 inch collets or end mill holders on CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and locked out before changing tooling. Secure the 3/8 inch shank in a clean, properly sized collet or end mill holder to the recommended clamping torque for that holder type. Inspect the cutting edges for chips or damage before each use and replace the tool if edge integrity is compromised.
