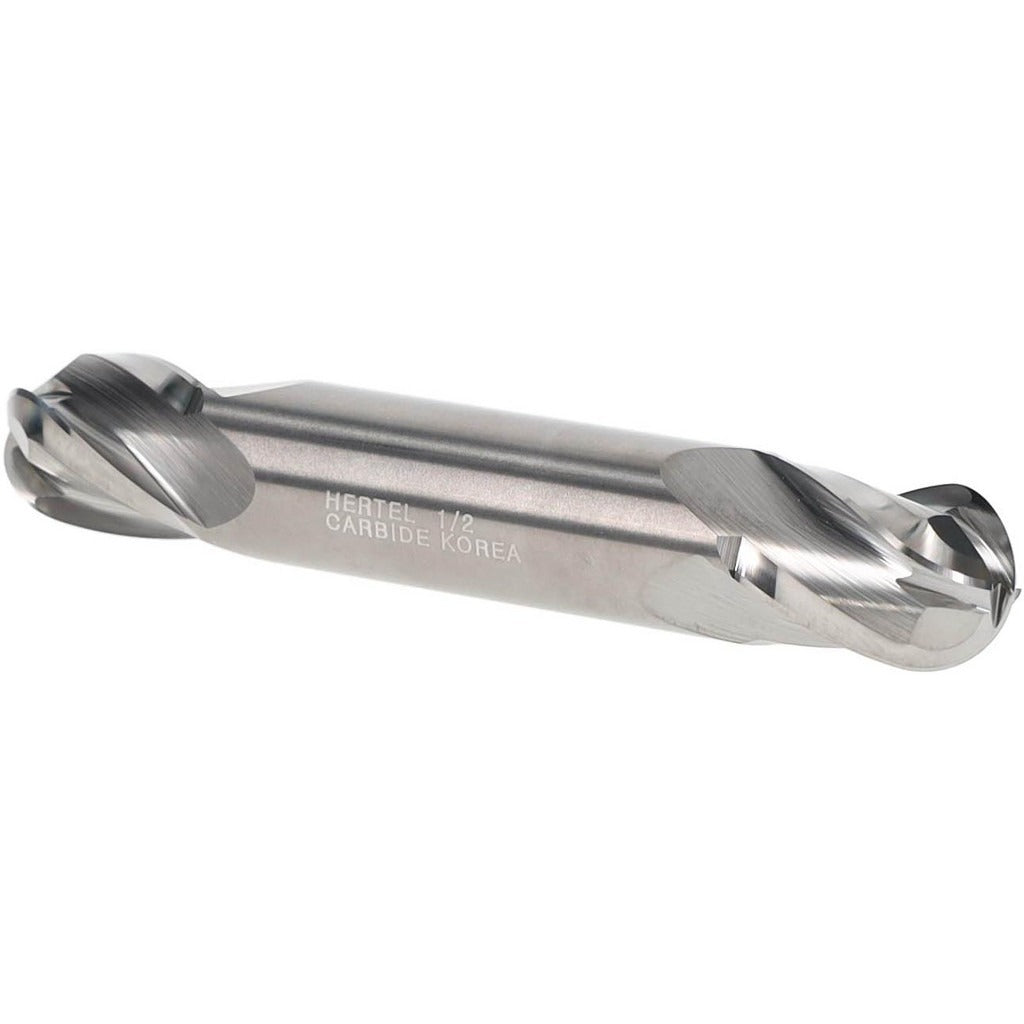

Hertel E5252032 Ball End Mill 0.5 in 4 Flute Solid Carbide

Product Description

The HERTEL E5252032 is a solid carbide ball end mill designed for precision milling operations in ferrous and non-ferrous materials. With a 0.5-inch mill diameter and 4-flute spiral geometry, this tool delivers efficient chip evacuation and smooth surface finishes in profiling, contouring, and slotting applications. The double-end configuration provides two usable cutting ends, extending tool life per unit. At 3 inches overall length with a 0.625-inch length of cut, the E5252032 is suited for moderate-depth finish passes where rigidity and runout control are critical. Machinists and toolroom professionals working on CNC vertical or horizontal machining centers will find this geometry appropriate for 3D contour work and die-mold applications.

This ball end mill is appropriate for use in job shops, production machining environments, and toolroom operations where consistent geometry and carbide substrate performance are required. The right-hand cutting and right-hand flute direction are standard for conventional CNC milling setups. The bright uncoated finish makes this tool suitable for applications where coating interaction with the workpiece material is a concern, or where re-grinding without coating removal is preferred. It is commonly used in aluminum, brass, mild steel, and similar machineable alloys.

Key Features

• 0.5-inch mill diameter with 0.625-inch length of cut for controlled depth profiling
• 4-flute spiral geometry for efficient chip removal and improved surface finish
• Solid carbide construction for rigidity and wear resistance at elevated cutting speeds
• Double-end design provides two cutting ends per tool, maximizing tool value
• Right-hand cut, right-hand flute direction compatible with standard CNC spindle rotation
• Bright uncoated finish suitable for re-grind programs or coating-sensitive applications

Compatibility

Designed as a standard-shank solid carbide ball end mill with a 0.5-inch shank diameter, compatible with ER collet chucks, shrink-fit holders, and other tool holders accepting 1/2-inch round shanks in CNC machining centers and manual mills.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool manufacturer's toolholder torque and runout specifications. Ensure the spindle and toolholder are clean and free of chips or debris before seating the shank. Confirm tool projection length and secure clamping before initiating any cutting cycle. Do not exceed the recommended depth of cut or feed rate for the substrate being machined.
