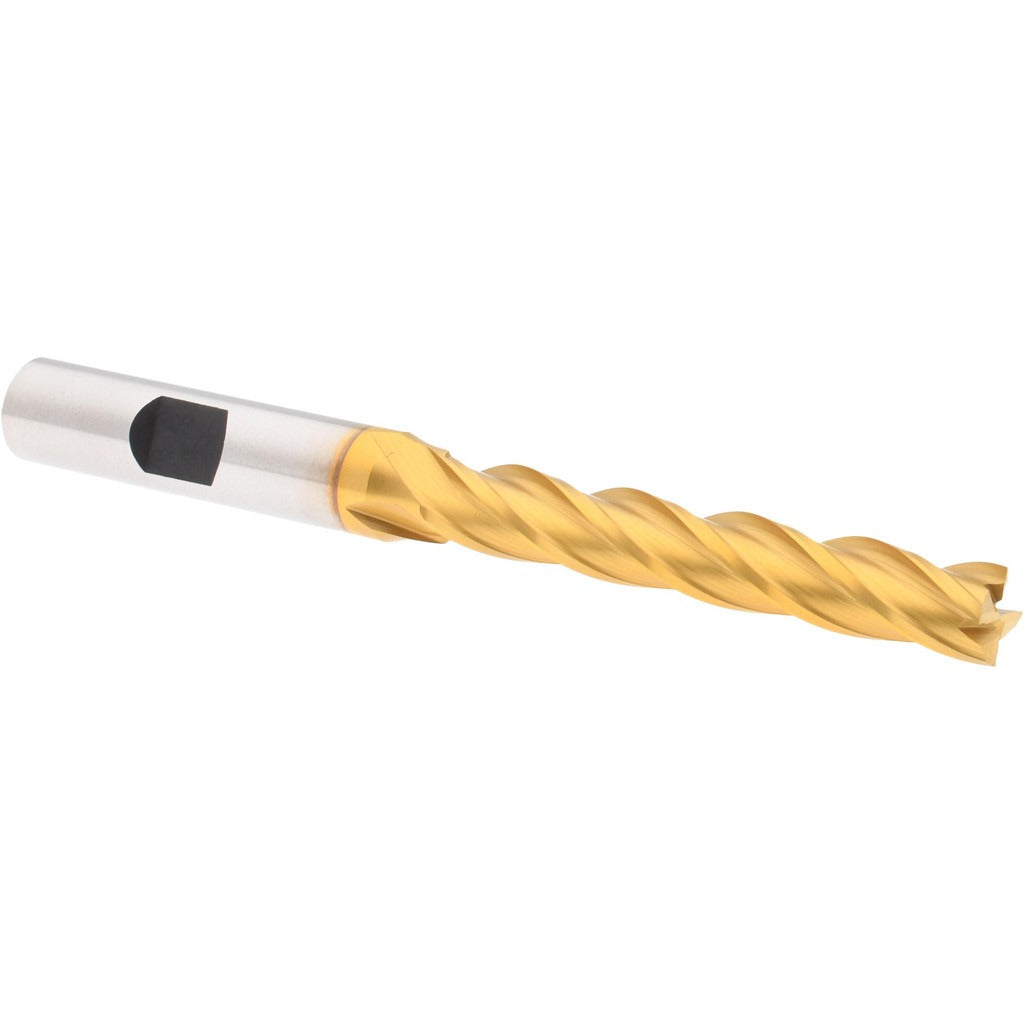

Hertel E4041020 Square End Mill 5/16 in 4 Flute Cobalt

Product Description

The HERTEL E4041020 is a cobalt square end mill designed for milling operations in metalworking and machining environments. Built from M42 cobalt high-speed steel, it delivers heat and wear resistance that outlasts standard HSS tooling when cutting alloy steels, stainless, and other tough materials. The mill features a 5/16 inch cutting diameter, a 2 inch length of cut, and a TiN (titanium nitride) coating that reduces friction and extends tool life. With 4 flutes and a right-hand cutting and flute direction, it produces a clean finish on a variety of ferrous and non-ferrous materials. Centercutting geometry allows direct plunge entry without a pre-drilled hole.

This end mill is suited for use on vertical machining centers, knee mills, and manual milling machines in job shop, production, and maintenance machining environments. The 3/8 inch shank diameter fits standard R8, collet, and end mill holder setups common to most manual and CNC milling equipment. The 3-3/4 inch overall length provides adequate reach for standard depth pocketing, slotting, and profiling operations. It is used by machinists and tool-and-die professionals working in both production and prototype applications.

Key Features

• M42 cobalt construction for improved heat resistance over standard M2 HSS tooling
• TiN finish reduces friction and increases surface hardness at the cutting edge
• Centercutting design allows direct plunge milling without pilot drilling
• 4-flute configuration balances chip evacuation and surface finish quality
• Right-hand cut and right-hand helix for standard milling machine spindle compatibility
• 3/8 inch shank fits widely available collet chucks and end mill holders

Compatibility

Designed as a direct-fit replacement end mill for standard 3/8 inch collet, R8, and end mill holder setups on vertical milling machines and CNC machining centers.

Installation Notes

Installation and tool changes must be performed with the spindle fully stopped and the machine powered down or e-stopped. Seat the shank fully into the collet or holder and tighten to the tool holder manufacturer's specified torque range using a calibrated torque wrench where required. Inspect the tool for runout with a dial indicator before beginning a cut. Worn or damaged collets increase runout and accelerate tool wear — replace collets showing visible wear or out-of-round distortion.
