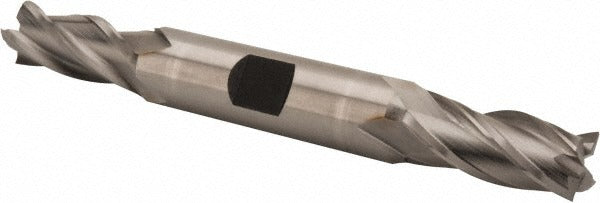

Hertel E2053028 Square End Mill 7/16 in 4 Flute Cobalt

Product Description

The HERTEL E2053028 is a cobalt square end mill designed for precision milling operations in metalworking applications. Built from M42 cobalt high-speed steel, it delivers heat resistance and edge retention in demanding cuts. The double-end configuration provides two usable cutting ends, extending tool life. Key dimensions include a 7/16 inch (0.4375 inch) cutting diameter, a 1 inch length of cut, and a 1/2 inch shank diameter with a 4-1/8 inch overall length. The 30-degree helix spiral flute geometry promotes efficient chip evacuation. Centercutting capability allows plunge milling entry without a pre-drilled hole.

This end mill is suited for general-purpose milling on steel, stainless steel, cast iron, and similar ferrous materials in job shop and production environments. The right-hand cut and right-hand flute configuration fits standard vertical milling machines, knee mills, and CNC machining centers. It is uncoated, making it appropriate for use with cutting fluid and for applications where regrinding is anticipated. The regular length profile handles standard slot milling, profiling, and peripheral milling tasks where extended reach is not required.

Key Features

• M42 cobalt construction for improved red hardness and wear resistance versus standard HSS
• Double-end design provides two cutting ends per tool
• Centercutting geometry allows direct plunge entry
• 30-degree helix spiral flute for efficient chip evacuation
• Right-hand cut and right-hand flute for standard spindle compatibility
• Uncoated finish suitable for use with cutting fluids and regrinding

Compatibility

Designed as an OEM-style replacement or standard tooling selection for 1/2 inch shank ER or R8 collets and standard end mill holders used on vertical mills and CNC machining centers.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the 1/2 inch shank securely in a matched collet or end mill holder to the minimum recommended engagement depth to prevent tool pull-out. Verify spindle direction is set to right-hand rotation before starting the cut.
