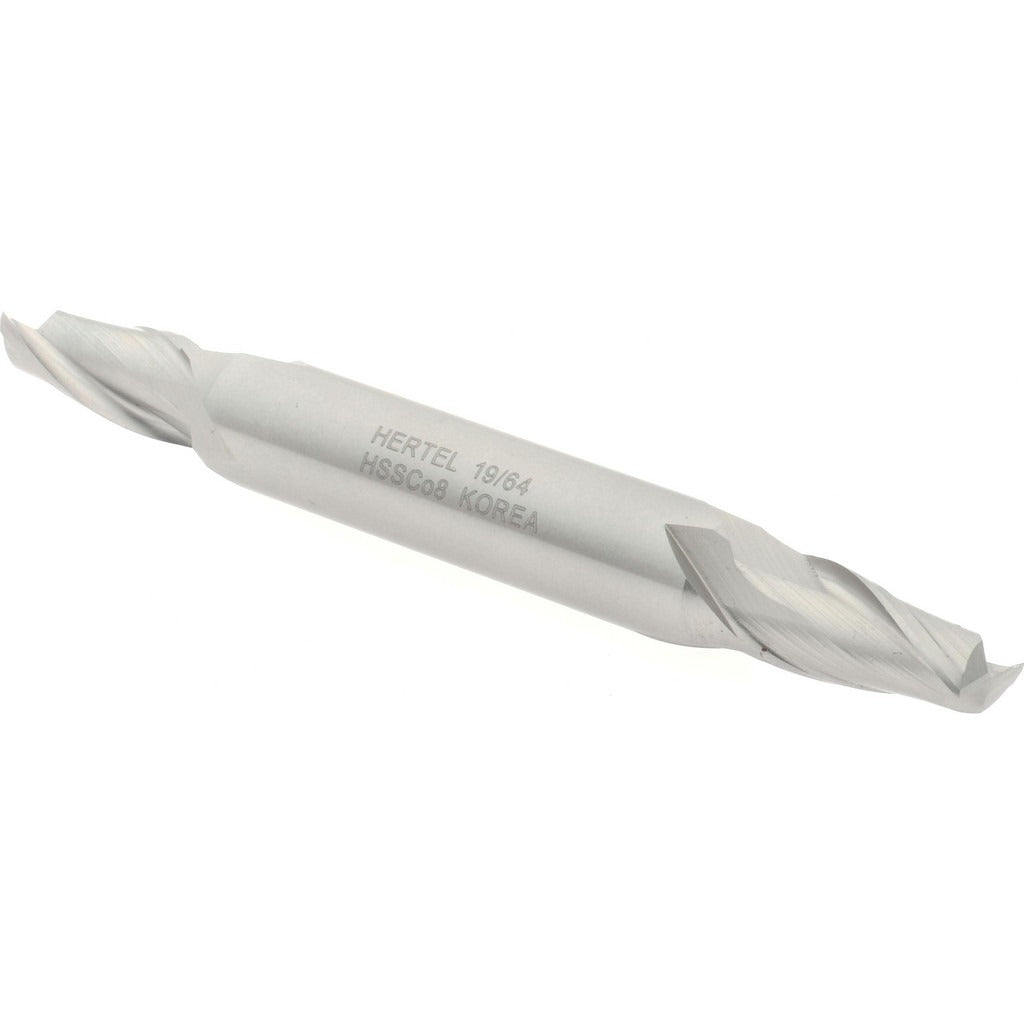

Hertel E2050019 Square End Mill 19/64 in 2 Flute Cobalt

Product Description

The HERTEL E2050019 is a cobalt square end mill designed for material removal in milling applications across a range of ferrous and work-hardened materials. Built from M42 cobalt high-speed steel, this tool offers improved heat and wear resistance compared to standard HSS end mills. It features a 19/64 inch (0.2969 inch) cutting diameter, a 9/16 inch length of cut, and a 30-degree helix angle with spiral fluting. The double-end configuration provides two usable cutting ends, extending tool life between changes. Right-hand cut and right-hand flute geometry make this a standard-direction tool compatible with conventional milling setups.

This end mill is suited for use in manual mills, knee mills, and CNC machining centers where a smaller-diameter finishing or profiling pass is required. The 3/8 inch shank diameter fits standard collets and end mill holders commonly found in job shops, toolrooms, and maintenance machining environments. The centercutting design allows plunge cutting in addition to peripheral and slot milling. At 3-1/8 inch overall length with a regular length classification, it fits compact setups without excessive overhang.

Key Features

• M42 cobalt construction for improved heat resistance and tool life in tough materials
• Double-end design provides two cutting ends per tool
• Centercutting capability allows direct plunge entry
• 30-degree helix spiral flute promotes chip evacuation and smooth cutting action
• Right-hand cut and right-hand flute for standard milling machine setups
• Uncoated finish suitable for use with cutting fluids in a wide range of materials

Compatibility

Designed as an OEM-style replacement or direct-use end mill for 3/8 inch collet or end mill holder setups on standard vertical milling machines and CNC machining centers requiring a 19/64 inch diameter square end mill.

Installation Notes

Installation should be performed by a qualified machinist or toolroom professional. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully into the collet or end mill holder and torque the retention hardware according to the machine manufacturer's specifications. Inspect the cutting edges for chips or wear before use, and confirm proper tool runout with a dial indicator when precision tolerances are required.
