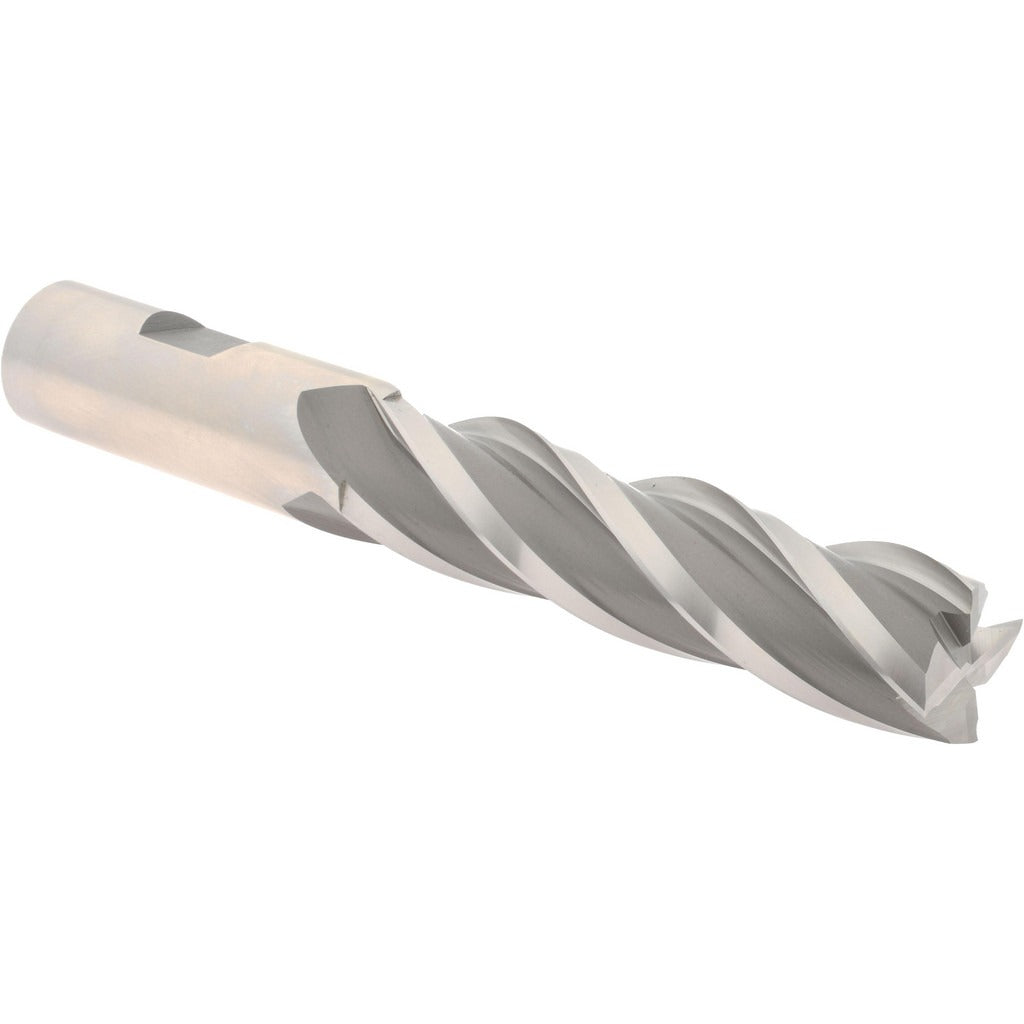

Hertel E2040048 Square End Mill 3/4 in 4 Flute Cobalt

Product Description

The HERTEL E2040048 is a square-end, single-end cobalt end mill designed for milling ferrous and difficult-to-machine materials in machining centers and manual mills. Built from M42 cobalt high-speed steel, it handles heat and abrasion better than standard M2 tooling. The 3/4-inch cutting diameter pairs with a 3-inch length of cut, making this a long-series tool suited for reaching deep pockets and slots. Four spiral flutes with a 30-degree helix angle provide efficient chip evacuation and a smooth cutting action. Center-cutting geometry allows direct plunging without a pilot hole. The tool arrives uncoated and is ready to run with standard HSS cutting parameters.

This end mill is used in job shops, tool rooms, and production environments where slotting, profiling, and peripheral milling of steel, stainless, and high-temperature alloys are common operations. The long length of cut is especially useful when workpiece depth or fixture clearance demands reach beyond what standard-length tooling can achieve. A 3/4-inch straight shank fits standard ER, Weldon, and end mill holders sized for that shank diameter.

Key Features

• M42 cobalt HSS construction for improved red hardness and wear resistance over standard M2 tooling
• 3-inch length of cut for deep pocket and slot applications
• 30-degree helix angle spiral flutes for efficient chip evacuation
• Center-cutting design allows direct plunge entry without pre-drilling
• Right-hand cut, right-hand flute configuration for conventional milling machine spindles
• Uncoated finish suitable for use with cutting fluids on a wide range of ferrous materials

Compatibility

Designed as a standard long-series square end mill for use in 3/4-inch end mill holders, ER collet chucks, and Weldon-style holders on vertical machining centers and manual knee mills.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Confirm the holder bore and set screw or collet are clean and free of chips before seating the shank. Verify runout with a dial indicator after clamping, particularly for long-series tools where deflection is a greater concern at depth.
