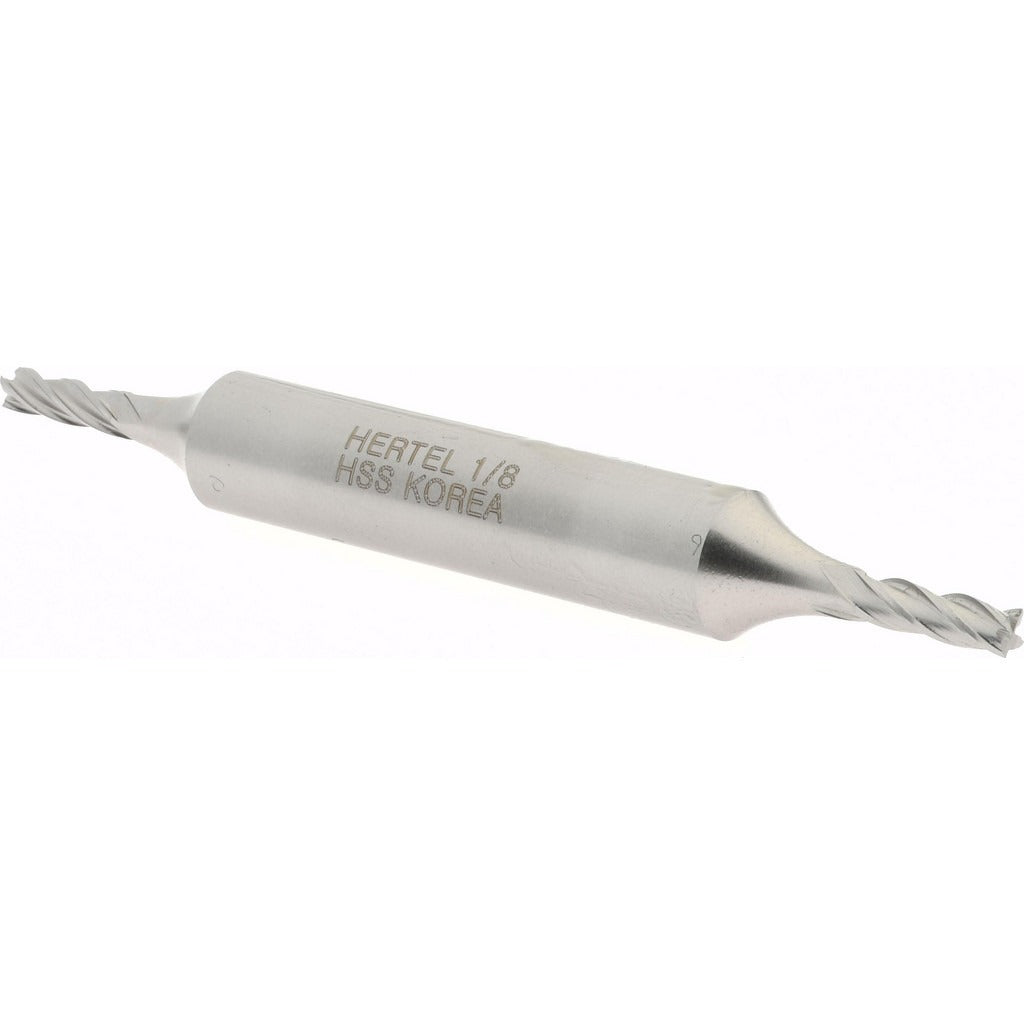

Hertel E1053008 Square End Mill 1/8 in 4 Flute Hss

Product Description

The HERTEL E1053008 is a double-end square end mill designed for precision milling operations in metal, plastics, and composite materials. Built from M7 high speed steel, this uncoated tool features 4 spiral flutes with a 30-degree helix angle and a center-cutting geometry that allows plunge cutting as well as conventional side and slot milling. The 1/8 inch cutting diameter and 3/8 inch length of cut make it well suited for fine detail work, narrow slots, and profiling in die and mold applications. At 0.05 pounds, the tool is lightweight and fits standard collet and milling chuck setups with a 3/8 inch shank.

This end mill is intended for use in manual milling machines, CNC machining centers, and toolroom mills. Its double-end configuration extends tool life by providing two usable cutting ends before replacement. The right-hand cut and right-hand flute direction are standard for conventional milling spindle rotation. Typical applications include slotting, profiling, and pocket milling in ferrous and non-ferrous metals. Machinists, tool and die makers, and CNC operators working in job shops, maintenance environments, and production settings are the primary users of this tooling.

Key Features

• Double-end design provides two cutting ends, extending usable tool life
• Center-cutting flute geometry allows direct plunge entry into workpiece material
• M7 high speed steel construction offers toughness and wear resistance in general-purpose milling
• 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces
• Spiral flute configuration with right-hand cut and right-hand flute direction for standard spindle use
• Uncoated finish suitable for regrinding and use with cutting fluids

Compatibility

Designed as a standard replacement or stock tooling option for any milling setup requiring a 3/8 inch shank, 1/8 inch diameter square end mill. Compatible with ER collets, end mill holders, and milling chucks sized for 3/8 inch shanks.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the machine powered down and the spindle locked before tool changes. Ensure the shank is fully seated and properly torqued in the tool holder according to the holder manufacturer's specifications. Inspect the collet or chuck for wear before seating the tool, as worn holding devices accelerate runout and reduce tool life. Follow applicable shop safety protocols and machine guarding requirements during setup and operation.
