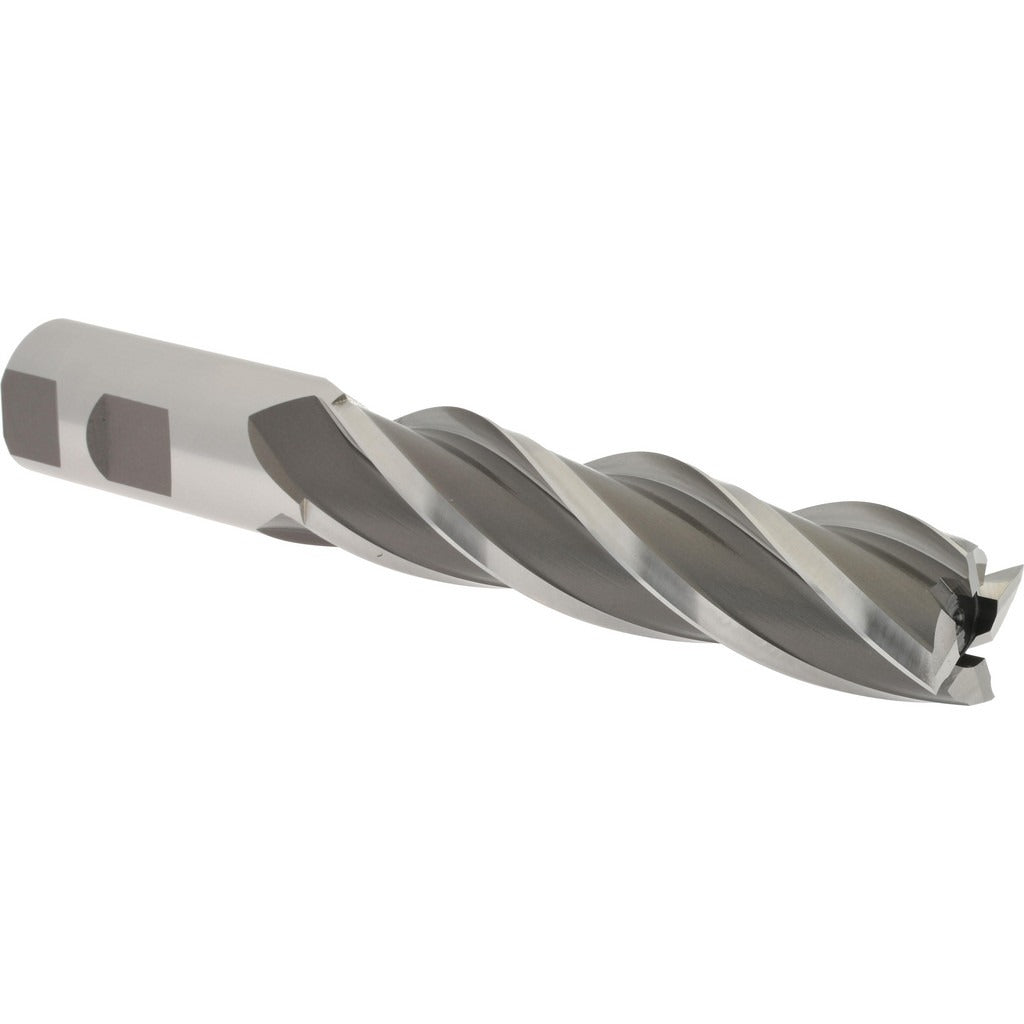

Hertel E1034064 Square End Mill 1 in 4 Flute Hss Long

Product Description

The HERTEL E1034064 is a single-end, square-profile end mill designed for milling operations in ferrous and non-ferrous metals. Built from M7 high speed steel, it delivers reliable wear resistance in conventional milling setups where coated or carbide tooling is not required. The cutter runs a 1-inch mill diameter with a 4-inch length of cut and a 30-degree helix angle on spiral flutes. At 6.5 inches overall length, this is a long-length configuration suited for reaching into deep pockets and slots. Four flutes provide a balance of chip clearance and surface contact. The shank diameter matches the mill diameter at 1 inch, making it compatible with standard ER and end mill holders in that bore size.

This end mill is used in vertical machining centers, knee mills, and manual bridgeport-style machines for slotting, profiling, and peripheral milling. The long length of cut makes it suitable for deep side-wall finishing and deep slot milling where a standard-length end mill cannot reach. Right-hand cut and right-hand flute geometry is the standard orientation for conventional machine setups. This tool is not center-cutting, so plunge milling is not an application for this part. It is installed and used by machinists, tool and die makers, and maintenance machining personnel.

Key Features

• M7 high speed steel construction for toughness in interrupted cuts and general-purpose milling
• 4-inch length of cut for deep pocket and deep slot applications
• 30-degree helix angle on spiral flutes for smooth chip evacuation
• 4-flute configuration balances material removal rate and surface finish
• Uncoated finish suitable for use with cutting fluid in ferrous and non-ferrous materials
• Long-length designation extends reach beyond standard end mill configurations

Compatibility

Designed as a direct-fit replacement for 1-inch bore end mill holders, collet chucks, and side-lock holders used in standard vertical and horizontal machining centers.

Installation Notes

Installation is performed by a machinist or machine operator. De-energize and lock out the machine spindle before changing tooling. Seat the shank fully into the holder to the recommended minimum engagement depth before tightening. Verify runout with a dial indicator after installation and before cutting, particularly given the long length of cut on this tool.
