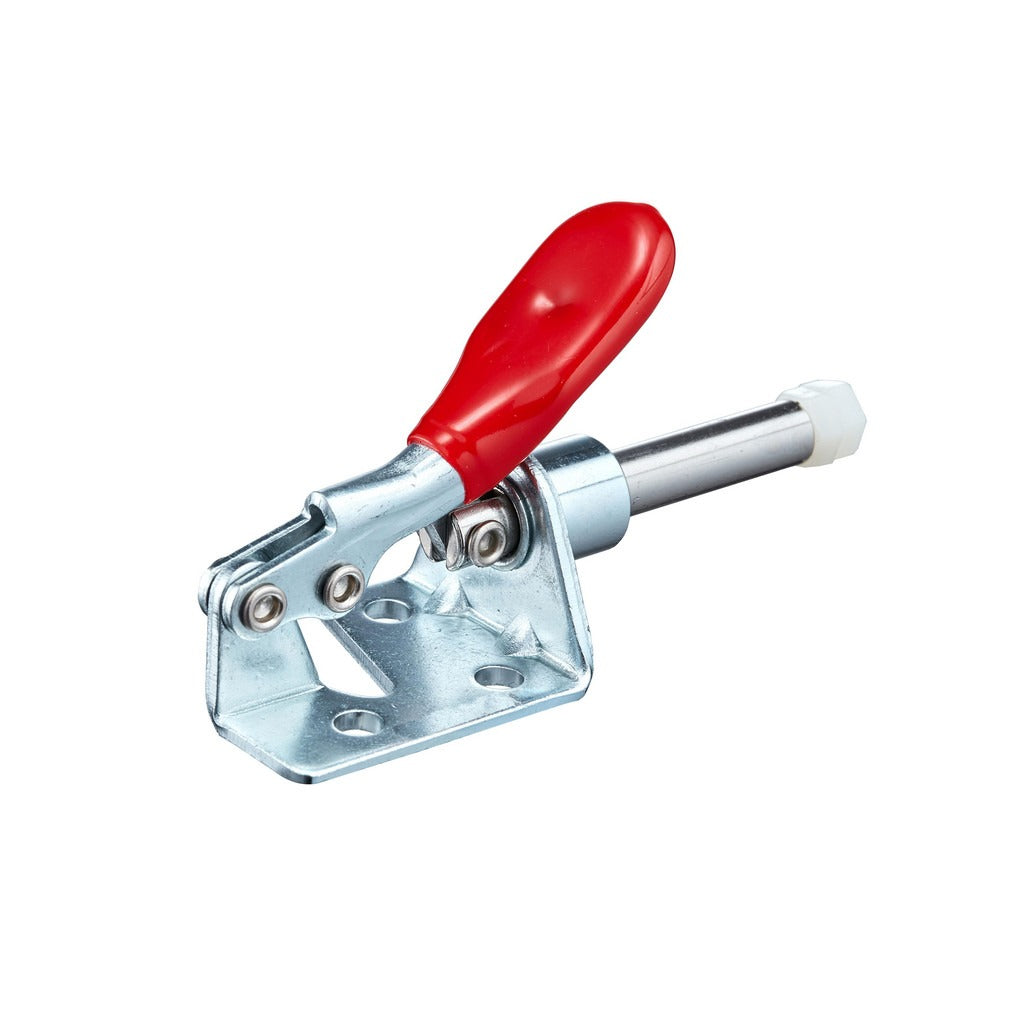

Hertel CH-301-A Straight Line Action Clamp 100 Lb Steel

Product Description

The HERTEL CH-301-A is a standard straight line action clamp designed for workholding and fixturing applications in machining, fabrication, and assembly environments. It delivers 100 lb (444.82 N) of holding capacity through a linear plunger action with 0.6575 inches of travel. The plunger diameter is 0.252 inches with internal M4 thread and a round profile. The clamp body is steel with a zinc finish coating and features a straight red handle with 180 degrees of handle movement. It ships with one spindle and two nuts. Typically installed by machinists, tool and die technicians, and fixturing specialists, this clamp suits production environments where repeatable clamping force and compact footprint are required.

The CH-301-A fits applications requiring a flanged base mount in tight fixture layouts. The flanged base includes three mounting holes at 0.172 inches diameter, with hole spacing of 0.625 inches on the length axis and 0.626 inches on the width axis. The base measures 1.311 inches in length and 1.063 inches in width. Overall clamp dimensions are 2.679 inches in length, 1.59 inches in height, and the plunger centerline height is 0.5 inches. The spindle length is 0.748 inches. This clamp is suited for light-duty toggle and straight-pull clamping setups on jigs, fixtures, and machining pallets.

Key Features

• 100 lb (444.82 N) rated holding capacity for light-duty workholding
• 0.6575 inches plunger travel with round, internally threaded M4 plunger
• Flanged base with 3 mounting holes for secure fixture integration
• Steel construction with zinc finish coating for corrosion resistance
• Straight red handle with 180-degree operating arc
• Includes spindle and two nuts — ready to mount out of the box

Compatibility

Designed as a standard straight line action clamp suitable for use in jigs, fixtures, and workholding setups requiring a flanged base mount and 100 lb clamping capacity.

Installation Notes

Installation is performed by machinists or fixturing technicians using standard hand tools. Mount the flanged base securely through all three mounting holes before applying clamping loads. Verify that the fixture surface is flat and that mounting fasteners are fully seated before cycling the clamp under load. Do not exceed the rated 100 lb holding capacity.
