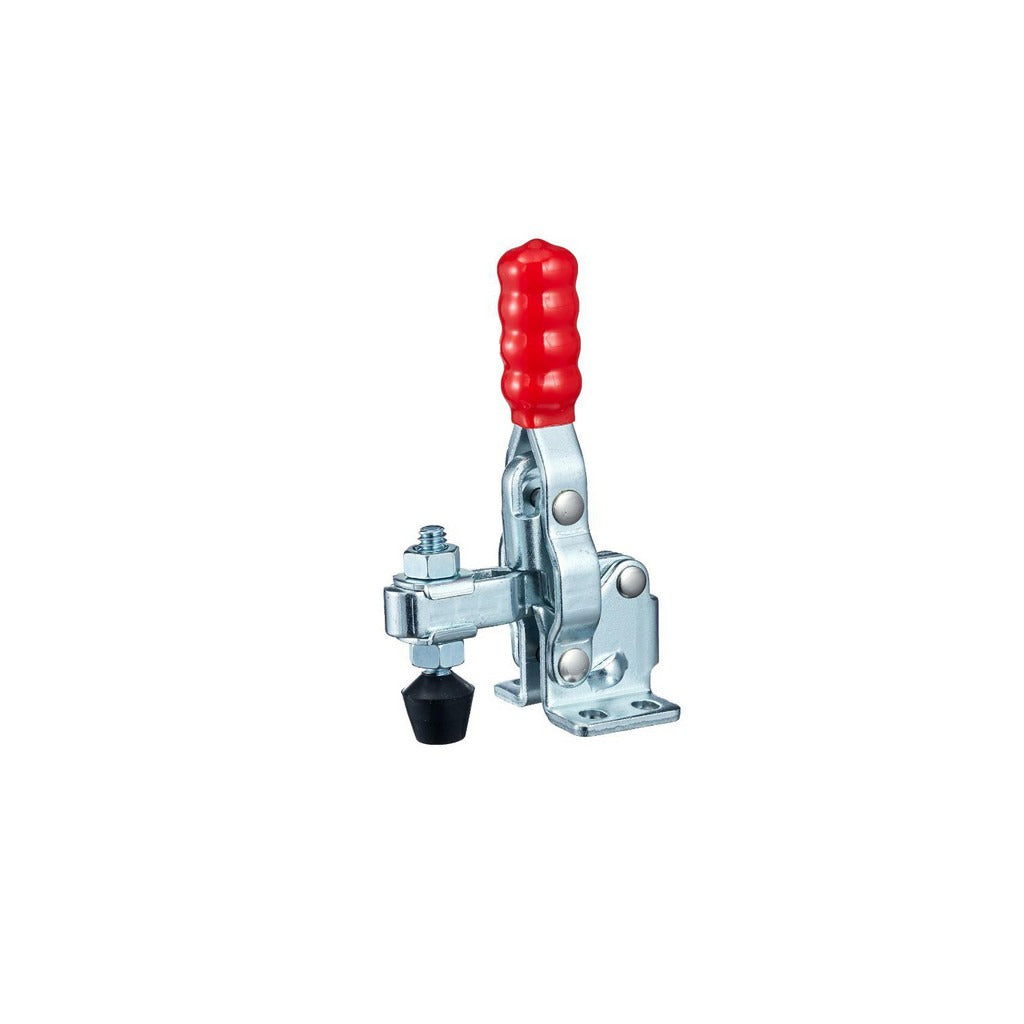

Hertel CH-12050-U Toggle Clamp Vertical 200 Lb U-bar

Product Description

The HERTEL CH-12050-U is a manual hold-down toggle clamp designed for vertical clamping applications in workholding, fixturing, and fabrication setups. It features a U-bar with a closed bar end and a flanged base for secure, repeatable mounting. The clamp delivers a 200 lb holding capacity and is built from steel with a zinc finish coating for corrosion resistance. The straight red handle moves through a 60-degree arc to lock the bar in place, while the bar itself opens to a 100-degree position for fast part loading and unloading. Licensed tradespeople and machinists use this clamp for jigs, fixtures, and assembly benches.

This clamp is suited for light-duty industrial and woodworking workholding applications where a compact vertical hold-down is needed. The flanged base allows four-point mounting to tables, fixtures, or custom jig plates. The U-bar style accommodates workpieces of varying thickness. At 0.894 inches of clearance under the bar, it is appropriate for clamping flat or low-profile stock. It ships with one spindle, two nuts, and two washers, making it ready for immediate installation without additional hardware.

Key Features

• 200 lb holding capacity for reliable workholding in production and prototype fixtures
• Vertical handle orientation with 60-degree handle movement for quick engage and release
• 100-degree bar opening allows unobstructed part loading
• Flanged base with four mounting holes for stable, vibration-resistant attachment
• Steel construction with zinc finish coating for durability in shop environments
• Includes spindle, two nuts, and two washers — no additional hardware required

Compatibility

Designed as a standard vertical hold-down toggle clamp for general workholding fixtures, jig tables, and fabrication setups requiring a compact flanged-base U-bar clamp.

Installation Notes

Installation is typically performed by machinists, toolmakers, or fixture builders using standard hand tools. Secure the flanged base through all four mounting holes using fasteners appropriate for the fixture material and load requirements. Verify that the spindle height is adjusted so the clamp locks over-center with firm contact on the workpiece before tightening the locking nuts. Always confirm the clamp is fully engaged over-center before applying machining or assembly loads.
