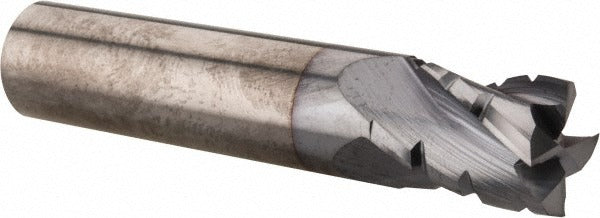

Hertel C430S5000-C4 Roughing End Mill 1/2 in 4 Flute

Product Description

The HERTEL C430S5000-C4 is a single-end roughing end mill engineered for aggressive material removal in milling applications. Built from micrograin solid carbide and coated with TiCN (Titanium Carbonitride), it delivers the hardness and wear resistance required for production environments. The chipbreaker geometry along the flutes breaks chips into smaller segments, reducing heat buildup and cutting forces during heavy passes. At 0.5 inches in diameter with a 0.625-inch length of cut and 2.5-inch overall length, this tool fits standard toolholders and suits a wide range of roughing operations on machining centers and manual mills. Installation and use are performed by machinists and CNC operators.

This end mill is suited for roughing cuts on ferrous and non-ferrous metals where chip evacuation and tool life are the primary concerns. The TiCN coating improves surface hardness and reduces friction compared to uncoated carbide, making it effective in steels, stainless, and cast iron. The right-hand cut and right-hand flute direction are the standard configuration for the majority of vertical and horizontal milling setups. The regular-length shank simplifies setup in standard ER collets, end mill holders, and Weldon-style toolholders.

Key Features

• Micrograin solid carbide substrate for improved toughness and edge retention
• TiCN coating for enhanced wear resistance and reduced cutting friction
• Chipbreaker flute geometry reduces chip load and heat in roughing passes
• Center-cutting design allows plunge entry without a pre-drilled pilot hole
• Right-hand cut and right-hand helix for standard spindle compatibility
• Shank diameter tolerance of +0.0001 to -0.0004 inches for consistent toolholder fit

Compatibility

Designed as an OEM-style single-end roughing end mill compatible with standard 1/2-inch end mill holders, ER collet chucks, and Weldon-style toolholders used on vertical and horizontal milling machines.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Power down and lock out the spindle before changing tooling. Confirm toolholder runout and proper clamping torque per the toolholder manufacturer specifications before beginning cuts. Inspect the cutting edges for chips or wear before each use; carbide end mills are brittle and should not be used if edge damage is visible.
