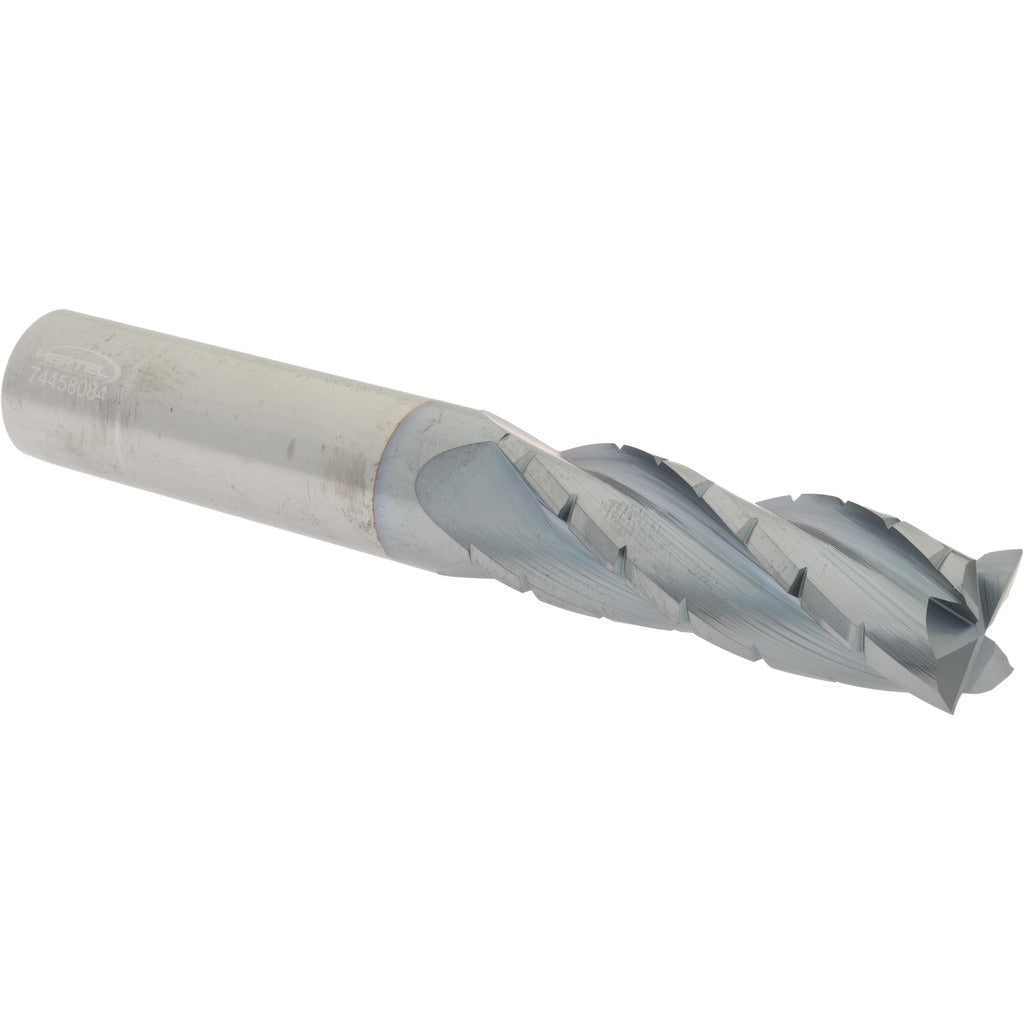

Hertel C430L7500-C4 Roughing End Mill 3/4 in 4 Flute Ticn

Product Description

The HERTEL C430L7500-C4 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from micrograin solid carbide and coated with TiCN, this tool delivers hardness and heat resistance suited to ferrous and non-ferrous machining. The 3/4-inch diameter body features four right-hand flutes with a chipbreaker geometry that breaks chips into shorter segments, reducing recutting and heat buildup. With a 2.25-inch length of cut and a 5-inch overall length, it handles standard roughing passes in vertical and horizontal milling machines and machining centers. Installed by machinists and CNC operators working in production and job-shop environments.

This end mill is suited for roughing applications in milling operations where high material removal rates are required before finish passes. The TiCN coating improves wear resistance and reduces friction at the cutting edge. Center-cutting capability allows plunge entry into the workpiece. The right-hand cutting and flute direction makes it compatible with conventional right-hand spindle setups. The regular-length shank and 3/4-inch shank diameter fit standard ER and side-lock toolholders used across most machining centers and manual mills.

Key Features

• Micrograin solid carbide construction for hardness and edge retention
• TiCN coating for improved wear resistance and reduced friction
• Chipbreaker geometry reduces recutting and lowers cutting forces during roughing
• Center-cutting design allows direct plunge entry
• Right-hand cut and right-hand flute direction for standard spindle compatibility
• Shank diameter tolerance of +0.0001 to -0.0004 inches ensures consistent toolholder fit

Compatibility

Designed as an OEM-style roughing end mill for use in standard 3/4-inch toolholders on vertical and horizontal milling machines and CNC machining centers with right-hand spindle rotation.

Installation Notes

Installation is performed by a qualified machinist or CNC operator. Power down and de-energize the machine spindle before inserting or removing the tool. Seat the shank fully into the toolholder and torque the retention mechanism to the toolholder manufacturer specification. Inspect the cutting edges and chipbreaker geometry for chips or damage before each use.
